20Khz Ultrasonic Metal Welding Machine for Metal Harness Welding

Share to:

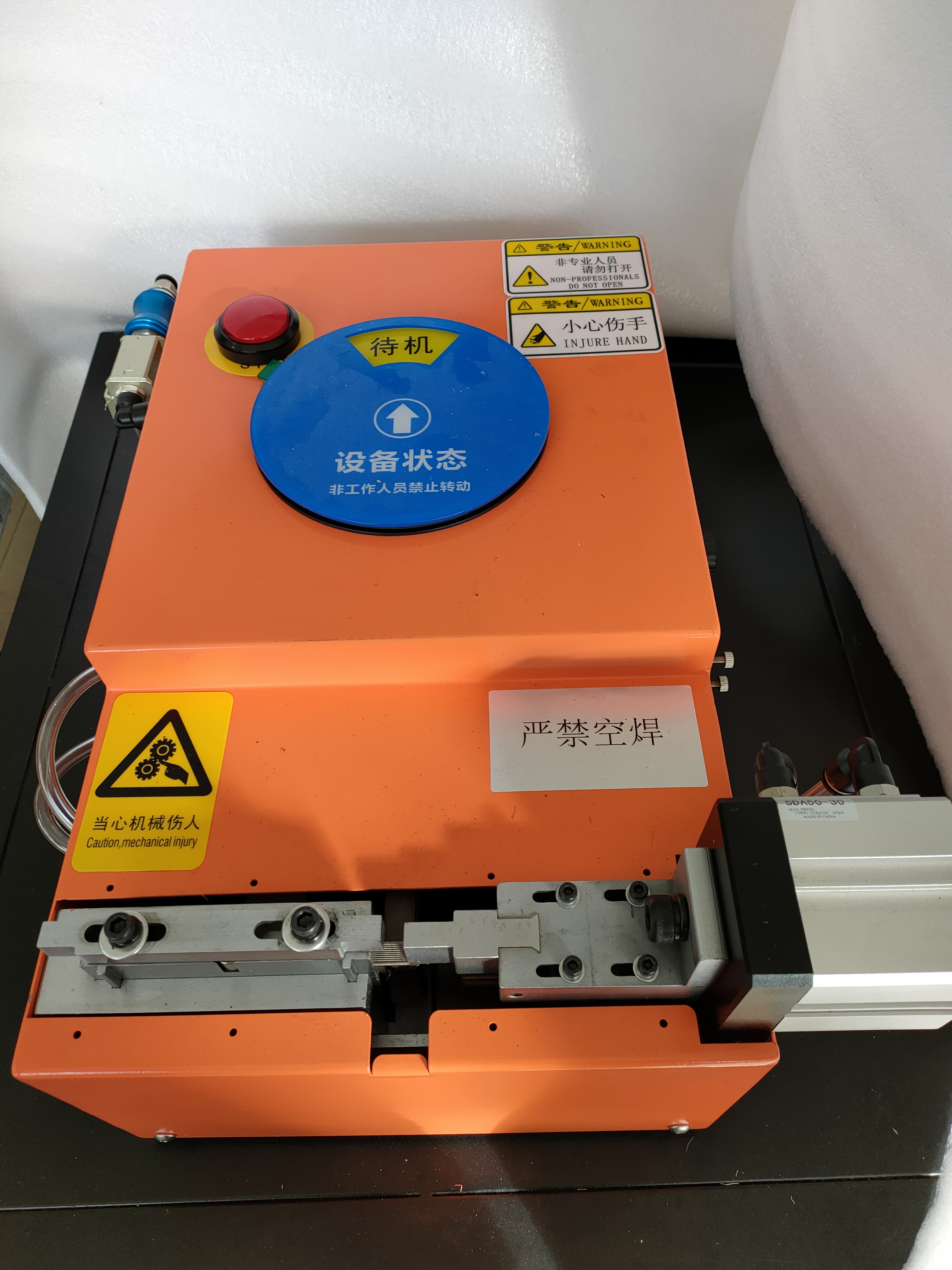

20Khz Ultrasonic Metal Welding Machine for Metal Harness Welding

The Ultrasonic Metal Welding Machine Σ1000M Series is a complete ultrasonic welding device that integrates ultrasonic digital generators and controllers with ultrasonic welding presses. The Σ1000M series has a variety of welding modes to meet customers' more stringent welding requirements.

Frequency:	35Khz 40Khz
Power:	1000W 800W
weight :	45KG
Application :	Metal welding
Size:	699mm×452mm×530.5mm
Availability:

Quantity:



Inquire Add to Basket

Model:
1000M
Brand:
Rps-sonic
Code:
1000M

20Khz Ultrasonic Metal Welding Machine for Metal Harness Welding

Introduction:

Ultrasonic welding machine with modes of time model and engry model, it can automatically track and display real-time frequency, with amplitude stepping function, welding amplitude range up to 10-100(1%accuracy). There is also amplitude compensation; welding quality management (time,energy mutual detection), including clear traceable welding records (operation statistics) to control your welding quality in real time. It also features transducer overload protection, mold impedance analysis and protection to protect your equipment. Powerful, high quality and high welding stability.

Welded materials are placed above each other on a suitable support plate, that they touch at required welding place. On the ultrasonic generator could be set required parameters of joint as the welding time, output power or overall output. Welding device is activated by the manual switches or by footswitch. After the switch is switching, the pneumatic tool is pressed welding tool (sonotrode) to the top welding part. With intensive ultrasound from the welding tool come to meltingdown and after that to joint of plastic material where they touch. Weld time is determined by switching time switch or set the weld time using the timer control, whichever is less. After joint is complete, the sonotrode for the short time press welding materials together to achieve the required joint strength. Then the sonotrode will return to the resting position. Because of the large number of existing plastic materials and their shapes is neccessary tested suitability of usage ultrasonic welding tool for concrete aplication. When thinner materials is welded in addition to set duration of weld, may also be needed to reduce output power of ultrasonic generator.

Advantages:

*Full range of modular design
*High-strength rigid structure
*Digital ultrasonic generator
*Maximum pressure 1000N

Advanced Control Machine

*4.3 inch color touch screen.
*Chinese and English use interface.
*Germany designed digital ultrasonic generator, which can accurately adjust and stabilize various parameters, can safely protect the control box.
*Electronic pressure measuring device.
*Precision electronic ruler for welding depth control with accuracy of +0.01mm.
*4 different trigger modes.
*5 different welding modes (time, energy, maximum power, relative position, absolute position welding mode).
*Welding parameter data storage.
*Ultrasonic amplitude adjustment 50%-100%.
*Ultrasonic frequency automatic tracking.
*Quality management function.
*Printer output function (optional).

Technical Parameters

1000M	20Khz
Power	1000W~6000w
Pressure	1000N
Power Input	1000W/5A AC 220V +10% 50/60Hz
Electric Box Size	420mm×211mm×185mm
Electric Box Weight	10KG
Machine Size	500LX400WX230H
Machine Weight	52KG
Welding area	0.3MM2-10MM2
