SS304 Frame Ultrasonic Food Cutting Machine with Conveyor Belt for Protein Bars

frequency:
power:
blade:
Cutting speed:
cutting shape:
Availability:
Quantity:
SS304 Frame Ultrasonic Food Cutting Machine with Conveyor Belt for Protein Bars
SS304 Frame Ultrasonic Food Cutting Machine with Conveyor Belt for Protein Bars
SS304 Frame Ultrasonic Food Cutting Machine with Conveyor Belt for Protein Bars
SS304 Frame Ultrasonic Food Cutting Machine with Conveyor Belt for Protein Bars
SS304 Frame Ultrasonic Food Cutting Machine with Conveyor Belt for Protein Bars
SS304 Frame Ultrasonic Food Cutting Machine with Conveyor Belt for Protein Bars
  • RPS-SSAC20

  • RPS-SONIC

SS304 Frame Ultrasonic Food Cutting Machine with Conveyor Belt for Protein Bars



Description

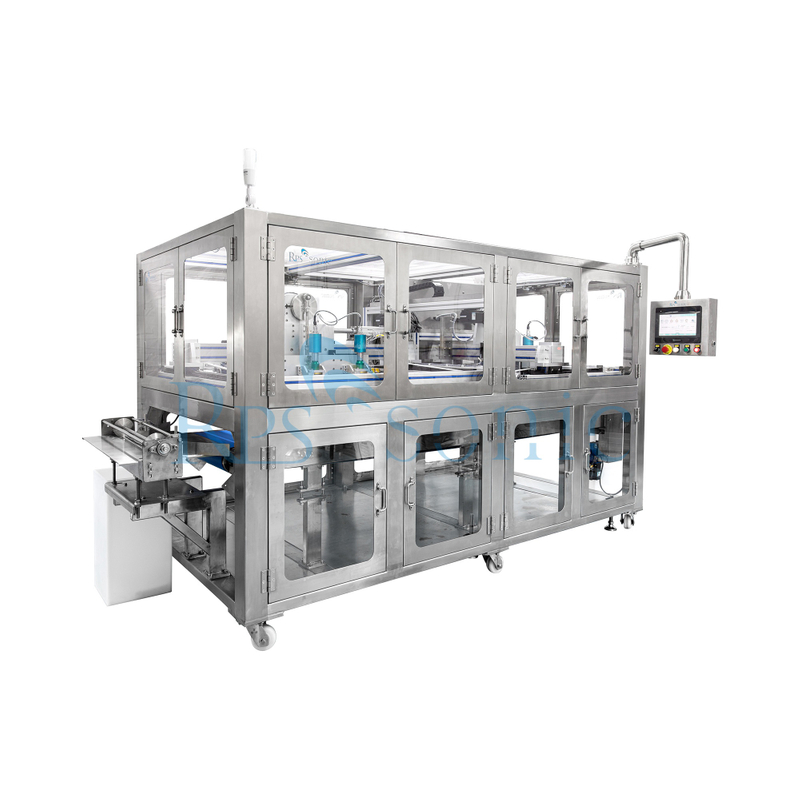

RPS-SSAC20 is integrated with a conveyor system to perform both strip cutting and cross-cutting. Constructed from robust SS304, the machine frame ensures long term service life, whereas the conveyor belt is manufactured from hygienic grade SS316 . The cutting station is servo motor driven to achieve high precision cutting in strict accordance with pre-configured recipes, and clean edges under ultrasonic cutting. Fitted with a user-oriented HMI panel, the machine enables intuitive operation and convenient parameter adjustment.


One-touch power control, electric components sourced from world-leading international brands, and an extra-large touch screen enable visualized operation of all functions.

Equipped with ample storage capacity, the unit is capable of saving multiple sets of operation paths. It features simple operation and high-level safety performance. RPS-SONIC is available for customized equipment solutions tailored to your specific requirements.

Key Features

The system is equipped with a high-performance ultrasonic generator and titanium alloy cutting blades that vibrate at ultrasonic frequency for frictionless slicing. The conveyor belt is food-grade, durable, and designed for stable product transport during continuous cutting.

It offers programmable cutting patterns, adjustable slicing speed, and customizable portion sizes to meet different production requirements. The machine is constructed with stainless steel (SUS304/316 optional), ensuring compliance with strict food hygiene standards.

A user-friendly control system with PLC and touchscreen interface allows easy operation, real-time monitoring, and quick parameter adjustments.

-Independently developed multi-axis control system

-Fully automated product positioning

-Equipped with friendly human-machine interface


7U0A4271 拷贝(1)


-Comes with infrared sensor protection device to ensure operator safety

-Automatic frequency tracking, real-time tracking of ultrasonic cutting knife frequency

-Voltage: 220V 50-60 Hz

-Effective cutting height: 0-70mm


Parameters


参数111


Applications

This machine is widely used in the food processing industry, including:

  • Bakery Products: cakes, sponge cakes, mousse cakes, cheesecakes, Swiss rolls

  • Frozen Desserts: frozen cakes, ice cream bars, layered frozen desserts

  • Confectionery: brownies, nougat, protein bars, energy bars

  • Dairy Products: cheese blocks, processed cheese, layered dairy snacks

  • Other Food Products: soft or sticky layered food items requiring precise portioning



Advantage

● 1. Non-Pollution, with no smoke, odor, or flying debris produced during cutting, eliminating dust and air pollution during cutting;

● 2. Reduce waste, as it does not crush or damage your products during cutting, reducing waste;

●3. Ensure neat, smooth, and non-deformed incisions, enhancing the appearance and value of the product. (Providing a good cutting surface);

4. Reduce stop time, as the blades do not need to be cleaned frequently when cutting sticky products;

●5. The blade is made of durable titanium material;

●6. Reduce cutting resistance, cutting fastert.


7U0A4296 拷贝(1)   7U0A4305 拷贝(1)
