RPS-AT120
Rps-sonic
RPS-UA120

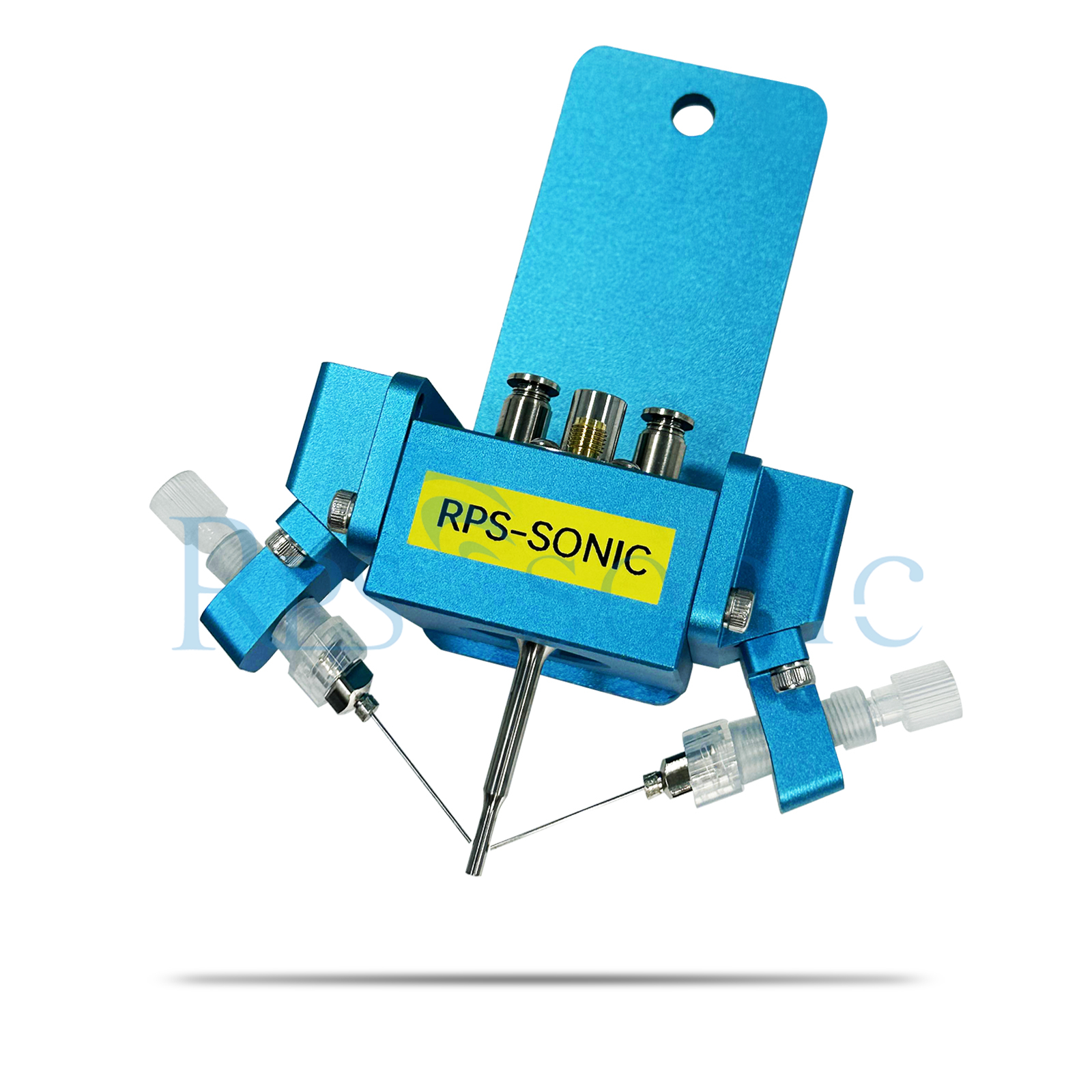

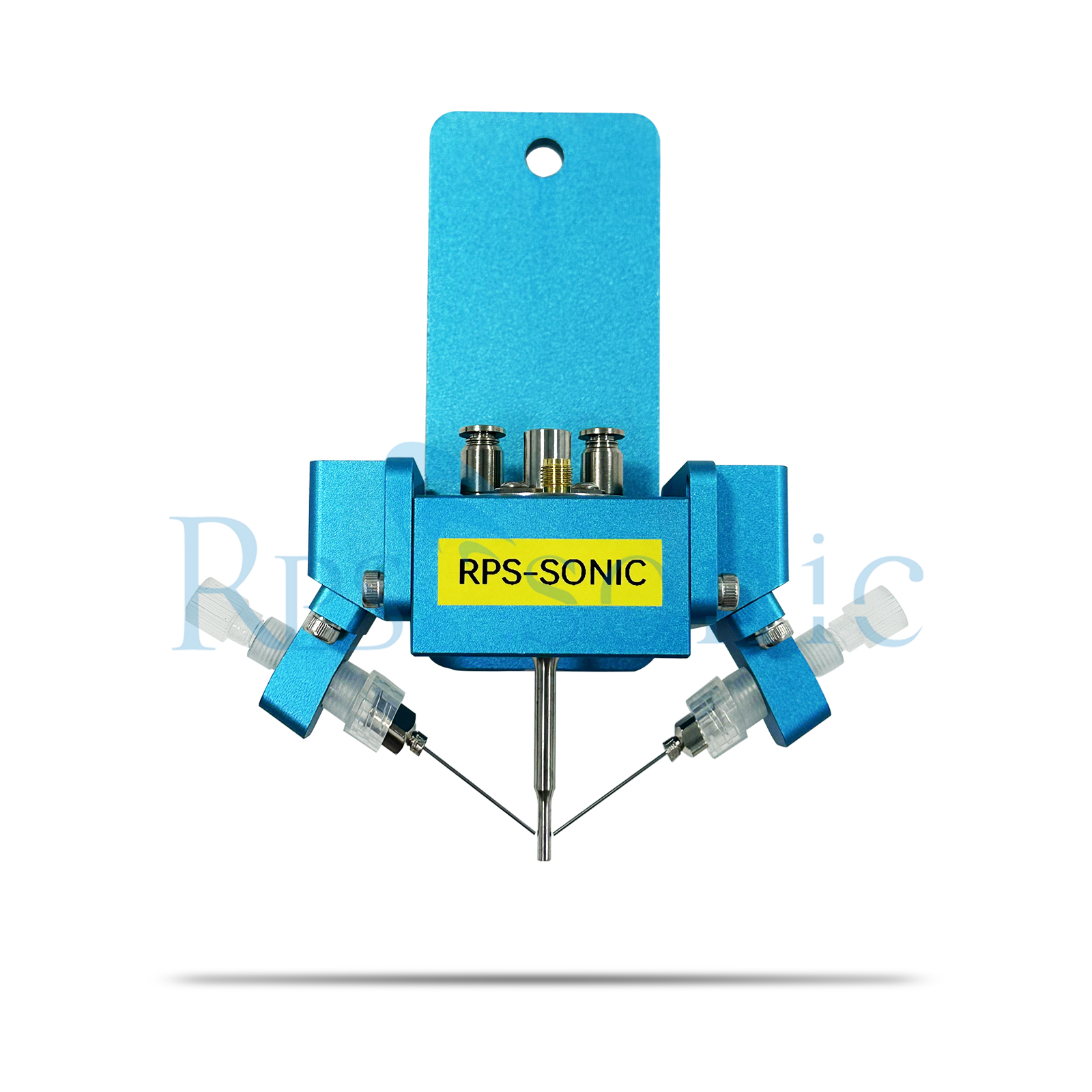

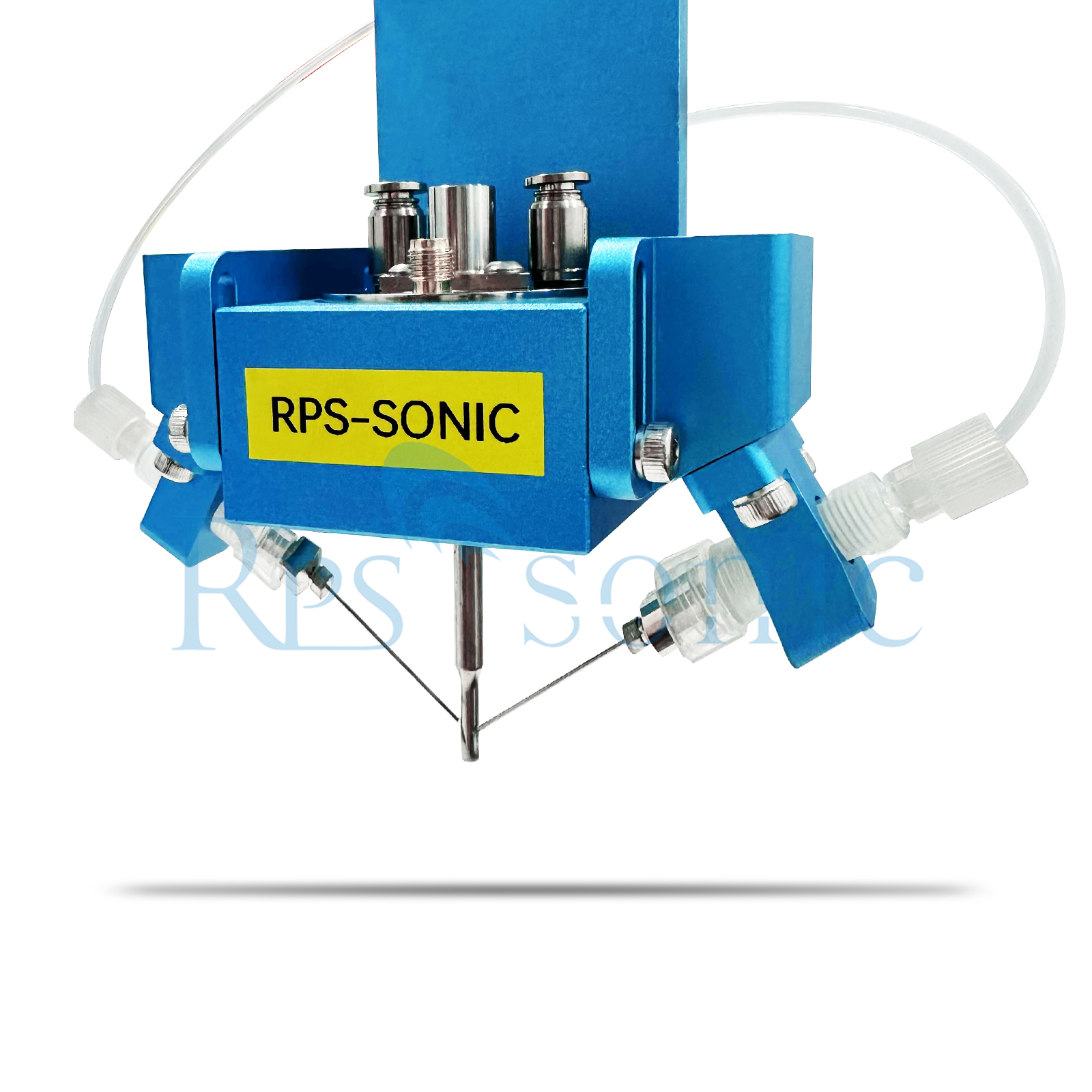

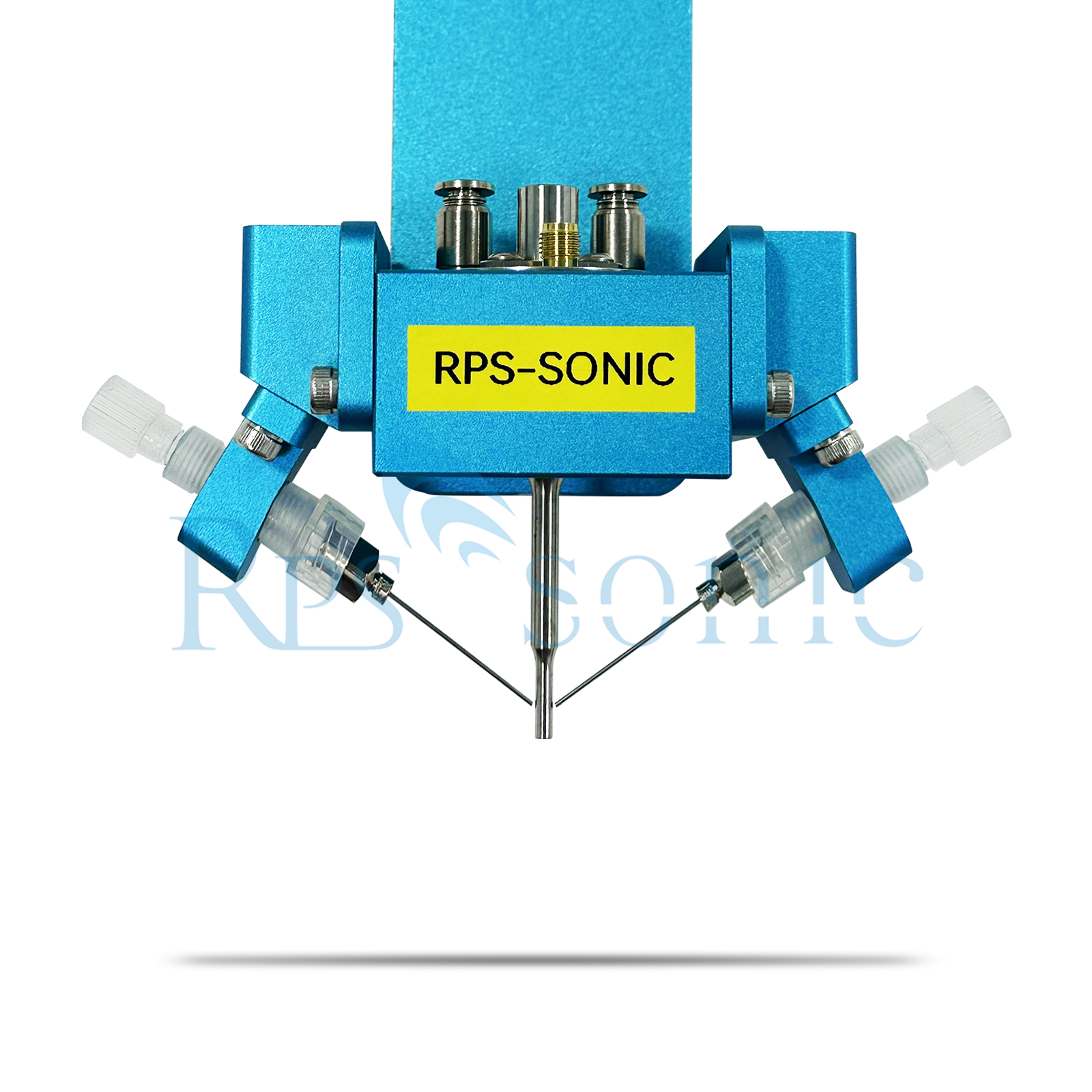

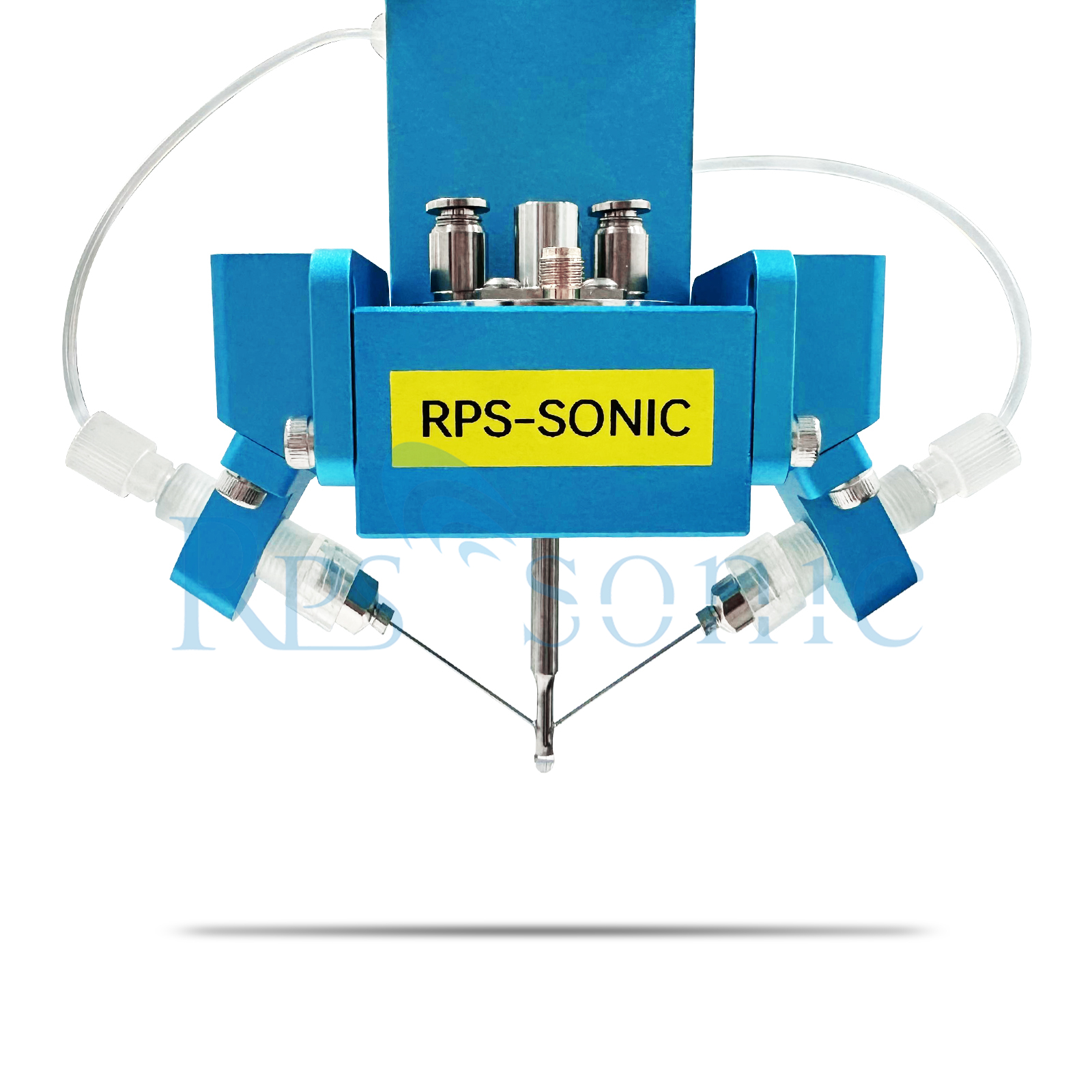

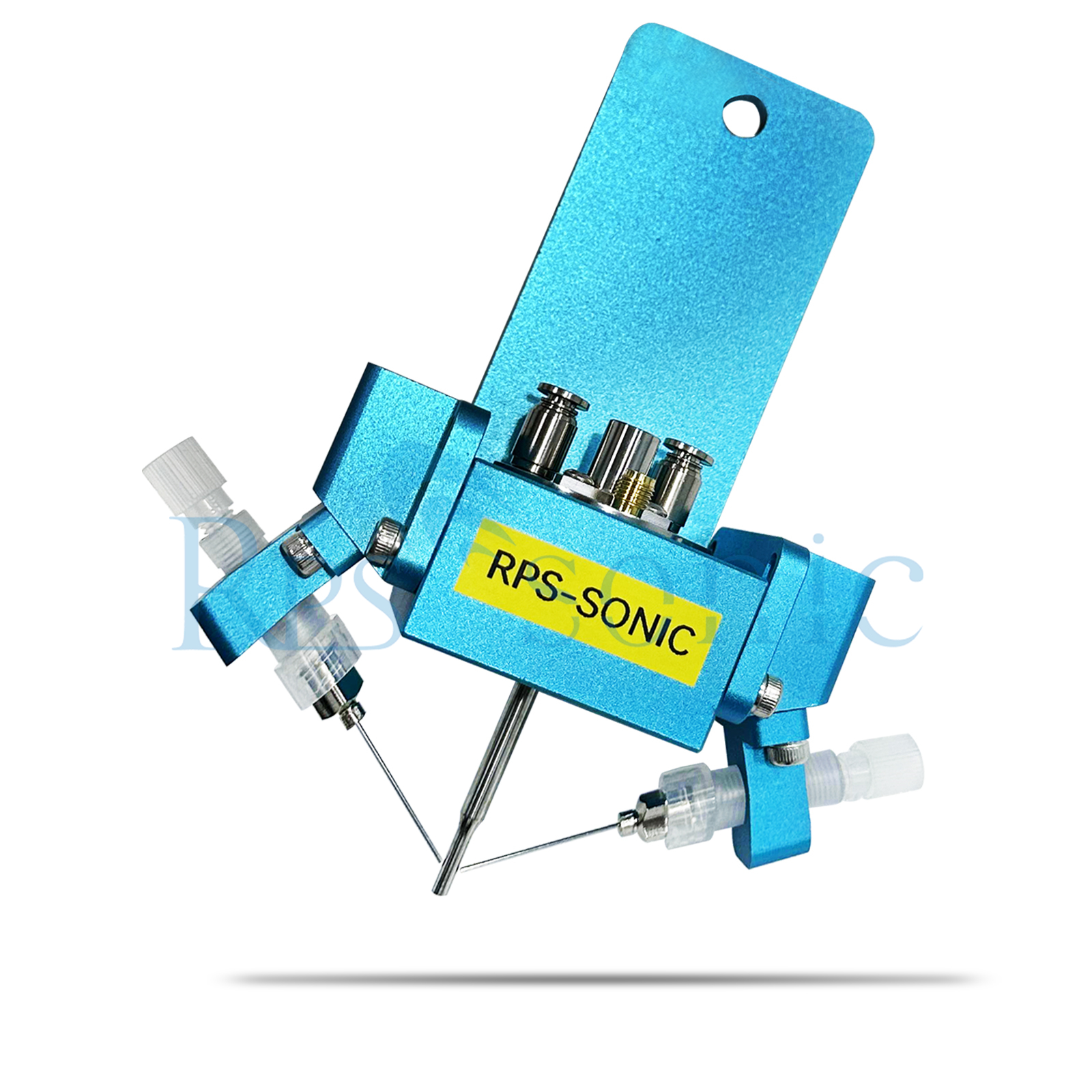

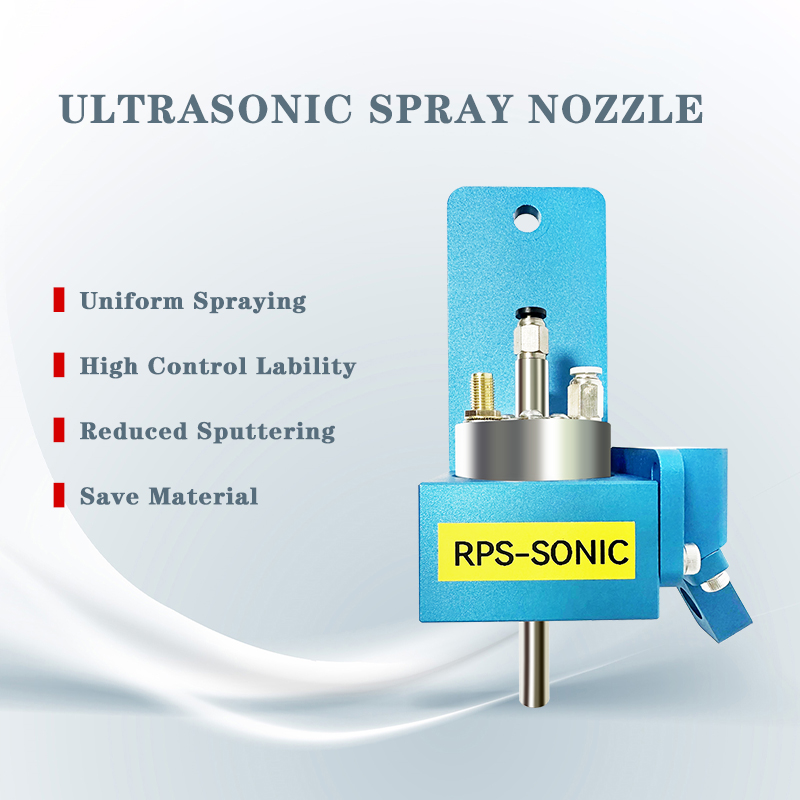

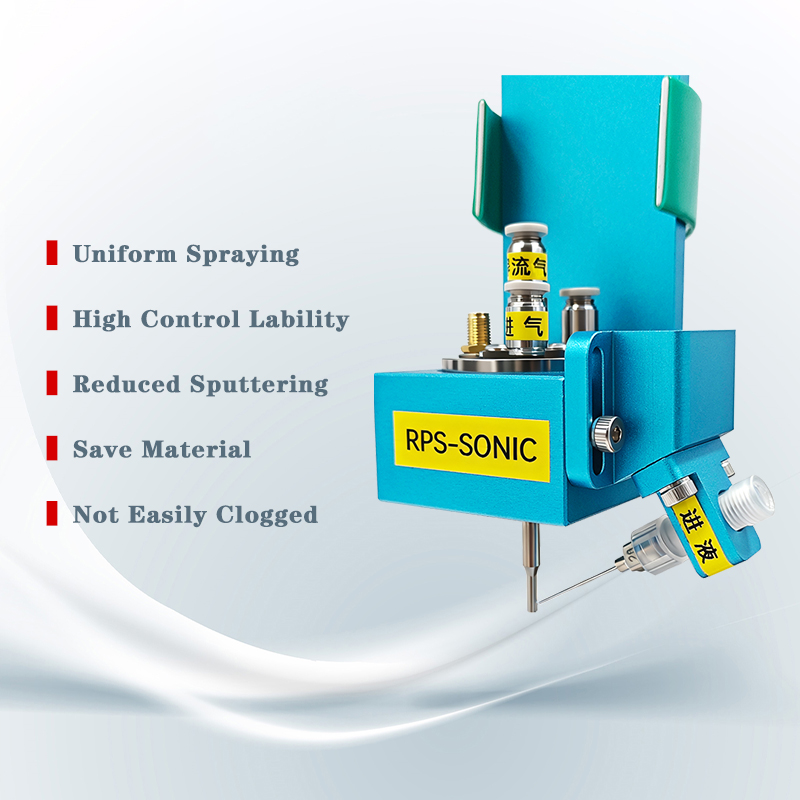

High Precision 120khz Ultrasonic Spraying Nozzle Coating Machine for Metal Nanoparticles
Description
The High Precision 120kHz Ultrasonic Spraying Nozzle Coating Machine is an advanced nano-atomization system designed for ultra-fine and highly uniform coating of metal nanoparticle suspensions. Operating at an ultra-high frequency of 120kHz, the system generates extremely fine droplets at the nano-scale, enabling precise deposition of functional materials with exceptional uniformity and surface control.
Unlike conventional air-spray or low-frequency ultrasonic systems, this technology produces a much narrower droplet size distribution and significantly reduces overspray, making it ideal for high-value metal nanoparticle applications where coating accuracy and material efficiency are critical.
It is widely used in advanced electronics, energy materials, thin-film deposition, and precision functional coatings.

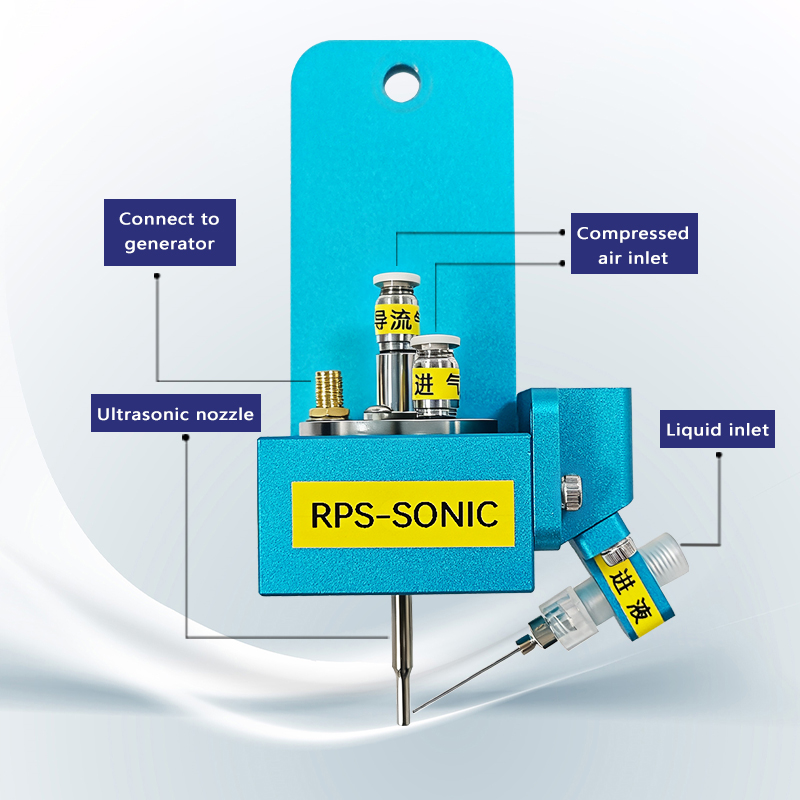

The system is equipped with a 120kHz ultra-high-frequency ultrasonic atomizing nozzle, enabling ultra-stable nano-droplet generation with extremely fine particle size control.
A key advantage is its ability to achieve true nano-level atomization, making it especially suitable for metal nanoparticle suspensions such as silver, copper, gold, and conductive inks used in high-end electronic applications.
Compared with traditional 20–60kHz systems, the 120kHz design provides smaller droplet size, higher coating uniformity, and significantly improved film smoothness, reducing defects in thin-film formation.
The low-pressure, non-contact spraying process eliminates nozzle clogging issues common in high-solid-content nanoparticle fluids, ensuring stable long-term operation.
The system supports precise control of flow rate, spray width, and ultrasonic energy output, allowing accurate adjustment for ultra-thin and high-precision coating requirements.
Its modular structure allows easy integration into automated production lines, laboratory research platforms, and pilot-scale manufacturing systems.
Parameter:
| Item | Parameter |
| Frequency | 120Khz |
| Power | 10~100w |
| FLOW RATE (ml/min) | 0~3ml/min |
| Spray width | 5~10mm |
| Solution utilization | above 98% |
Ultrasonic nano-atomization produces extremely fine and uniform droplet distribution, enabling superior coating quality and improved electrical performance in functional films.
The 120kHz high-frequency system ensures ultra-precise deposition control, reducing material waste and improving utilization efficiency of expensive metal nanoparticles.
Compared with conventional spray methods, it delivers smoother film formation, higher conductivity consistency, and fewer coating defects.
The non-contact process protects sensitive substrates and prevents surface damage during deposition.
It provides excellent repeatability, making it ideal for high-end industrial applications requiring strict process control.
-Uniform coating: uniformity >95%
-Saving raw materials: raw material utilization rate is over 85%, 4 times that of traditional air spray nozzle-High precision, high controllable spray.
Application
Metal nanoparticle conductive coating (silver, copper, gold inks)
Flexible electronics and printed electronics
Semiconductor surface coating
Solar cell and photovoltaic thin-film deposition
Fuel cell catalyst layer coating
Precision optical and functional films
Advanced nano-material research
High-end industrial coating production
PEM coating
