RPS-UA50
Rps-sonic
RPS-UA50

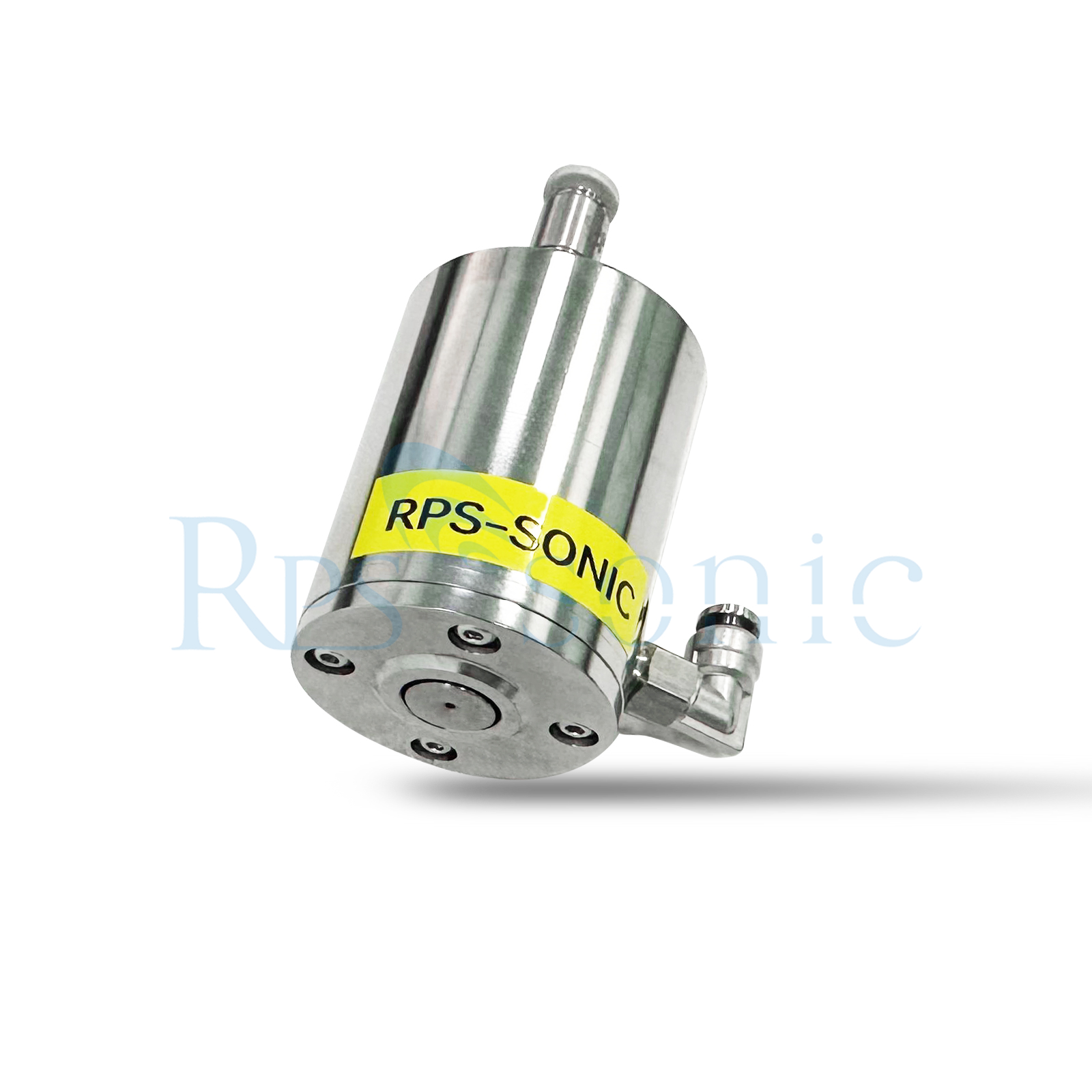

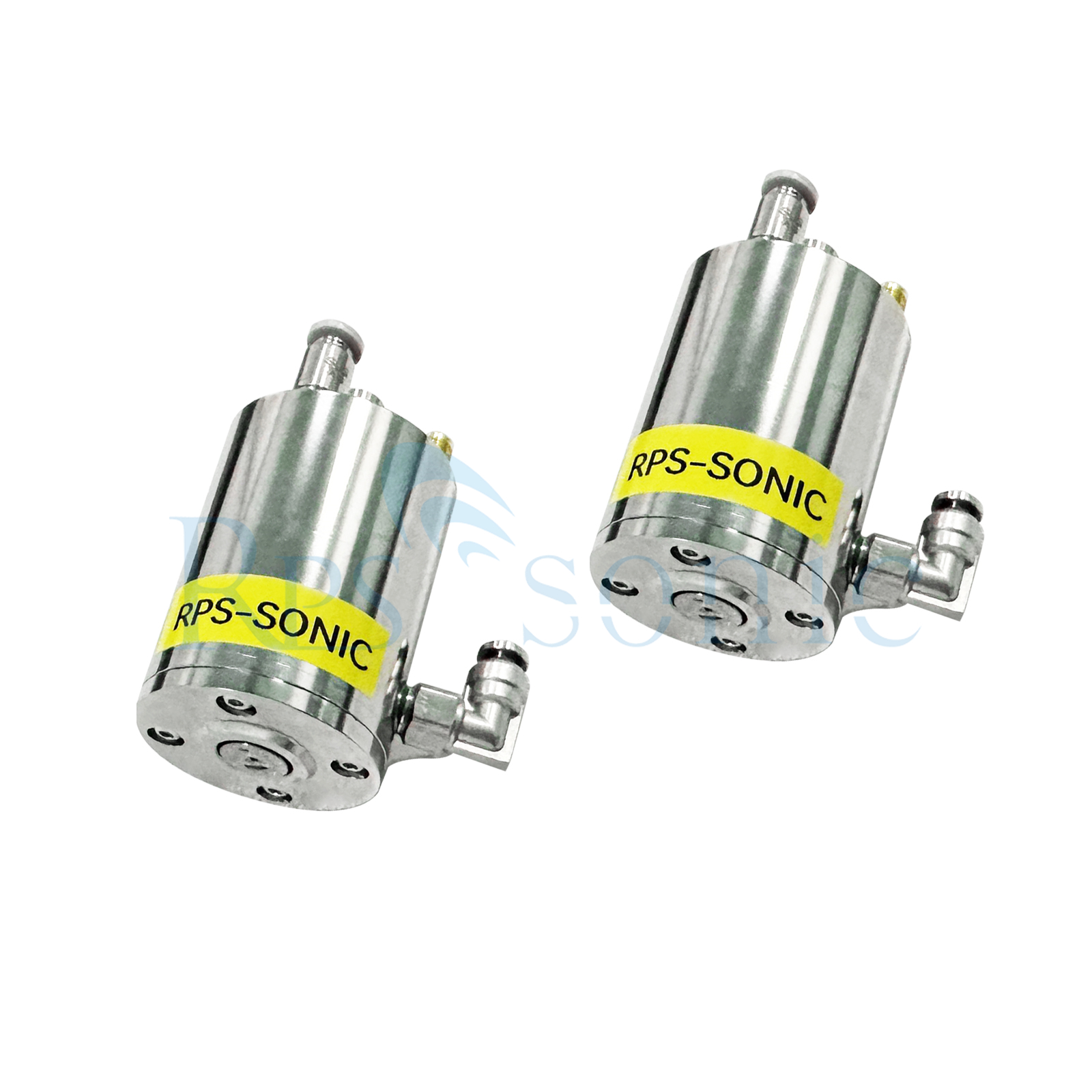

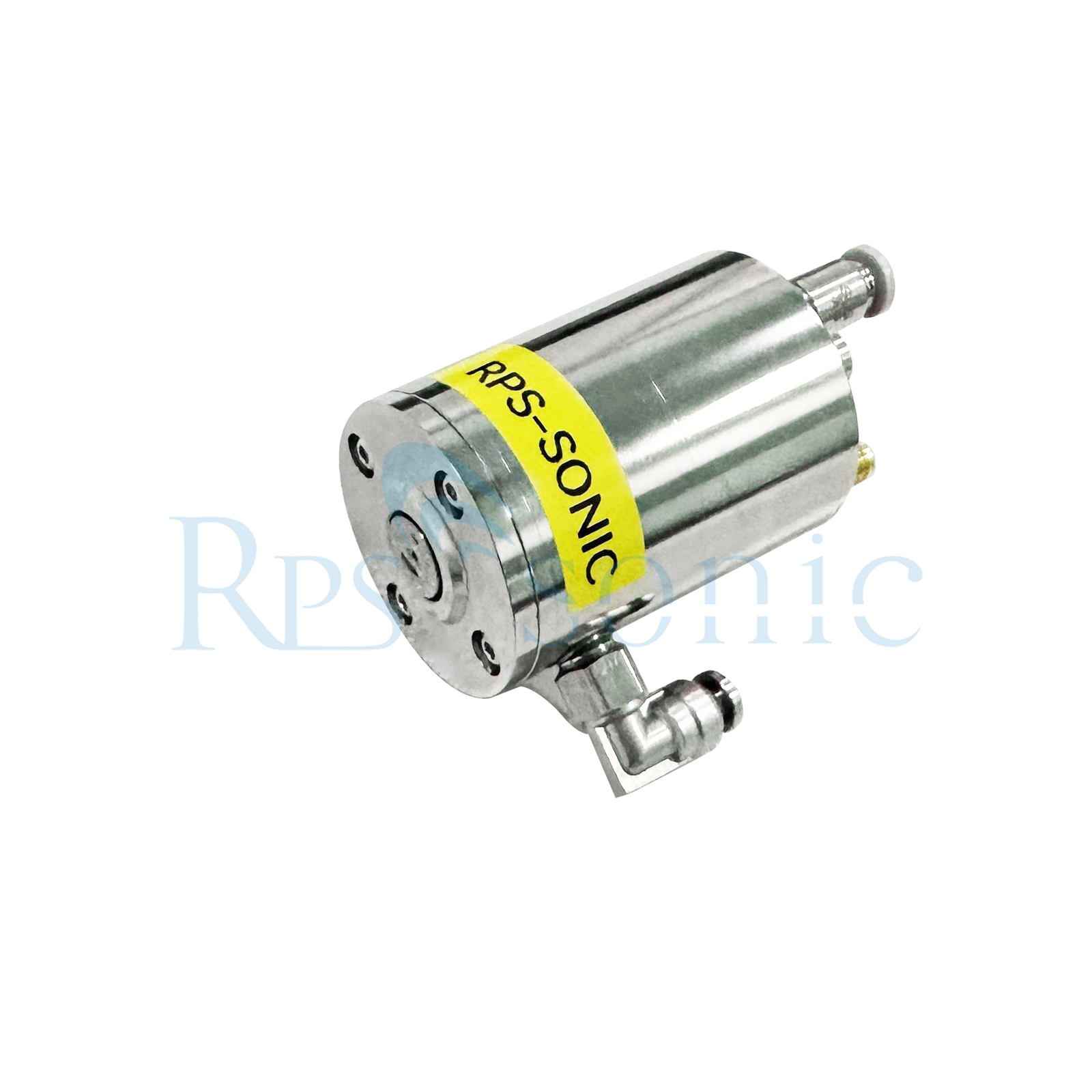

High Precision 50khz Ultrasonic Spray Nozzle Atomization Machine for Nanoparticles Coating
Description
The High Precision 50kHz Ultrasonic Spray Nozzle Atomization Machine is an advanced coating and atomization system designed for uniform deposition of nanoparticle-based fluids. It utilizes medium-high frequency ultrasonic vibration to generate fine, controlled droplets, enabling precise and efficient coating on a wide range of substrates.
Unlike conventional air spray or high-pressure atomization systems, this ultrasonic nozzle produces a soft, low-velocity spray that eliminates overspray, reduces material waste, and ensures highly uniform film formation. It is particularly suitable for functional coatings where droplet consistency and surface precision directly impact product performance.

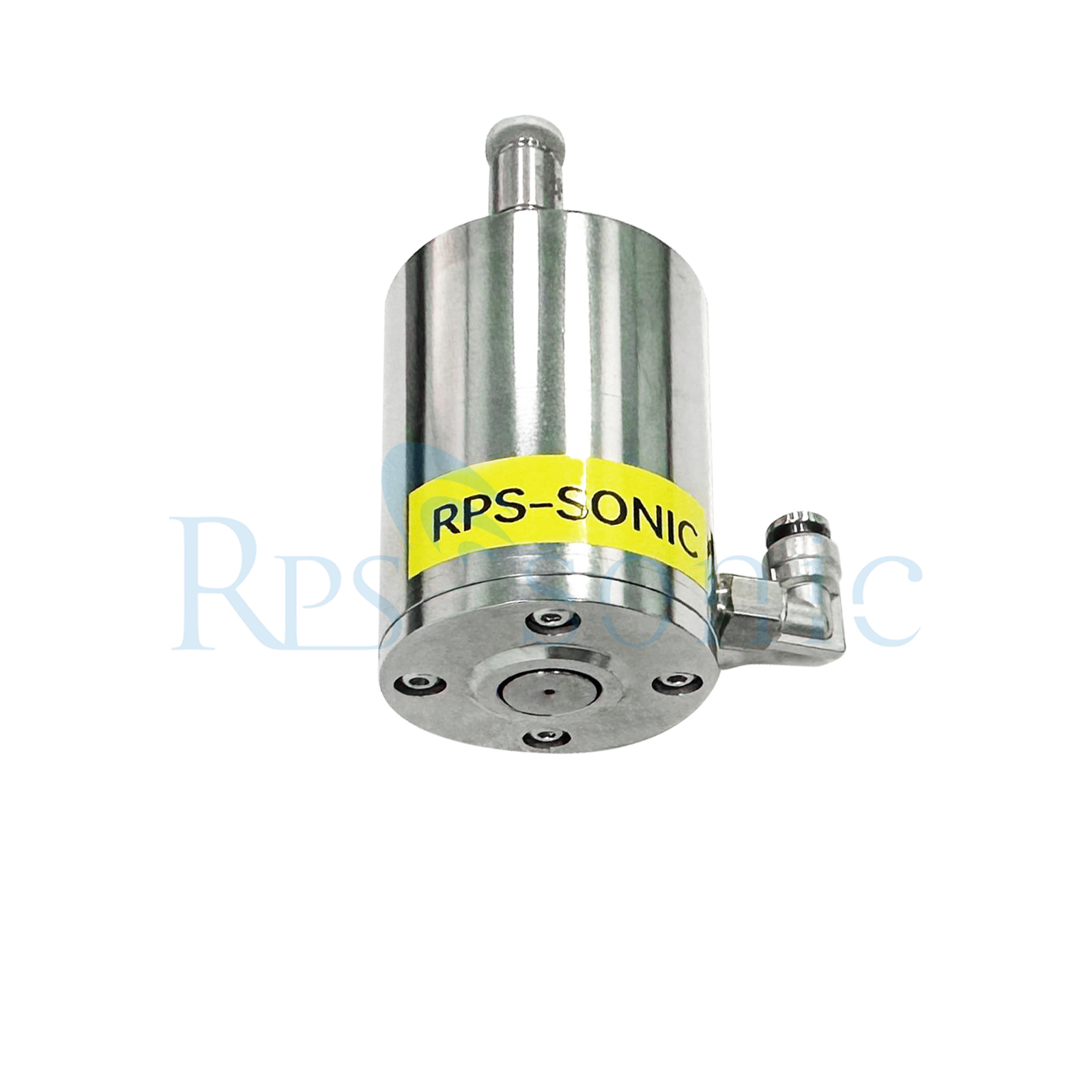

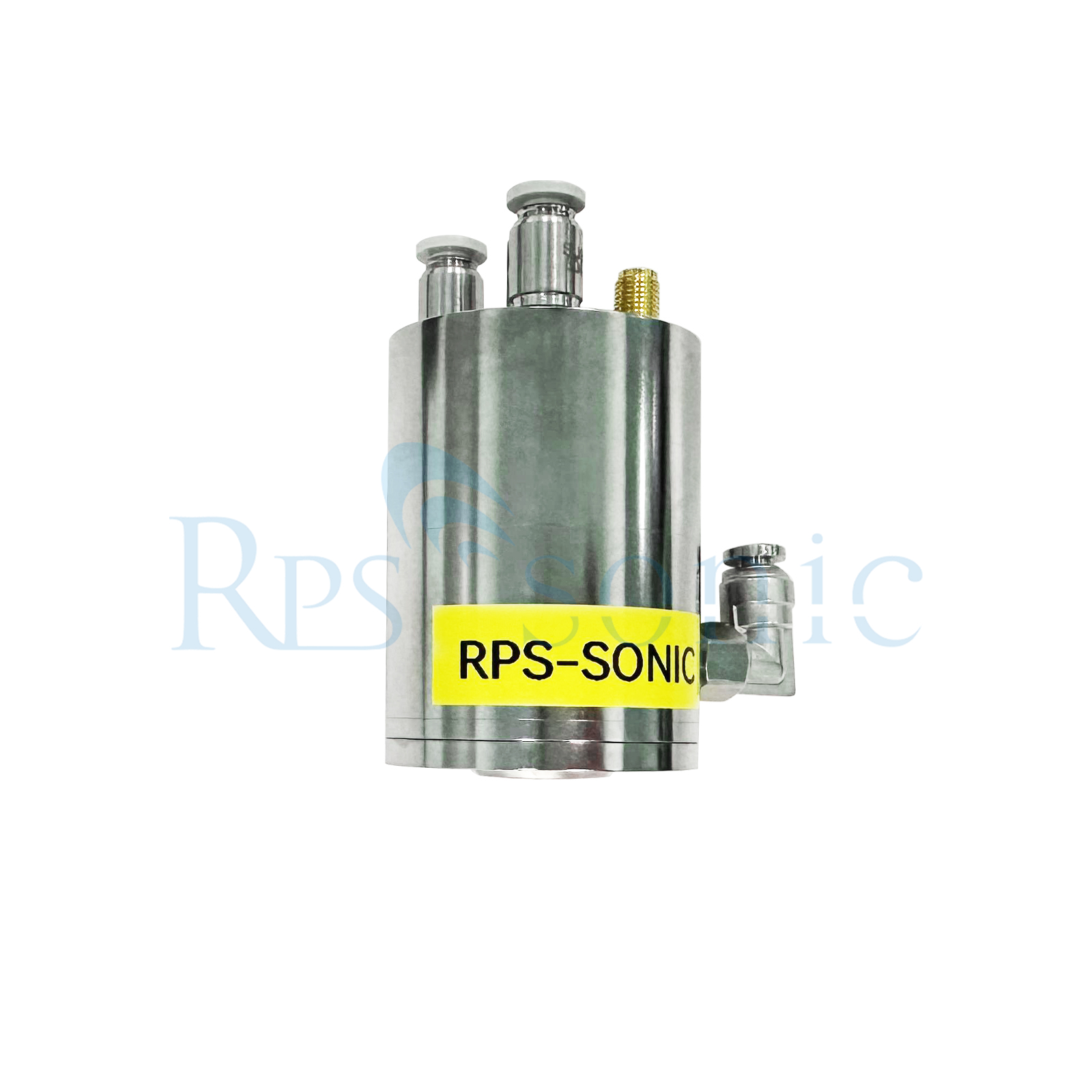

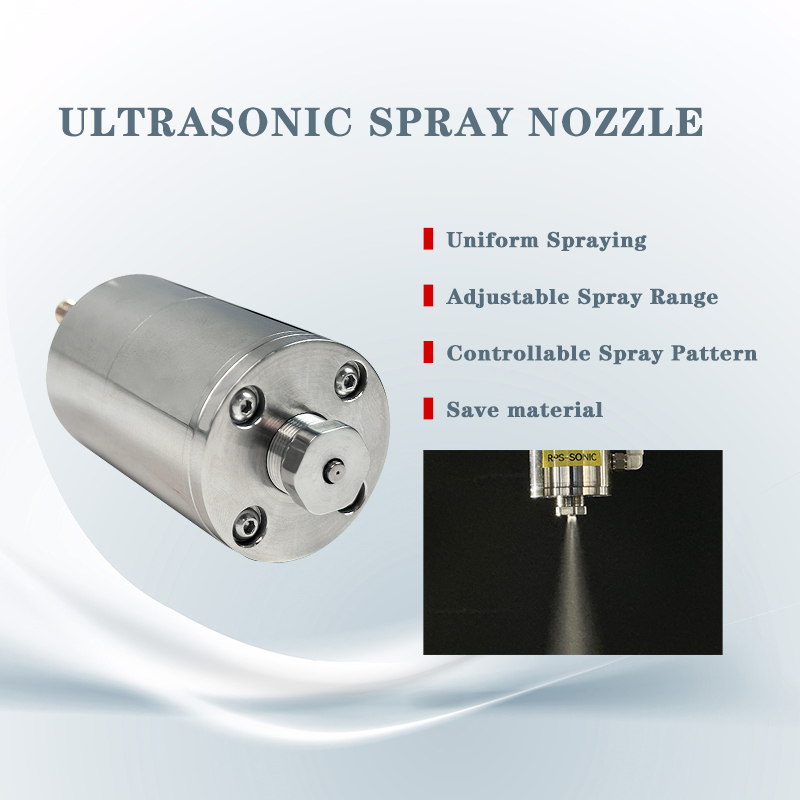

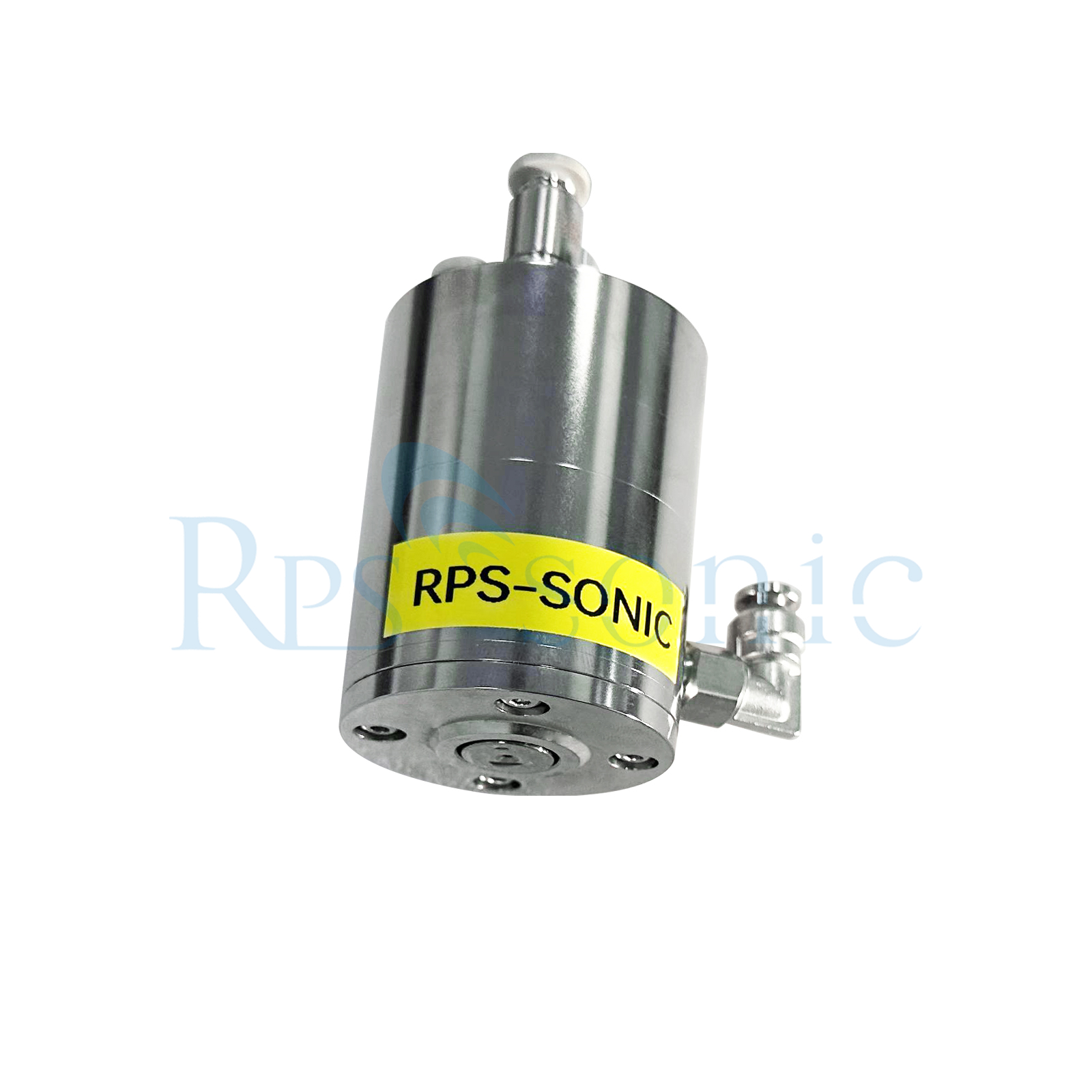

The system is equipped with a 50kHz high-frequency ultrasonic atomizing nozzle, delivering stable cavitation-based droplet formation with highly uniform particle size distribution.
A key advantage is its ability to achieve low-pressure, non-contact atomization, which prevents nozzle clogging and maintains stable performance even with nanoparticle suspensions or high-solid-content fluids.
Compared with traditional spray systems, this technology provides much finer droplet control and significantly improved coating uniformity, especially for thin-film and functional coatings.
The system supports adjustable flow rate and ultrasonic power, allowing precise control over coating thickness, spray width, and deposition density.

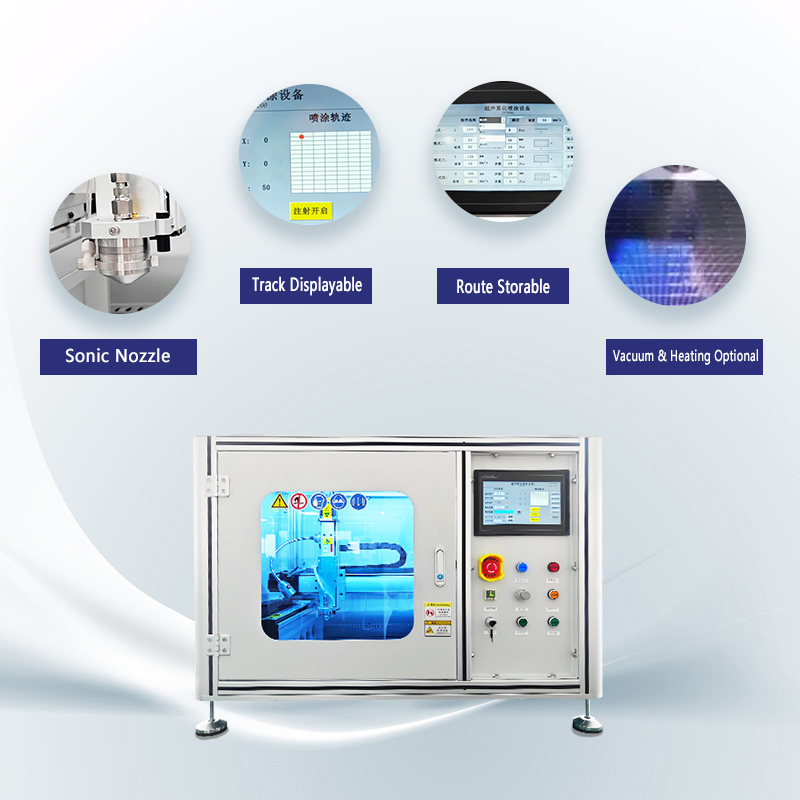

Its modular design allows integration into automated production lines, laboratory coating systems, and pilot-scale manufacturing setups.
Built with corrosion-resistant materials and industrial-grade ultrasonic components, the system ensures long-term stability and reliable operation in demanding environments.

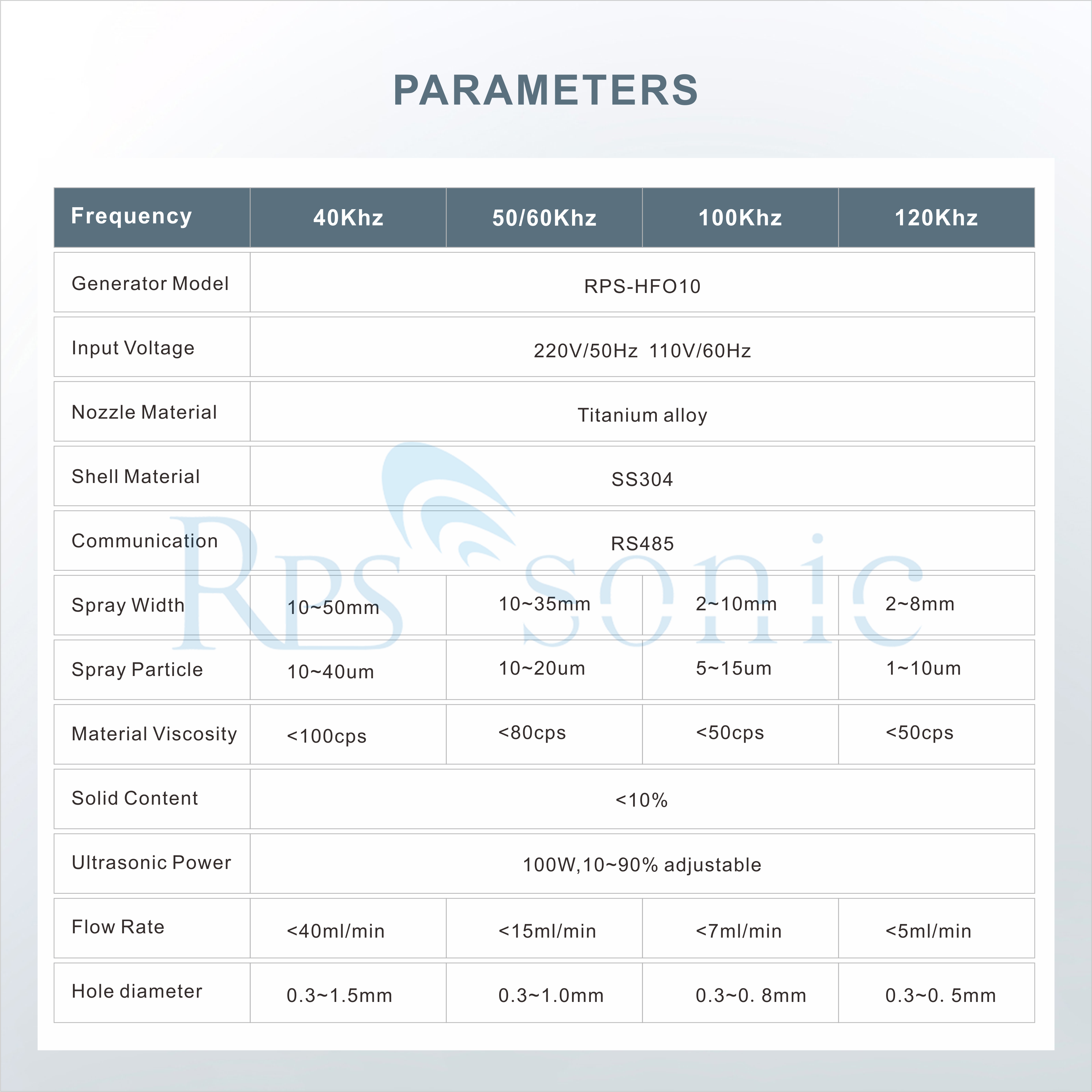

Parameter:
| Item | Parameter |
| Frequency | 50Khz |
| Power | 10~100w |
| FLOW RATE (ml/min) | 0~15ml/min |
| Spray width | 10~35mm |
| Solution utilization | above 98% |
The High Precision 50kHz Ultrasonic Spray Nozzle is an advanced atomization system designed for ultra-uniform nanoparticle coating and precision thin-film applications. It uses ultrasonic vibration instead of air pressure, producing fine, consistent droplets with almost zero overspray.
This technology ensures higher coating accuracy, better material utilization, and superior surface quality compared to traditional spray systems. It is ideal for high-value functional coatings where consistency and precision are critical.
Ultrasonic atomization produces ultra-fine, uniform droplets, resulting in smoother coatings and improved film consistency.
It significantly reduces material waste by minimizing overspray and improving deposition efficiency.
Compared with air spray systems, it delivers higher precision, better repeatability, and superior surface quality.
The non-contact spraying process protects sensitive substrates and avoids surface damage or contamination.
It ensures stable long-term operation with reduced maintenance requirements due to its anti-clogging design.
Uniform coating: uniformity >95%
Saving raw materials: raw material utilization rate is over 85%, 4 times that of traditional air spray nozzleHigh precision, high controllable spray.
Application:
The High Precision 50kHz Ultrasonic Spray Nozzle Atomization Machine is widely used in:
Nanoparticle functional coating
Electronic and semiconductor surface coating
Battery electrode and energy material spraying
Photovoltaic thin-film deposition
Medical device surface treatment
Precision optical coating
Ceramic slurry and advanced material spraying
Laboratory and industrial R&D coating systems
Electronics: Sensors, PCB Fluxing, Semiconductors etc.
Industrial: Glass, Touch Screen, etc.
Medical: Stents, Balloon Catheters, Diagnostic Device etc.
Energy: Fuel Cell, Solar Cell, etc.
