RPS-S35
RPS-SONIC

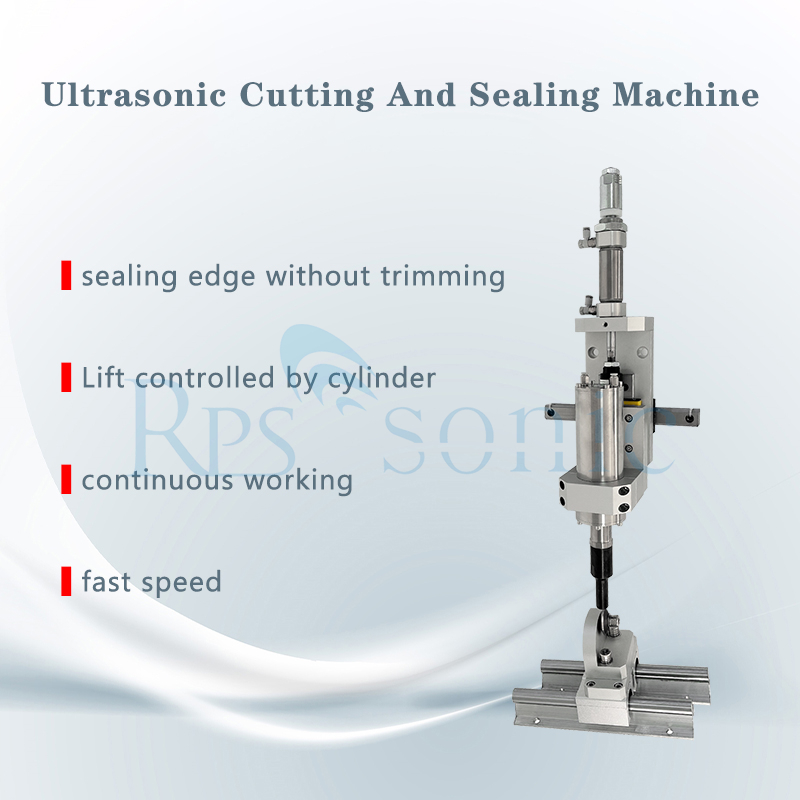

High Quality Ultrasonic Sealing And Cutting Machine with Roller Slitting Machine with Air Cylinder
Description
The High Quality Ultrasonic Sealing and Cutting Machine is an advanced textile processing system designed for continuous fabric cutting, edge sealing, and precision slitting. It combines high-frequency ultrasonic vibration with a roller slitting mechanism and pneumatic (air cylinder) control system, enabling stable, accurate, and high-speed processing of various synthetic fabrics and technical textiles.
Unlike traditional hot knife or mechanical blade cutting systems, this ultrasonic technology seals and cuts fabric simultaneously at the molecular level, preventing fraying, unraveling, and edge deformation. The integrated roller and pneumatic structure ensures stable material feeding and precise cutting alignment, making it ideal for automated production lines.
The system is equipped with a high-frequency ultrasonic cutting and sealing head (typically 20kHz–40kHz) that delivers frictionless energy, ensuring clean edge formation without burning or hardening the fabric.
A key advantage is the roller slitting mechanism combined with air cylinder pressure control, which provides stable fabric tension, precise alignment, and consistent cutting force during continuous operation.
Compared with conventional blade cutting systems, this machine offers non-contact ultrasonic sealing, which prevents fiber loosening and ensures strong, smooth, and sealed edges even on high-speed production lines.
The pneumatic (air cylinder) system allows automatic pressure adjustment, ensuring uniform cutting performance across different fabric thicknesses and elasticity levels.
The roller feeding design improves material stability, reduces deviation, and enables continuous processing with minimal manual intervention.
The ultrasonic horn is made of titanium alloy, providing high energy efficiency, wear resistance, and long service life under industrial conditions.
Parameters
| Item | RPS-S35 |
| Frequency | 35khz |
| Max power | 800W |
| Horn material | Steel |
Ultrasonic cutting and sealing technology produces clean, fray-free, and permanently sealed edges, significantly improving product quality and durability.
It ensures no melting, no burning, and no deformation, making it ideal for synthetic fibers and heat-sensitive materials.
Compared with traditional cutting methods, it offers higher speed, lower maintenance, and reduced material waste.
The combined roller + pneumatic system improves production stability, ensuring consistent cutting accuracy during long-term continuous operation.
It significantly reduces labor dependency and increases automation efficiency in textile manufacturing.
Efficient----The fastest cutting can reach 10 meters per minute.
Intuitive----The adjustment operation is convenient and intuitive.
Quality----Automatic edge sealing, no burning, no blackening, no burrs.
Economical----automatic work, saving labor, one person can operate multiple machines.

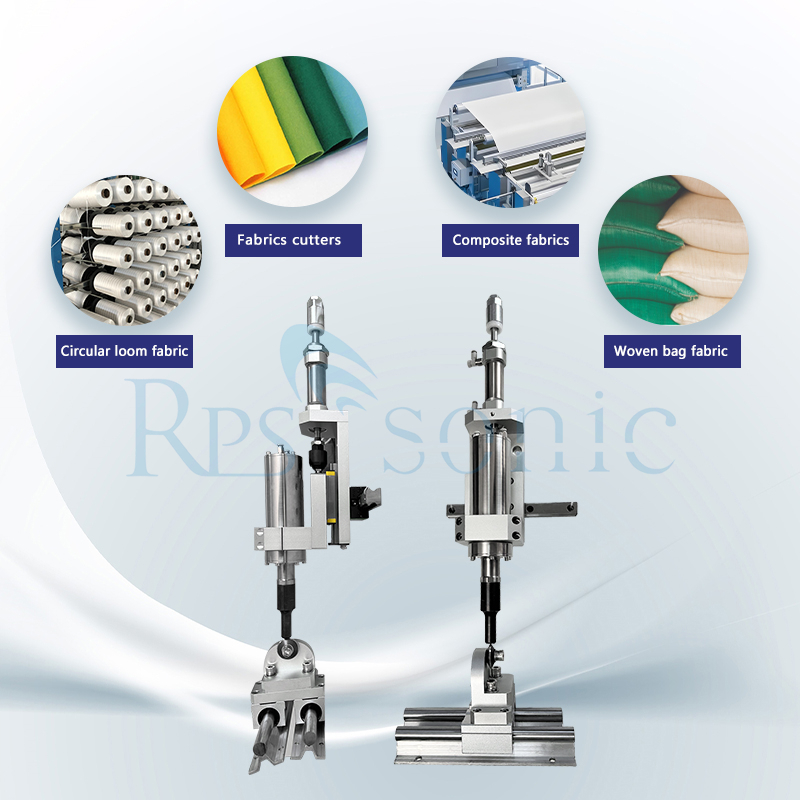

The Ultrasonic Sealing and Cutting Machine with Roller Slitting and Air Cylinder is widely used in:
Synthetic fabric cutting and sealing
Non-woven fabric processing
Industrial textile production
Medical disposable textiles
Filter materials and technical fabrics
Automotive interior textiles
Packaging and laminated materials
High-speed automated textile production lines
