RPS-RW30
Rps-sonic
RPS-RW30

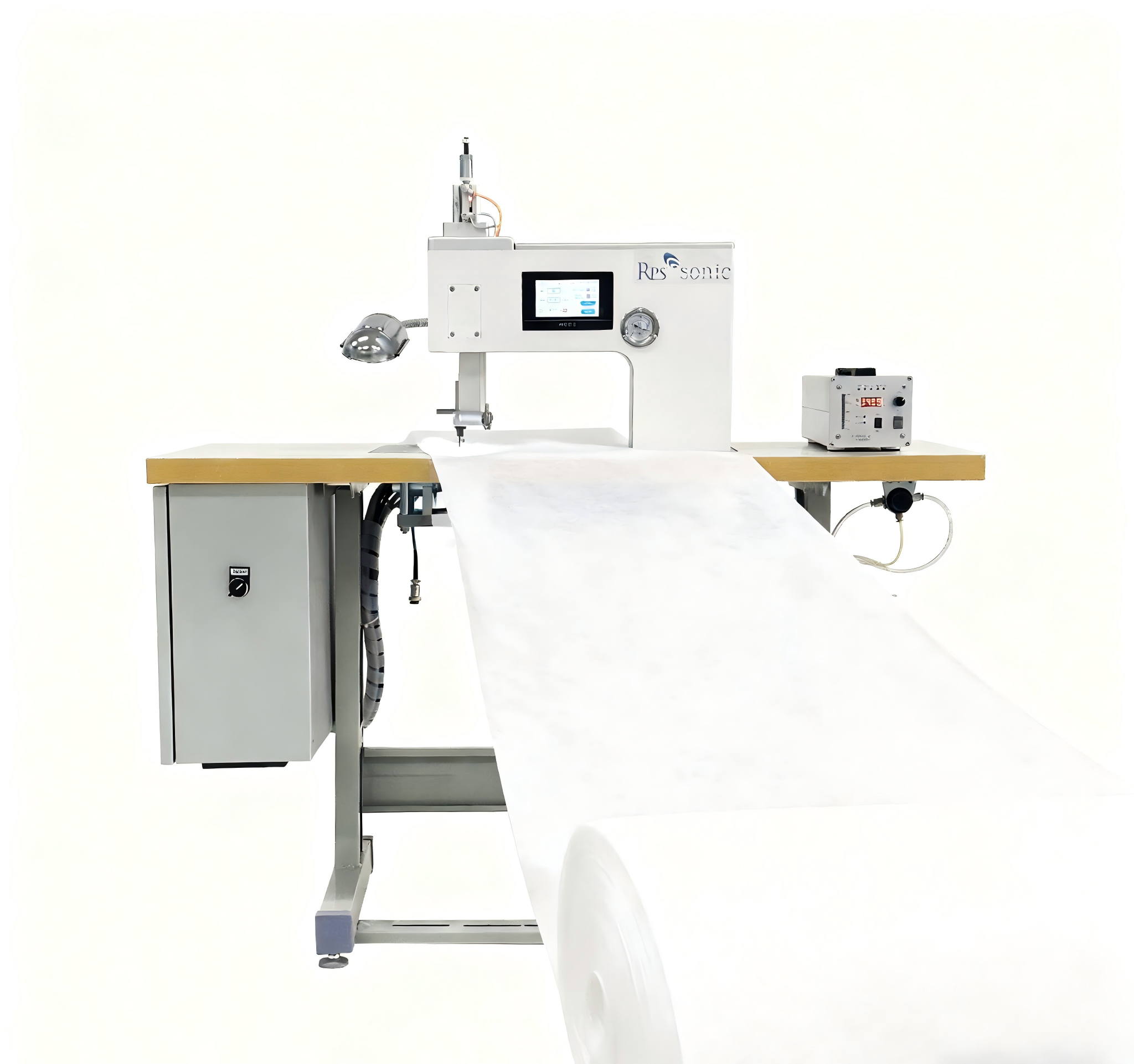

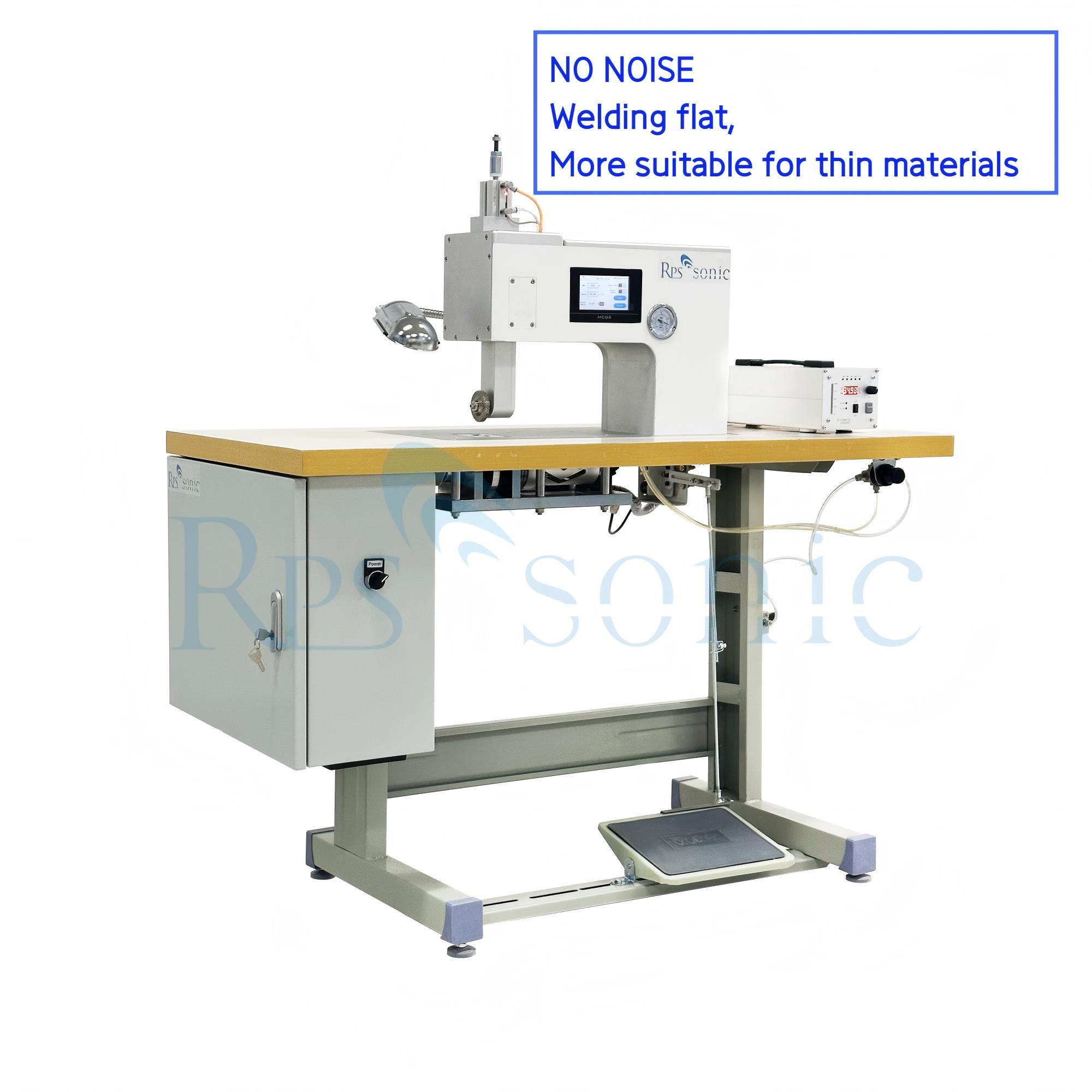

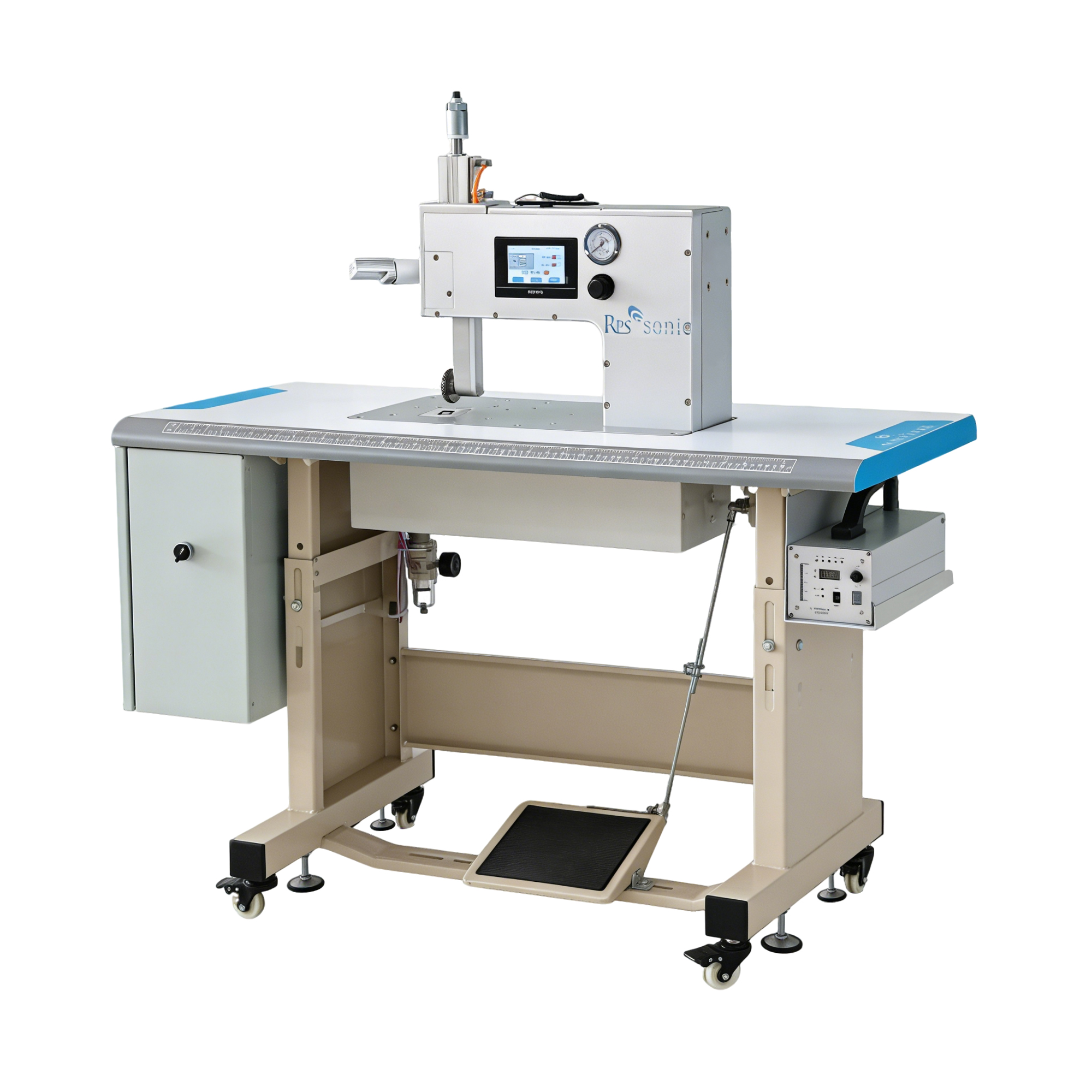

A rotary ultrasonic assembly mounted in a bearing housing that can be mounted in any orientation. It is available in 20, 35 kHz with bond widths of up to15MM. The bonder is intended for machinery manufacturers and experienced end users who desire to develop their own actuation and tooling solutions. Ultrasonic Sewing Machines operate like a traditional rotary sewing machine but produce soft, smooth seams that are impervious to moisture or fluids.
| Item | Parameter |
| Frequency | 30Khz |
| Power | 800W |
| Ceramice chips | 4chips |
| Speed | 20m/min in max |
| Welding width | 15mm in max |
| Welding horn | 20Khz rotary horn |
| Welding type | Continues welding |
Stable Continuous Wave Output: 30KHz high-frequency radial continuous vibration, stable power supply, suitable for long-hour continuous production.
High Vibration Concentricity: Precision assembly and optimized horn structure minimize vibration offset, ensuring full-circle uniform energy transmission.
Superior Welding Consistency: Uniform ultrasonic energy distribution guarantees consistent sealing strength, flatness and appearance for each workpiece.
High Yield & Low Defect Rate: Effectively avoid virtual welding, broken seams and uneven welding problems caused by unstable vibration.
Rps-sonic supply high power rotary ultrasonic systems to the packaging, hygiene and specialty converting industries.
Within the hygiene industry, Ultrasonic is used for adult and baby diapers/pant, surgical wrap, and medical face mask products for bonding, attachment, embossing and lamination of thermoplastic materials. The company has engineered solutions for feature attachment, core bonding, acquisition layers and backsheets.
Rps-sonic is also capable and willing to develop comprehensive and customized ultrasonic processing solutions that consider key parameters such as horn metallurgy, acoustic designs and geometries, component fabrication and system engineering in order to meet the processing needs of the customer.
Kindly check the AMPLITUDE REFERENCE GUIDE for ULTRASONIC WELDING (in Microns (um)) table in the next page, you will find suit frequency for your application.
