50L Industrial Ultrasonic Mixing Equipment Ultrasonic Homogenizer Extractor with Tank for Mushroom Extraction

Share to:

50L Industrial Ultrasonic Mixing Equipment Ultrasonic Homogenizer Extractor with Tank for Mushroom Extraction

Ultrasonic Sonochemistry homogenizer for Emulsification And Dispersion
20Khz -40Khz 500W-3000W
Ultrasonic emulsification technology has been widely used in food, paper, paint, chemical, pharmaceutical, textile, petroleum, metallurgy and other industrial fields. Ultrasonic equipment can be easily installed on existing production lines, which is convenient for manufacturers to upgrade equipment at a lower cost.

Certification:	CE
Installation:	Vertical
Pressure:	Medium Pressure
Frequency:	20kHz
Power:	3000W
Max Capacity:	100 L
Tip Head Material:	Titanium Alloy
Availability:

Quantity:



Inquire Add to Basket

Model:
SONOL20-3000
Brand:
RPS-SONIC
Code:
8515900090

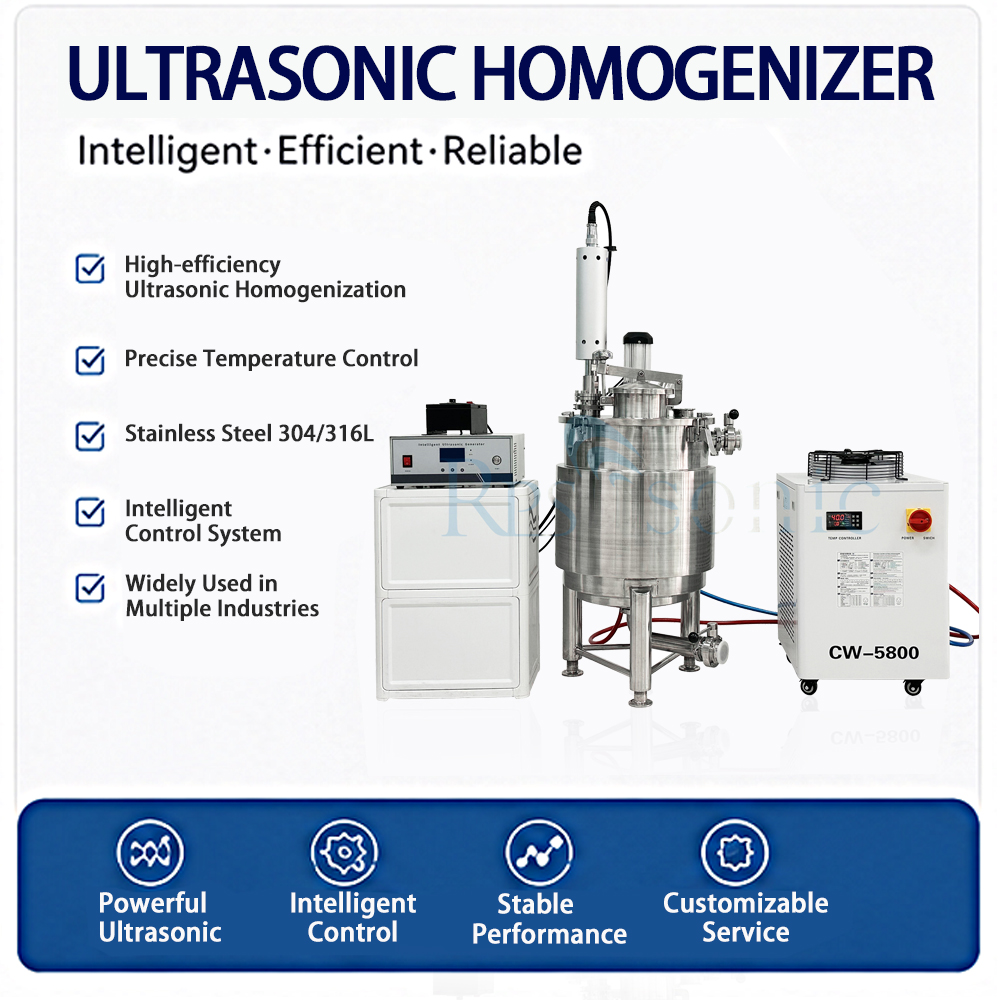

50L Industrial Ultrasonic Mixing Equipment Ultrasonic Homogenizer Extractor with Tank for Mushroom Extraction

Description

The 50L Industrial Ultrasonic Mixing Equipment is a high-efficiency ultrasonic extraction and homogenization system specifically designed for large-scale mushroom processing. It integrates powerful ultrasonic cavitation technology with a 50L stainless steel extraction tank, enabling rapid cell wall disruption and efficient release of bioactive compounds such as polysaccharides, beta-glucans, triterpenoids, and antioxidants.

Unlike conventional hot-water or solvent-based extraction methods that rely on long processing times and high thermal exposure, this ultrasonic system directly acts on fungal cell structures at the microscopic level. This significantly improves extraction yield while preserving heat-sensitive bioactive ingredients and maintaining natural potency.

The system is ideal for industrial mushroom extract production, bridging the gap between laboratory development and commercial manufacturing.

Parameter

Model	RPS-SONO20-50L
Input voltage	220/380V,50/60Hz
Controller	Digital controller with automatic frequency tracking
Rated power(kW)	3.0
Power adjust	20%~100%
Amplitude	30~80μm
Frequency(kHz)	20±0.5,automatic frequency tracking
Horn material	Titanium alloy
Horn diameter	40~50mm
Horn length	440~548mm
Flange	Tri-clamp/DN50 flange/customized flange
Temperature control	Temperature control jacket for external temperature control system
Tank material	Acrylic/SUS304L/SUS316L
Processing volume	50L,can be customized
Blender speed	0~800rpm,optional
Operating method	Touch screen or buttons
Working temperature	≤200℃
Working pressure	≤0.4MPa，can be customized

Key Advantages

Ultrasonic cavitation enables rapid breakdown of mushroom cell walls, dramatically improving extraction efficiency compared to boiling or reflux methods.

It achieves higher yield in shorter processing time, reducing energy consumption and production costs.

The system preserves heat-sensitive bioactive compounds, maintaining stronger functional performance in final extracts.

Compared to conventional extraction tanks, it provides better uniformity, higher reproducibility, and more stable batch-to-batch quality.

The scalable 50L design makes it ideal for pilot production and industrial-scale mushroom extract manufacturing.

Application

- Disruption of cells, bacteria, viruses, spores, fungi or tissues (cell disruption)
- Extraction of ingredients (lysis)
- Homogenization of different substances
- Production of finest emulsions with minimum droplet size
- Dissolution of poorly and poorly soluble substances in liquids
- Production of dispersions (emulsions and suspensions)
- Catalysis and acceleration of chemical reactions

anti-explosion ultrasonic sonotrode

ultrasonic pilot plant test machine

4 into 1 ultrasonic homogenizer system

Advantages of RPS-SONIC ultrasonic devices

• Easy and flexible handling
• Time saving
• Powerful
• Precisely controllable
• Reproducible results
• Eco-friendly and energy efficient
• Extremely durable and long lasting
• Wide product range
• Wide range of accessories for a variety of applications
• Production, service and repair in germany
• Specialist for ultrasonic technology
