| Frequency Range: | |
|---|---|
| Input Voltage: | |
| Power Supply: | |
| Working Distance: | |
| Air Pressure: | |
| Transport Package: | |
| Package Gross Weight: | |
| Quantity: | |
RPS-W28
RPS-SONIC
8515900090
Ultrasonic spot welding machine can be used for thermoplastics welding by converting 50/60 Hz current to 15, 20, 30, or 40 kHz power through the ultrasonic generator. The converted high-frequency electrical energy is again converted into mechanical motion of the same frequency through the ultrasonic transducer, and the mechanical motion is then transmitted to the welding head through a set of amplitude modulator devices(booster) that can change the amplitude.
The vibration energy received by the welding head is transferred to the joint of the workpiece to be welded. In this area, the vibration energy is converted into heat energy by means of friction to melt the plastic. After the vibration stops, the transient pressure maintained on the workpiece causes the two weldments to solidified into one body in the form of molecular linkage. Generally, the welding time is less than 1 second, and the welding strength obtained can be comparable to the body.
Features:
* Good quality famous brand components are used to realize the strong power and stable performance.
* Compact design with small size, saving space.
* Low noise, low power consumption, environment friendly
* High efficiency with strong welding results.
Why RPS-SONIC HORN:
1. Every horn will be designed by FEA system , so that to confirm the End face of the ultrasonic horn with uniform force
2. All ultrasonic horns with three months warranty.
3. Specialized in high power ultrasonic for more than ten years
4. Every ultrasonic horn with 24hours old testing before shipment.
5. Good packing, no packing problem during the 10 years exporting business.
6. Every customer will get purchase records and there are certain rewards after accumulation
Service and shipment
Warranty one year for transducer.
You can contact us for technical inquiry any time.
We supply OEM service for oversea customer, also will keep Confidentiality for our customers.
We supply customized products service for small quantity also.
Shipment by FED-EX /DHL/UPS/TNT
| Item | Parameter | Advantage: | Application |

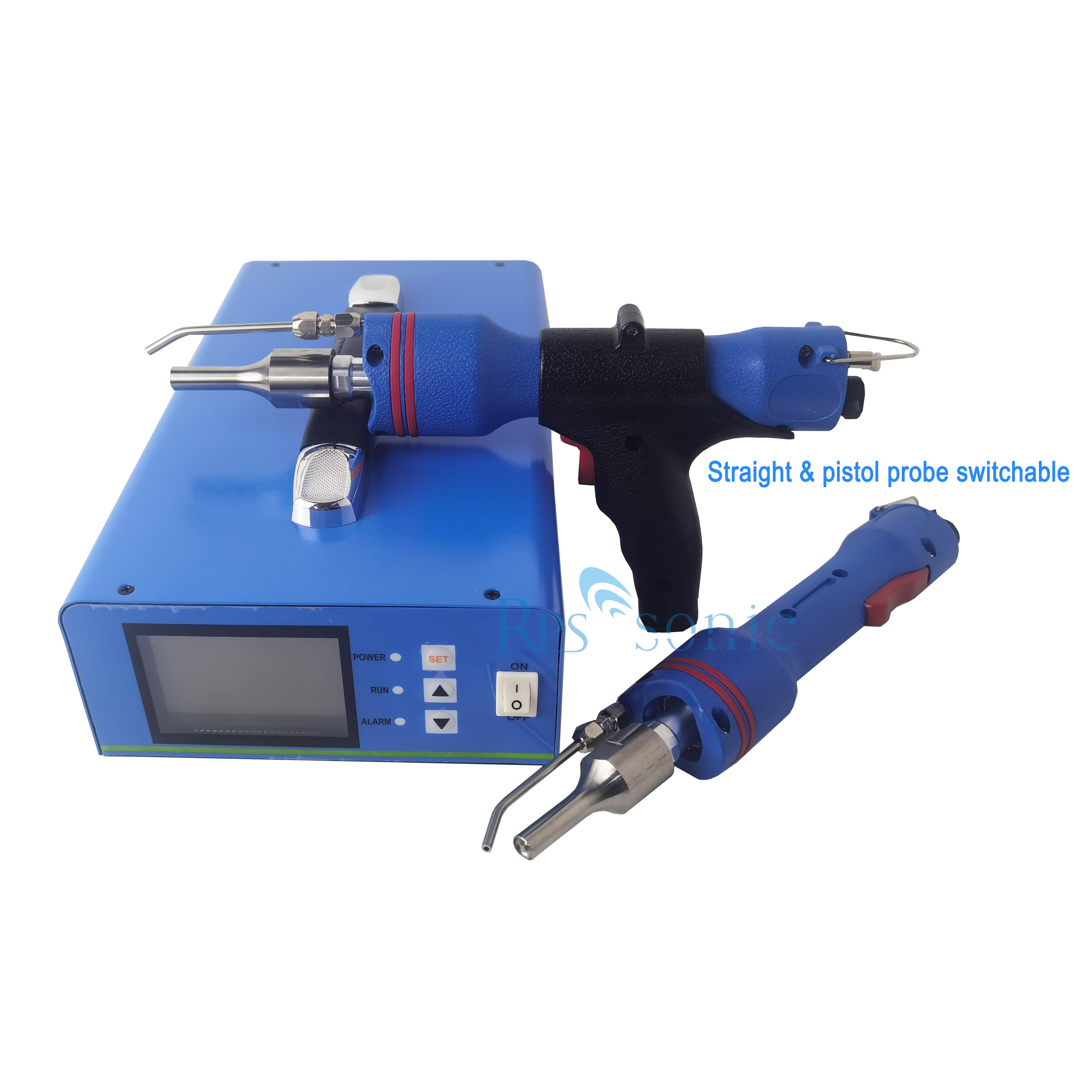

28Khz ultrasonic hand welder Straight type | ▪ 28Khz 800W ▪ Digital generator ▪ Horn customized ▪Aluminum alloy&Steel & Titanium alloy ▪Power Supply: 220v 50/60HZ | 1. light generator ,light hand welder.The generator 120*120*380, whole weight5KG, with generator 4kg, and the 28Khz hand welder 1kg, 35Khz hand welder 0.8kg. Suit for hand operate. 2. Special alloy metal housing, the housing of the hand-welder is light but firm, not easy to be deformed, longer it'd using life. 3. Digital generator, it can tracking the frequency itself, easy for operate. Output /welding time adjustable, suit for both hand operate and machine operate. | PP PVC Fabric woven PE ABS PS Nylon PU PET All Thermoplastic material, the thickness 8mm in max. Straight type suit for both hand /machine operate. Gun type suit for hand operate. |
28Khz ultrasonic hand welder Gun type | |||
35Khz ultrasonic hand welder Straight type | ▪ 35Khz 500W ▪ Digital generator ▪ Horn customized ▪ Aluminum alloy&Steel & Titanium alloy ▪ Power Supply: 220v 50/60HZ | PP PVC Fabric woven PE ABS PS Nylon PU PET All Thermoplastic material, the thickness 5mm in max. Straight type suit for both hand /machine operate. Gun type suit for hand operate. | |
35Khz ultrasonic hand welder Gun type | |||
For better application, it is better share all the material information with me, the material, thickness, operate way, speed requirements before order. We also supply 20Khz 40Khz ultrasonic hand-weld welder. | |||
Ultrasonic welding machines are versatile and can be used for joining a wide range of materials, including plastics, metals, textiles, and films. They offer several advantages such as fast cycle times, precise control, and the ability to create strong, hermetic, and aesthetically pleasing welds. The specific configuration and features of an ultrasonic welding machine may vary depending on the application and the materials being welded.
Ultrasonic spot welding machine can be used for thermoplastics welding by converting 50/60 Hz current to 15, 20, 30, or 40 kHz power through the ultrasonic generator. The converted high-frequency electrical energy is again converted into mechanical motion of the same frequency through the ultrasonic transducer, and the mechanical motion is then transmitted to the welding head through a set of amplitude modulator devices(booster) that can change the amplitude.
The vibration energy received by the welding head is transferred to the joint of the workpiece to be welded. In this area, the vibration energy is converted into heat energy by means of friction to melt the plastic. After the vibration stops, the transient pressure maintained on the workpiece causes the two weldments to solidified into one body in the form of molecular linkage. Generally, the welding time is less than 1 second, and the welding strength obtained can be comparable to the body.
Features:
* Good quality famous brand components are used to realize the strong power and stable performance.
* Compact design with small size, saving space.
* Low noise, low power consumption, environment friendly
* High efficiency with strong welding results.
Why RPS-SONIC HORN:
1. Every horn will be designed by FEA system , so that to confirm the End face of the ultrasonic horn with uniform force
2. All ultrasonic horns with three months warranty.
3. Specialized in high power ultrasonic for more than ten years
4. Every ultrasonic horn with 24hours old testing before shipment.
5. Good packing, no packing problem during the 10 years exporting business.
6. Every customer will get purchase records and there are certain rewards after accumulation
Service and shipment
Warranty one year for transducer.
You can contact us for technical inquiry any time.
We supply OEM service for oversea customer, also will keep Confidentiality for our customers.
We supply customized products service for small quantity also.
Shipment by FED-EX /DHL/UPS/TNT
| Item | Parameter | Advantage: | Application |
28Khz ultrasonic hand welder Straight type | ▪ 28Khz 800W ▪ Digital generator ▪ Horn customized ▪Aluminum alloy&Steel & Titanium alloy ▪Power Supply: 220v 50/60HZ | 1. light generator ,light hand welder.The generator 120*120*380, whole weight5KG, with generator 4kg, and the 28Khz hand welder 1kg, 35Khz hand welder 0.8kg. Suit for hand operate. 2. Special alloy metal housing, the housing of the hand-welder is light but firm, not easy to be deformed, longer it'd using life. 3. Digital generator, it can tracking the frequency itself, easy for operate. Output /welding time adjustable, suit for both hand operate and machine operate. | PP PVC Fabric woven PE ABS PS Nylon PU PET All Thermoplastic material, the thickness 8mm in max. Straight type suit for both hand /machine operate. Gun type suit for hand operate. |
28Khz ultrasonic hand welder Gun type | |||
35Khz ultrasonic hand welder Straight type | ▪ 35Khz 500W ▪ Digital generator ▪ Horn customized ▪ Aluminum alloy&Steel & Titanium alloy ▪ Power Supply: 220v 50/60HZ | PP PVC Fabric woven PE ABS PS Nylon PU PET All Thermoplastic material, the thickness 5mm in max. Straight type suit for both hand /machine operate. Gun type suit for hand operate. | |
35Khz ultrasonic hand welder Gun type | |||
For better application, it is better share all the material information with me, the material, thickness, operate way, speed requirements before order. We also supply 20Khz 40Khz ultrasonic hand-weld welder. | |||
Ultrasonic welding machines are versatile and can be used for joining a wide range of materials, including plastics, metals, textiles, and films. They offer several advantages such as fast cycle times, precise control, and the ability to create strong, hermetic, and aesthetically pleasing welds. The specific configuration and features of an ultrasonic welding machine may vary depending on the application and the materials being welded.
