Ultrasonic Plastic Tube Sealing Horn 20Khz 1000W Hose End Sealing Machine

Ultrasonic booster is an important part of the ultrasonic vibration system. Its main function in the vibration system is to amplify the mass displacement or velocity of the mechanical vibration, and concentrate the ultrasonic energy on a small area, that is, the energy is collected. Also known as ultrasonic shift levers or ultrasonic concentrators.
Application :
  • CS20
  • Rps-sonic
  • CS20

  Ultrasonic Plastic Tube Sealing Horn 20Khz 1000W Hose End Sealing Machine

Ultrasonic sealing technology is one possibility that enables manufacturers to reduce both costs and product waste while providing strong product protection. Reduced energy consumption, material savings and increased equipment availability allow manufacturers to produce more sustainably and profitable. In comparison to other sealing methods used to date, such as hot and cold sealing, ultrasonic technology represents an attractive alternative.

What's ultrasonic sealing?

Ultrasonic sealing similar to ultrasonic welding. High frequency vibration takes the melting is only generated in the thermoplastic sealing layer. In order to convert the vibration locally into frictional heat, the anvil and the horn are mostly radial or linear profiles with small platform shapes. This profile enables the energy to be directed into focus, making the sealing time shorter, from only 100ms to 200ms. When ultrasonically sealed, heat is generated inside the film, rather than being introduced from the outside when heat sealed. The mold, the welding head and the anvil, which are in direct contact with the packaging material, maintain a normal temperature during the welding process. The support layer is also kept at a normal temperature. After the energy input is completed, the thermal energy can be smoothly transmitted outward due to the temperature difference between the support layer and the sealing layer - the strength of the weld is significantly higher.

Products Details

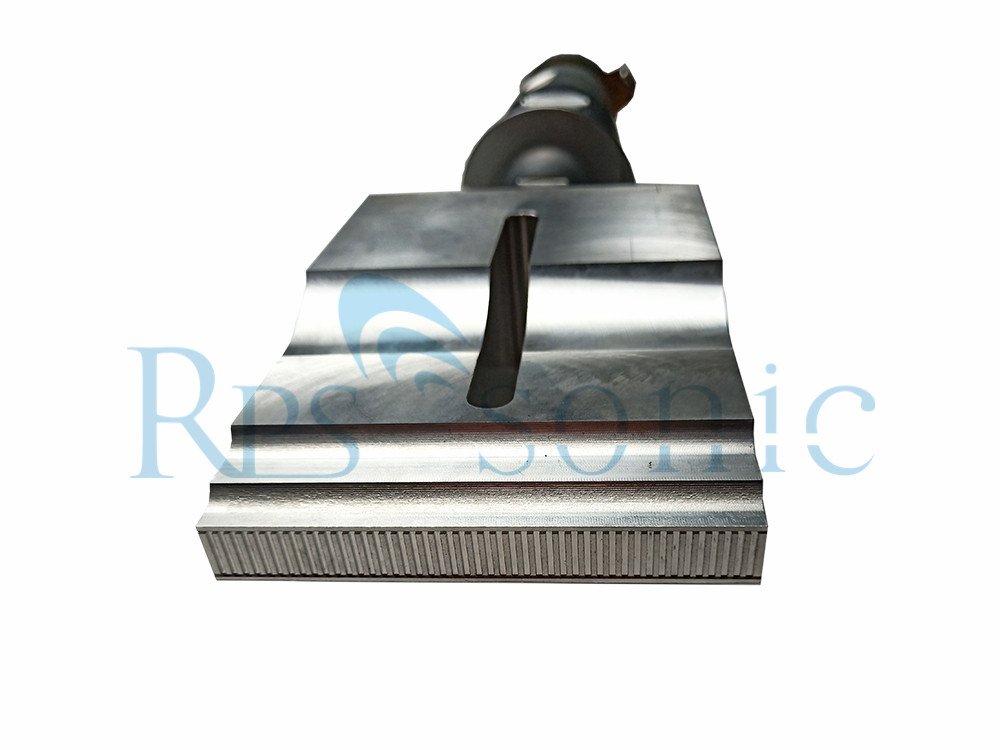

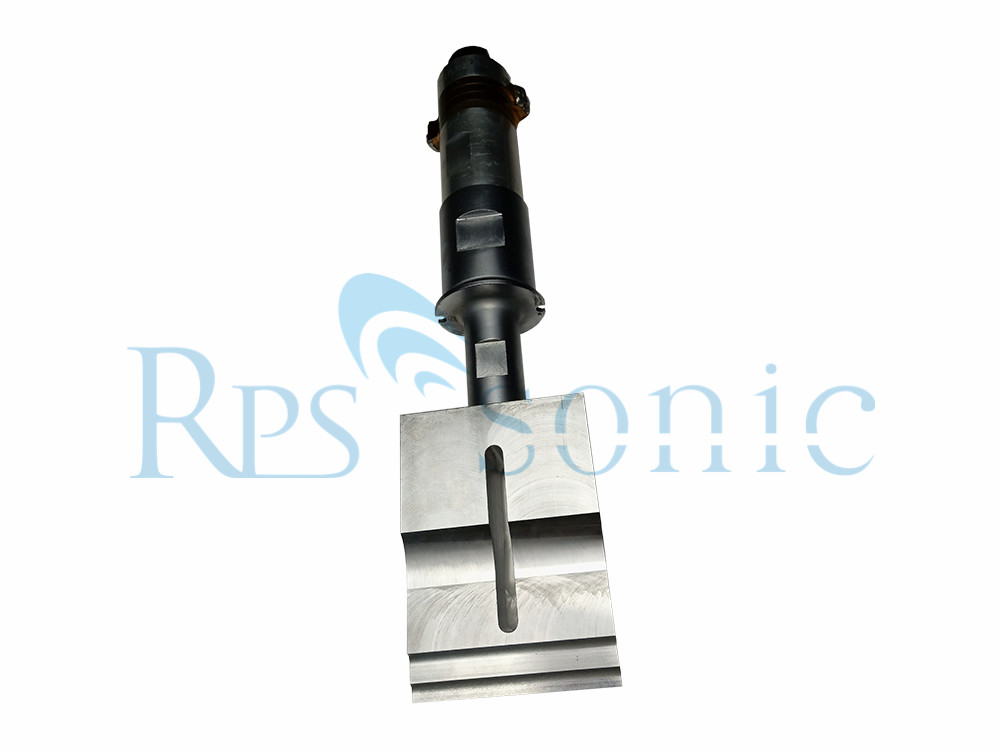

This is the description of 20KHz converter  and horn for Ultrasonic Plastic Tube Sealing


type CS20
frequency 20KHz
power 1000watt
power supply AC220v
Application  For drinking sealing

Ultrasonic tube sealing


1.It's applicable to toothpaste, cosmetic, pharmaceutical, food, industry product and other soft tube sealing.

2.The ultrasound output power is big enough to ensure the sealing quality of different kinds material and specifications soft tubes.

3.we can customize the horn depending on your requirements.


1. What’s the warranty of your transducer and equipment.

Our warranty is one year for both transducer and equipment, but we can supply you Components free even out of warranty.


2. What’s frequency transducer you supply?

We can supply transducer from 15Khz to 70Khz depending on your requirements or application.


3. What’s the using life of your transducer?

Under correct working environment, our transducer can work 5~10 years


4. What’s the using life of your generator?

Under correct working environment, our generator can work 8~10 years


5. Does your products exported before?

Yes, our transducer exported to USA,south America, EUROPE, Middle East, and Russia for many years.


6. Do you supply sample for test?

Yes, you can order on sample from our company first , we will return you the sample cost when you order in the future.


7. Do you supply OEM work?

Yes, welcome to ask for OEM cooperation , we have OEM produced for USA and German customer for many years, also hope to get more OEM order to enlarge our business.


8. how to customize transducer ?

For two ways for customize transducer, first way, you supply me sample , I will customize depending on your sample. Second, you give us all parameter and drawing , we can customize depending on your information.


9. Can you generator connect to PC, PLC or internet .

Yes, we have different version generator, it can connect to PC. PLC, even internet.Also the price different.


10. What we can get if the transducer/equipment broken during the warranty?

All our transducer and generator tested at least 48 hours before shipment , so we have confidence to our equipment. Of course, We will send you new transducer/ equipment if it broken in the warranty. At the same time, we need to find the problem , why it broken so fast.

Rps-sonic, consisted with a couple of young people who love ultrasonic very much.The founding members of RPS-SONIC have an average degree of Bachelor's degree or above. They have been in the ultrasonic industry for more than 5 years and have rich experience in ultrasound. The company's business philosophy is: Do not blindly promote any product, find the right product for the customer. So before each order, we will confirm all the details, including application details, equipment conditions, equipment specific information.

Before year 2012, we only sale second branson / dukane / rinco / herrman/telsonic welding equipment , during these twenty year develop, we find, more and more people have problem with the core part of ultrasonic welding equipment -generator and transducer, so we decided to start our business of transducer and generator of our own transducer and generator. Many of the end user meet the transducer problem, they don’t know why transducer broken, and changing the expensive transducer one by one. Actually, one branson /dukane /rinco transducer can use 10~30 year, even the cheapest transducer can use about 5 years. So there must some reasons if your transducer broken in one year. That’s why we want build Rps-sonic, we need to help more end user to know more about transducer , to use ultrasonic equipment better, to save cost when meet problem.
