What's The Ultrasonic Food Cutting Machine?
With the improvement of people's living standards, modern people have higher and higher requirements for food, clothing, housing and transportation. In terms of food, people have put forward very high requirements for taste and shape. Therefore, when we produce food, we should take the requirements of the general public as the benchmark and produce food that meets the taste of the general public. Food production always involves cutting, and during the cutting process, some problems often arise: the processing capacity of the processing plant sometimes cannot meet the required processing volume, and the food to be processed is often prone to deformation and damage; some foods produce particles, debris and powder when subjected to very strong processing, which can dirty the factory and the surrounding environment; some foods are composed of different food materials and have non-uniform characteristics; and some food materials themselves are sticky and difficult to cut.
However, due to the unreasonable structure, high production cost, short service life, and inaccurate cutting and easy deformation of food of the existing food cutting devices, the food is easily damaged.
The utility model overcomes the shortcomings of the existing technology and solves the technical problem by providing a simple structure, convenient to use, accurate cutting, high precision, and food not easily deformed ultrasonic food cutting device.

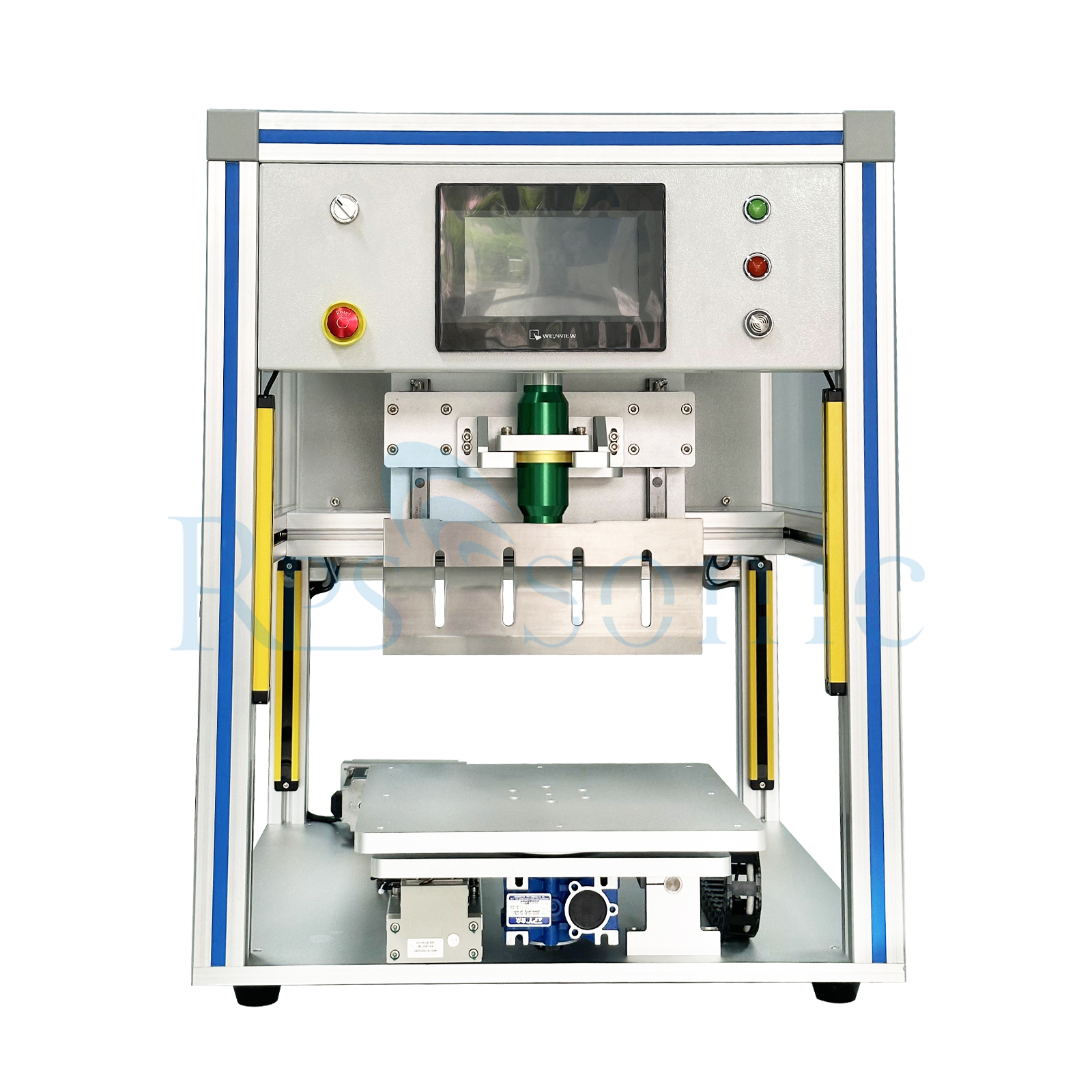

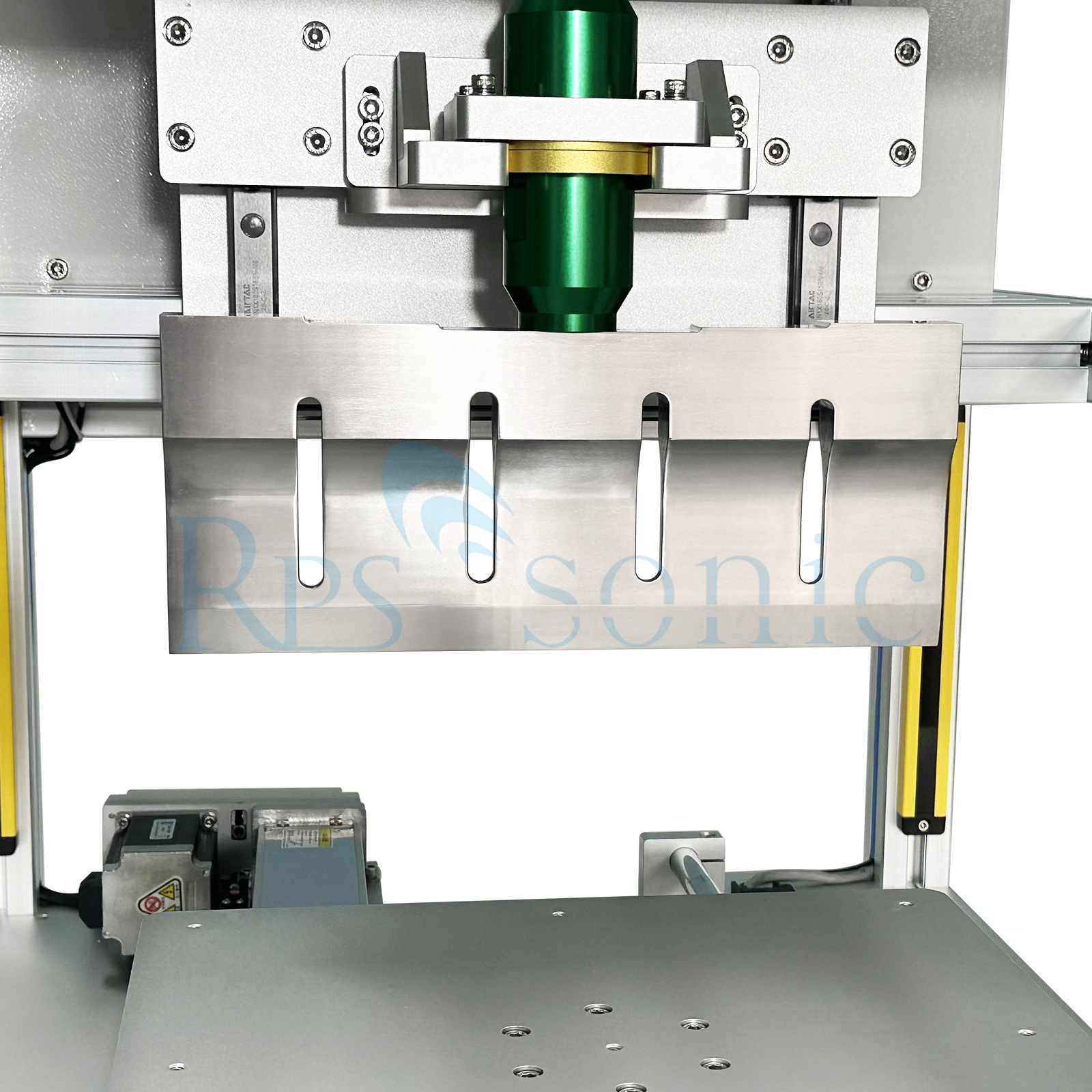

To solve the above technical problems, the technical solution adopted by the utility model is: the ultrasonic food cutting device, including: a food conveyor belt, the two sides of the food conveyor belt are provided with slide rails, the slide rails are slidably installed with a gantry frame, the gantry frame is provided with an ultrasonic transducer that can slide up and down, the bottom of the ultrasonic transducer is provided with a cutting head, the ultrasonic transducer is connected to an ultrasonic generator through a wire, and a cam mechanism for controlling the sliding of the gantry frame is provided on one side of the food conveyor belt.
Preferably, a vertical lifting track is provided on the crossbeam of the gantry frame, a knife frame is slidably installed on the lifting track, the ultrasonic transducer is installed on the knife frame, a lifting cylinder is provided on the knife frame, the cylinder body of the lifting cylinder is fixed on the gantry frame, and the piston rod of the lifting cylinder is fixed on the knife frame.
Preferably, the cam mechanism includes an electric motor, a reducer, a turntable and a connecting rod, the output shaft of the electric motor is connected to the input shaft of the reducer, the output shaft of the reducer is provided with a turntable, the turntable is provided with a long hole slide slot, a slide rod is provided in the long hole slide slot, one end of the connecting rod is hinged to the slide rod, and the other end is hinged to the gantry frame.
Preferably, a linear bearing is provided between the lifting track and the knife frame.
The utility model has a simple structure, is convenient to operate, has high cutting accuracy, good surface finish of the cutting surface, accurate cutting edge, no deformation, no sticking to the knife, fast speed, no pollution, and has good production continuity, high production efficiency, low production cost and long service life.
