Product Details
Home / Products / Ultrasonic Assisted Equipment / impendance analyzer for optimization of impedance matching network,
Share to:

impendance analyzer for optimization of impedance matching network,

Impedance analysis is very much useful in finding the characteristics of an electrical system and also helps to find equivalent circuit of different electrical devices including transducers like ultrasound transducers, sensors etc. In this work an impedance analyzer is implemented based on auto balancing bridge for finding the characteristics of ultrasound transducer. The signals for impedance characterization is generated and acquired by using National Instruments function generator NI PXI 5450 and scope NI PXI 5154. LabVIEW software is used for calculation of impedance
Frequency range:
Test precision:
Test speed:
Frequency precision:
  • PV90
  • Rps-sonic
  • PV90

Ultrasonic Transducer And Horn Analyzer Or Testing And Tuning Power Ultrasonic Transducers


Impedance analyzers are a class of instruments which measure complex electrical impedance as a function of frequency. This involves the phase sensitive measurement of current and voltage applied to a device under test while the measurement frequency is varied over the course of the measurement. Key specifications of an impedance analyzer are the frequency range, impedance range, absolute impedance accuracy and phase angle accuracy. Further specifications include the ability to apply voltage bias and current bias while measuring, and the measurement speed

An ultrasonic transducer/array is a crucial component of an ultrasonic scanner such as those widely used in clinical diagnosis . There has been a growing interest in transducers in the frequency range higher than 100 MHz for applications in single cell analysis, acoustic trapping, and studying mechanotransduction with improved lateral resolution . In these applications, a highly focused acoustic beam is required . When making highly focused ultrasonic transducers, those having a large aperture are much easier to press-focus. A transducer with a large aperture also generates a stronger pressure field under the same input parameters, such as voltage and pulse duration. Therefore, to generate the same acoustic pressure field, a transducer with a large aperture is safer and more effective than a transducer with a small aperture because lower input voltage and shorter pulse duration are needed.


Item Performance


Product advantage

portableLarge touch screen


Length:24cmwidth:19cmfront height:5cmbehind height:10cm

Frequency range


Test item

Admittance circle diagram and logarithmic graph and other tens data

Test precision

< 0.1%

Test speed


Frequency precision


Phase resolution


Work temperature

1040 degree centigrade

Impedance range


Stepped frequency



AC100VAC250V5060Hz, 30W


All Ultrasonic Components And Equipment

 ultrasonic impendance analysis


 All kinds of ultrasonic device measuring impedance characteristics including: piezoelectric ceramics, transducer, ultrasonic cleaning machines, ultrasonic plastic welding machine, acoustic, magnetostrictive materials, ultrasonic grinding mill, ultrasonic atomizer, ultrasonic teeth cleaning and reversing radar, ultrasonic ranging, ultrasonic emulsification, ultrasonic cleaning, ultrasonic motor, and so on:

  • Auto parts manufacturers (maintenance, horn manufacturing and receipt inspection)

  • Ultrasonic welder manufacturers (tuning process, quality control and horn development)

  • Ultrasonic cleaner manufacturers (tuning process and quality control)

  • Medical equipment manufacturers (quality control and receipt inspection)

  • Healthcare industry (maintenance, horn manufacturing and receipt inspection)

  • Mattress manufacturers (maintenance and receipt inspection)

  • Wire dies manufacturers (maintenance and horn manufacturing)

  • White line manufacturers (receipt inspection)

  • Footwear manufacturers (maintenance and horn manufacturing)

  • Underwear manufacturers (maintenance and horn manufacturing)

  • Fish finder manufacturers (quality control and underwater transducers development)

  • Eyeglass lenses manufacturers (maintenance of cleaning systems)

  • Fishing lures manufacturers (maintenance and horn manufacturing)

  • Water and energy meters manufacturers (maintenance and horn manufacturing)

  • Mining industry (maintenance and ultrasonic cleaning boxes refurbishing)

  • Ultrasonic additive industry (maintenance, horn manufacturing and development)

  • Research groups (piezoelectric and ultrasonic devices development)

  • R&D departments (product development)

  • Sensors manufacturers (maintenance, quality control and receipt inspection)

Service and shipment

  • Warranty one year for transducer.

  • You can contact us for technical inquiry any time.

  • We supply OEM service for oversea customer, also will keep Confidentiality for our customers.

  • We supply customized products service for small quantity also.

  • Shipment by FED-EX /DHL

  1. Who should buy impedence analyzer?

The one who use ultrasonic equipment frequencly should buy the impedence analyzer.

  2. What's the function impedence analyzer?

It can help us to get all parameter of the ultrasonic component.


 3.Does it helpful to our producing?

  Yes, it can help find the problem fast, so that you will not be baffled, when your equipment not work.


 4.Does the ultrasonic impedence analyzer suit for all ultrasonic area?

  Yes, it can work for ultrasonic compoents in any area, like ultrasonic caleaning ,ultrasonic welding ,ultrasonic sonochemistry, ultrasonic cutting, ultraosnic sealing.

 5.What's the uselife of this equipment?

 8~10 years


How to balance an ultrasonic transducer by ultrasonic impedence analyzer ?

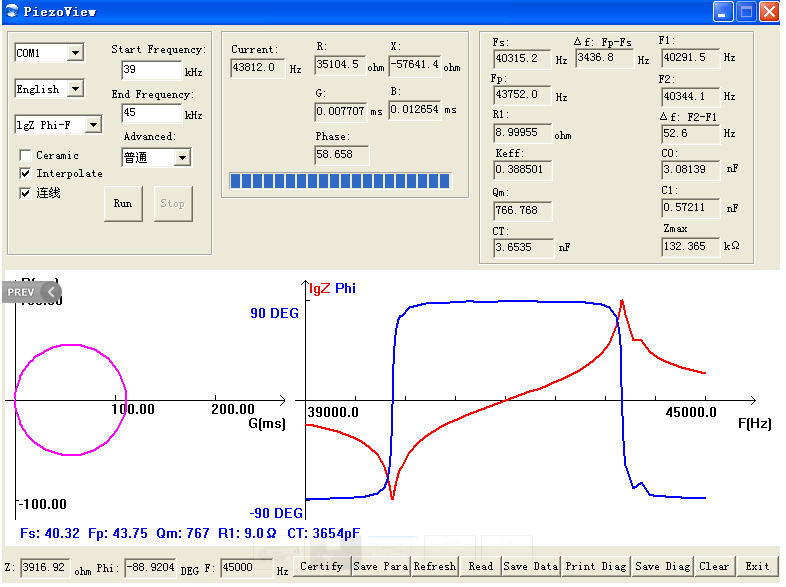

Piezoelectric ceramic ultrasonic transducer is the core component of ultrasonic products. The quality of the quality star directly affects the performance of the entire ultrasonic equipment. Our transducers are strictly tested by the piezoelectric ceramic evaluation system. The impedance analyzer can be used to evaluate piezoelectric ceramic sheets, piezoelectric transducers, and entire vibration systems (transducers + horns, molds) and other devices. The performance of the device is good or bad. Analysis of ultrasonic device equipment with an impedance analyzer, the most important parameters are as follows:

1. Fs: The mechanical resonant frequency, ie the operating requency of the vibration system, should be as close to the expected value as possible in the design.

This is the most important paramter as I think in the matching work.

For a cleaning machine, the higher the resonant frequency consistency of the vibrator, the better.

For plastic welders or ultrasonic machining, if the horn or ultrasonic mold is not designed properly, the resonant frequency of the vibrator will deviate from the operating point.

2. Gmax: Conductance at resonance, the conductance of the vibration system when operating, which is the reciprocal of the dynamic resistance. The bigger the better under the same support conditions, Gmax = 1. /R1. Generally for cleaning or welding vibrators, generally between 50ms ~ 500ms. If it is too small, in general, the vibrator or vibration system will work.

There are problems such as circuit mismatch or low conversion efficiency and short life of the vibrator.

3. C0: Capacitance of the static branch in the equivalent circuit of the piezoelectric device, C0=CT-C1 (where: CT is the free capacitance at 1 kHz, and C1 is the equivalent of the piezoelectric device.

The capacitor star of the dynamic branch in the road). When using, balance C0 with inductance.

In the circuit design of the cleaning machine or ultrasonic processing machine, correctly balancing C0 can increase the power factor of the ultrasonic power supply. There are two methods for using the inductance balance.

Parallel tuning and series tuning.

4. Qm: mechanical quality factor, determined by the conductance curve method, Qm=Fs/ (F2 - F1), the higher the Qm, the better, because the higher the Qm, the higher the vibrator efficiency;

Qm must match the power supply. When the Qm value is too high, the power supply cannot be matched.

For cleaning the vibrator, the higher the Qm value, the better. In general, the Qm of the cleaning vibrator should reach 500 or more. If it is too low, the vibrator efficiency is low.

For the ultrasonic welding machine, the Qm value of the vibrator itself is generally around 500, and after adding the horn, it generally reaches about 1000, with the horn it can reach 1500~3000. If it is too low, the vibration efficiency is low, but it should not be too high, because the higher the Qm, the narrower the working bandwidth, the hard power supply is difficult to match, and the power supply is difficult.

To work at the resonant frequency point, the device does not work.

5.F2, F1: the half-power point frequency of the vibrator. For the entire vibration system (including the horn and the mold) for ultrasonic machining, F2-F1 is greater than 10 Hz, otherwise the frequency band is too narrow, the power supply is difficult to operate at the resonance frequency point, and the device cannot work.

F2 - F1 is directly related to the Qm value, Qm = Fs / (F2- F1).

6. Fp: anti-resonance frequency, the resonant frequency of the parallel branch of the piezoelectric vibrator. At this frequency, the impedance of the piezoelectric vibrator is the largest.

7. Zmax: anti-resonant impedance, under normal circumstances, - the anti-resonant impedance of a transducer is above several tens of kilohms, if the anti-resonance impedance is relatively low, the life of the vibrator is relatively short.

8. CT: Free capacitance, the capacitance value of the piezoelectric device at 1 kHz. This value is consistent with the value measured by the digital capacitance meter. This value is subtracted from the dynamic capacitor C1.

This is also an important paramter in the matching work.

The real static capacitance C0 can be obtained. C0 needs to be balanced by an external inductor. C1 participates in the star conversion when the system is working, and does not have to be balanced.

9. R1: Dynamic resistance, the resistance of the series connection of the piezoelectric vibrators, the smaller the better under the same support conditions. For cleaning or welding the vibrator, if R1 is too large, there is a problem with the vibrator.

It is a reference parameter to check the transducer quality.

10. Keff: effective electromechanical coupling coefficient, - in general, the higher the Keff, the higher the conversion efficiency
