What Is Ultrasonic Impedance Analyzer?

What Is Ultrasonic Impedance Analyzer?

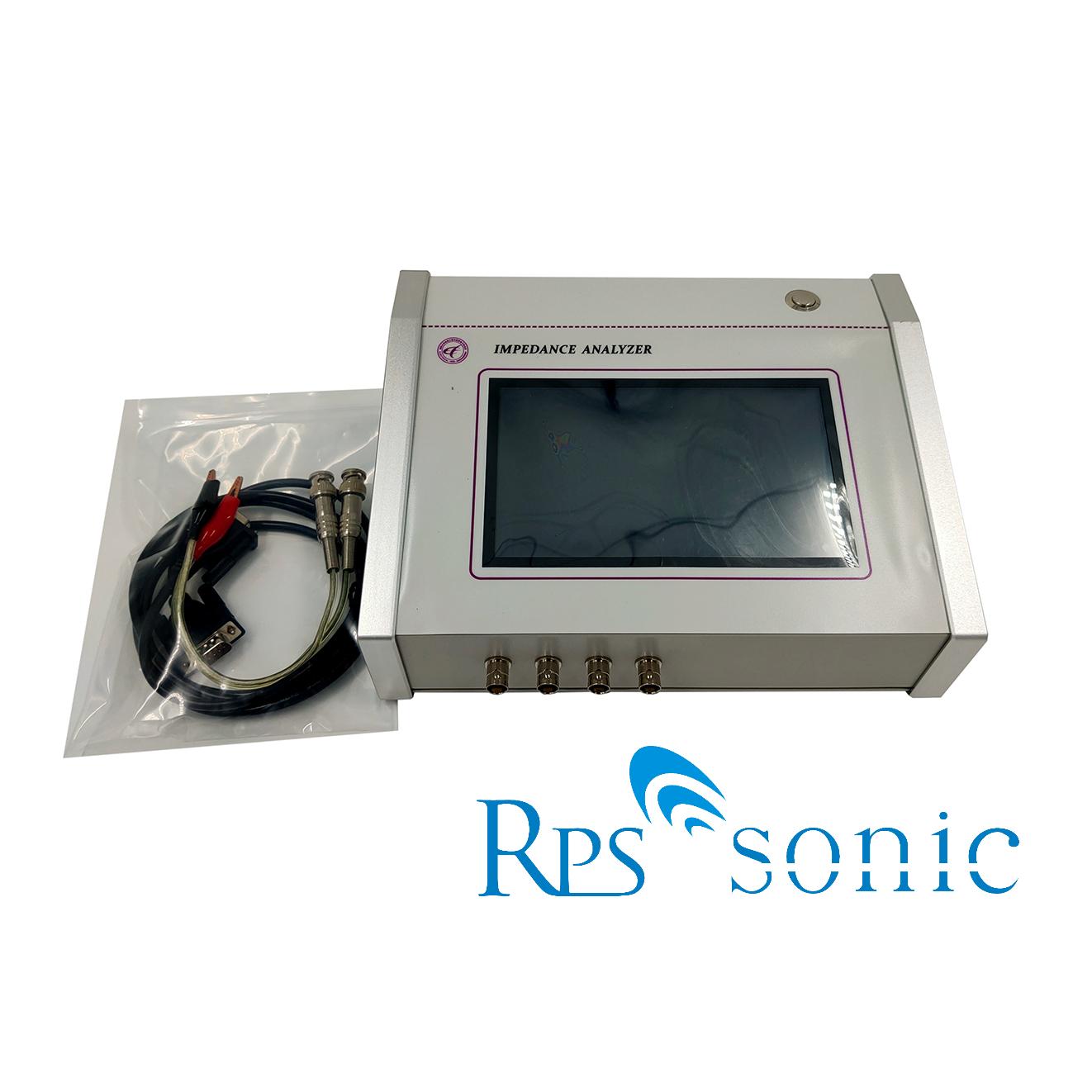

An ultrasonic impedance analyzer is a specialized electronic measuring device used to accurately determine the electrical performance parameters of various ultrasonic devices and equipment, including piezoelectric ceramics, ultrasonic transducers (oscillators), and amplitude transformers (ultrasonic molds).

Its core function is to provide a complete solution for quality inspection, performance evaluation, and frequency matching of transducers and tool heads, which are crucial in applications such as ultrasonic carpet cutting. Its main functions and working principles can be summarized as follows:

Core Functions and Principles:

**Measurement of Key Electrical Parameters:** It can accurately measure and evaluate more than a dozen core parameters related to the performance of piezoelectric ultrasonic devices. These parameters directly determine whether the ultrasonic equipment can operate efficiently and stably.

**Resonant Frequency (Fs):** The "optimal operating point" frequency at which the device operates with the highest efficiency, and the impedance is lowest at this frequency.

**Dynamic Resistance (R1):** The equivalent resistance of the device in the resonant state. Its value affects energy conversion efficiency; the smaller the R1, the better the performance.

**Quality Factor (Qm):** An indicator of the energy storage and consumption efficiency of the device. A higher Qm value indicates that the energy is more concentrated and the loss is lower near the resonant frequency.

Static capacitance (C0) and dynamic capacitance (C1)/dynamic inductance (L1): These parameters collectively depict the equivalent circuit of the piezoelectric device's electrical behavior and are the basis for impedance matching analysis.

Visual Performance Analysis: In addition to providing data, the analyzer can visually generate two key graphs.

Admittance Circle Plot: This is a polar graph. By observing the regularity of the circle and the presence of "parasitic small circles," one can visually determine whether the transducer or amplitude transformer has cracks, delamination, or assembly defects. A "clean" circle is an indicator of good device performance.

Logarithmic Coordinate Plot: Displays the impedance amplitude and phase as a function of frequency, used to assist in analyzing the frequency response characteristics of the device.

Workflow:

Connection: Connect the transducer or amplitude transformer under test to the analyzer using test leads.

Settings: Set a start and stop frequency on the equipment. For example, to test a 28kHz transducer, the scan can be set from 27kHz to 29kHz.

Test: Upon initiating the scan, the analyzer outputs a sweep frequency signal to excite the test piece and acquires its response.

Output: Typically, within a few seconds to tens of seconds, the analyzer displays all measured parameters and analytical graphs such as the admittance circle and logarithmic curve on the screen.

Functions:

Ensuring Equipment Performance: Measurement ensures that the transducer's resonant frequency matches the drive power supply, allowing it to operate at its optimal state and guaranteeing cutting efficiency.

Guiding Mold Manufacturing and Repair: The resonant frequency of each designed, machined, or repaired amplitude transformer (ultrasonic mold) can be measured to ensure it meets design requirements, directly determining cutting accuracy and quality.

Fault Diagnosis: By observing the shape of the admittance circle, it's easy to determine if the transducer has internal cracks due to aging or overload, or if the amplitude transformer is improperly installed; it's an effective "check-up" tool.

Providing Quality Inspection Standards: It's used to test key parameters during transducer procurement or production, serving as a standard means of incoming material inspection and quality control.

In summary, an ultrasonic impedance analyzer is a powerful diagnostic tool that transforms invisible and complex electrical properties into a series of precise data and intuitive graphs, providing a scientific basis for the design, production, and maintenance of ultrasonic equipment.
