Ultrasonic Welding vs RF Welding Which Method Fits Your Project

Choosing between ultrasonic welding vs RF welding depends on your project. You need to consider the materials, weld size, and what your industry requires. It's essential to understand how each method works. Additionally, you should know which materials are best suited for each technique. Look at the table below for a quick comparison:

You can trust RPS-SONIC to help you choose the right ultrasonic solution. Consider your material and project goals as you read.

Key Takeaways

• Ultrasonic welding is best for small, hard plastics like ABS and acrylic. RF welding works better for big, bendy materials like PVC. Think about the material before picking a welding method. Some plastics work better with ultrasonic welding. Other plastics need RF welding instead. Ultrasonic welding is fast, so it is good for making many items quickly. RF welding takes more time because it uses heat. Both ways make strong bonds. Ultrasonic welding makes cleaner welds without glue. This is important for things used in medicine and food. RF welding is great for making airtight or watertight seals. That is why it is used for medical bags and inflatable products. Think about how big your project is. Ultrasonic welding is better for small parts. RF welding is better for big seams and flexible materials. Cost is important too. Ultrasonic welding machines usually cost less and can do more jobs than RF welding machines. You can ask experts like RPS-SONIC for help. They can help you pick the best welding method and equipment for your project.

Ultrasonic Welding Overview

How Ultrasonic Welding Works

Technology and Process

Ultrasonic welding joins materials using fast vibrations. It is a type of frictional welding. The machine sends quick, tiny vibrations to where the materials meet. These vibrations make heat from friction. The heat melts the thermoplastic at the joining spot. When the melted plastic cools, it sticks together and forms a strong bond.

• The machine usually works at 20 kHz.

• Friction starts the welding process.

• After the material gets hot enough, viscoelastic heating happens.

You do not need glue or extra parts for this method. The weld is clean and finished quickly.

Equipment Used

Ultrasonic welding needs special machines. The main parts are:

• An ultrasonic generator makes high-frequency electricity.

• A converter changes electricity into vibrations.

• A booster makes the vibrations stronger.

• A horn sends the vibrations to the materials.

• A fixture holds the pieces in place.

All these parts work together to send vibrations to the right spot. You can use different horns and fixtures for different shapes and sizes.

RPS-SONIC Ultrasonic Welding Solutions

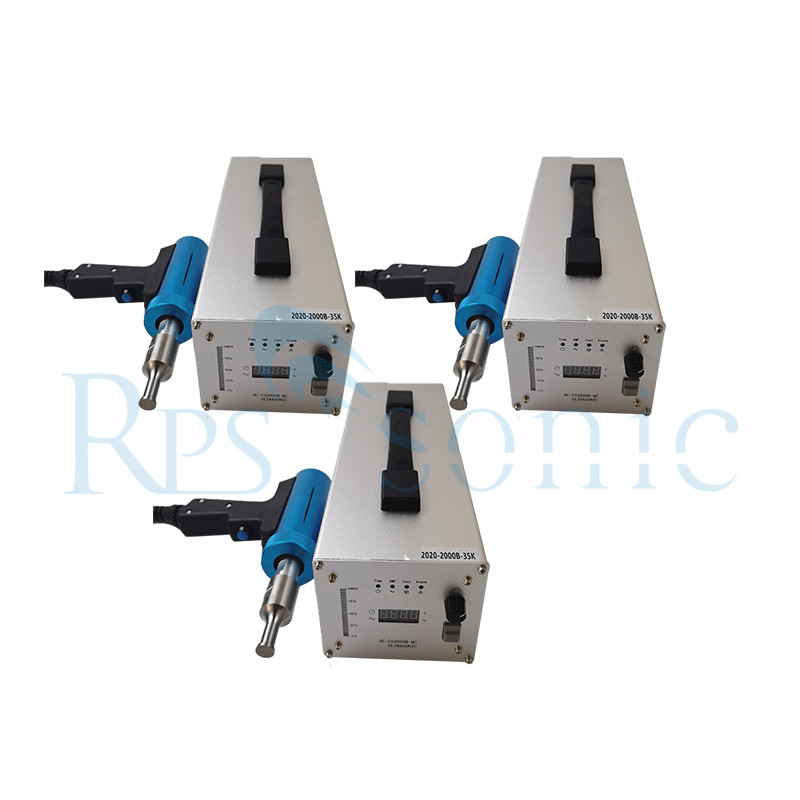

Ultrasonic Portable Welding Equipment

RPS-SONIC has portable ultrasonic welding tools. These tools are light and easy to carry. You can use them for plastics, textiles, and non-woven fabrics. The tools are simple to use and have safety features. You can change horns and probes to fit your project.

Ultrasonic Welding Machine

RPS-SONIC also sells ultrasonic welding machines for bigger jobs. These machines have touch screens and smart frequency controls. They make welds that are always accurate. The machines use less power and work fast. They are good for car, medical, and textile industries.

RPS-SONIC checks quality very carefully. Every ultrasonic transducer is tested for 24 hours with rising temperature. The company checks impedance and tests every amplifier for leaks. You get free technical help, custom solutions, and a one-year warranty.

Materials for Ultrasonic Welding

Compatible Plastics and Fabrics

Ultrasonic welding works for many plastics and fabrics. Amorphous polymers like ABS, acrylic, polycarbonate, and PVC are best. These plastics need less energy to weld. Some semi-crystalline polymers, like polyethylene and polypropylene, can be welded too, but it is harder.

Material Limitations

You need to check a few things before picking ultrasonic welding:

• How stiff the material is

• How fast it melts

• If the chemicals match

• How much water is in the material (important for nylon)

• If there are fillers, lubricants, or flame retardants

1. Make sure the materials match chemically.

2. Different plastics only weld if their melt temperatures and structures are close.

3. Amorphous polymers weld best with each other.

If you follow these steps, your welds will be strong and reliable.

Applications of Ultrasonic Welding

Industry Examples

Ultrasonic welding is used in many industries. This method makes strong and clean bonds. You do not need glue or screws. The table below shows how different industries use ultrasonic welding and why it is good for them:

Ultrasonic welding is used a lot because it works fast. It also gives results you can trust. These industries use ultrasonic welding for safety and quality.

Project Scenarios

You can use ultrasonic welding for many projects. In a factory, you might join plastic parts for toys or electronics. If you design medical tools, you want clean and sealed joints. This keeps patients safe. You may also need waterproof seams for outdoor gear or filters.

Here are some common project examples where ultrasonic welding is helpful:

• You want to make disposable hygiene products that must stay sealed and safe.

• You need to put together small plastic parts for home appliances or gadgets.

• You build airplane parts where every gram is important and strong bonds are needed.

• You make water filters that cannot leak.

• You design medical devices that must stay clean and follow strict rules.

Tip: If you pick ultrasonic welding, you get a fast process. You do not need extra materials. You also help the environment by using less energy and making less waste.

Many industries use ultrasonic welding because it is quick and strong. It also gives clean results. You can trust this method for projects that need high quality and safety.

RF Welding Explained

How RF Welding Works

Technology and Process

RF welding uses high-frequency electromagnetic energy to join materials. This method is mostly used with plastics that have polar molecules. The machine sends radio waves into the plastic. These waves make the molecules shake and heat up inside. The heat melts the plastic where it needs to join.

Here are the basic steps of rf welding:

1. Heating: The rf energy warms the plastic until it melts.

2. Sealing: The machine presses the layers together with sealing dies.

3. Cooling: The rf energy stops, and the plastic cools while pressed.

This process makes strong and leak-proof seals. RF welding works well for bigger parts and soft, bendy materials. It is different from ultrasonic welding.

Equipment Used

You need a special rf welding machine for this process. The main parts are:

• An rf generator makes high-frequency energy.

• Sealing dies shape and press the plastic.

• A pneumatic press pushes the material together.

• Control panels set the time and power.

The machine uses sensors to control how long each step takes. You can change the pre-seal, main seal, and cool times for each project. This helps you get the best welds for different plastics.

Materials for RF Welding

Suitable Materials (PVC, PU, etc.)

RF welding works best with thermoplastics that have polar molecules. These materials are used in many products:

• Polyvinyl Chloride (PVC)

• Polyurethane (PU)

• Thermoplastic Elastomers (TPE)

• Ethylene Vinyl Acetate (EVA)

• Thermoplastic Polyurethane (TPU)

• Some kinds of nylon

These plastics absorb high-frequency energy well. You get strong, flexible, and leak-proof welds. Many industries use rf welding for things that need to hold air or liquid.

Material Limitations

RF welding does not work for every plastic. Non-polar plastics like polyethylene or polypropylene do not heat up well in this process. If you need to weld these plastics, ultrasonic welding may be better. Always check the material type before you start.

Applications of RF Welding

Industry Examples

RF welding is used in many industries. The table below shows some examples:

RF welding is chosen for projects that need strong, airtight, or watertight seals.

Project Scenarios

You might use rf welding for inflatable products, medical bags, or waterproof covers. It works well for joining big sheets of flexible plastic. For example, you can make tents, tarps, or blood bags. When you need a clean, strong seam on soft materials, rf welding gives good results.

Tip: If your project uses PVC or PU and needs a long, flexible seam, rf welding is often the best choice. For small, hard parts, ultrasonic welding may be better.

Think about your material and weld size to pick the right method.

Ultrasonic Welding vs RF Welding: Comparison

Material Compatibility

Plastics, Fabrics, and More

It is important to know which materials work best for each method. Ultrasonic welding and rf welding are good for different things. Ultrasonic welding works well with many plastics. It is best for amorphous plastics like ABS, acrylic, and polycarbonate. You can also use ultrasonic welding for some fabrics and non-woven materials. This makes it a smart choice for toys, electronics, and hygiene products.

Rf welding is not the same. You use rf welding for plastics with polar molecules, like PVC and PU. It also works for some nylons and thermoplastic elastomers. Rf welding is great for soft and bendy materials. It is used for things like inflatable products and waterproof covers. You can join big sheets of plastic with rf welding. This is important for tents, tarps, and medical bags.

Overlaps and Differences

Sometimes, both methods can join the same plastics and fabrics. But ultrasonic welding is better for small, hard parts. Rf welding is better for big, soft, or flexible things. If you need to weld polyethylene or polypropylene, ultrasonic welding is usually the only way. If your project uses PVC or PU and needs long, bendy seams, rf welding is the best choice.

Tip: Always check what your material is before you pick a welding method. This helps you avoid weak spots or broken products.

Weld Quality and Strength

Precision and Durability

You want your welds to be strong and last a long time. Both ultrasonic welding and rf welding make tough bonds, but they do it differently. Ultrasonic welding lets you control the weld very well. You can make small, careful welds that are very exact. This is important for medical tools, electronics, and small plastic parts. The bond is strong and always the same, so you get good results every time.

Rf welding also makes strong seals. It works best for big areas and soft materials. You get seams that keep air and water out. This is important for things that hold air or liquid. Rf welding is perfect for inflatable items, medical bags, and outdoor gear.

Visual Finish

You might care about how your finished product looks. Ultrasonic welding and rf welding make different looking joints. Ultrasonic welding makes clean and neat joints. You do not see extra plastic or burn marks. This is good for things that need to look nice, like products people use or medical tools.

Rf welding can leave a line or edge you can see, especially on thick or soft materials. The seam is smooth and strong, but it might look different from the rest of the item. For many outdoor or work products, this is not a problem. If you want a perfect look, ultrasonic welding is usually better.

Speed and Efficiency

Cycle Times

You want to finish your work fast. Short cycle times help you make more things quickly. Ultrasonic welding and rf welding have different speeds. Ultrasonic welding is known for being fast. It heats up just the spot you need, so you can weld parts in seconds. This is great if you need to make a lot of things.

Rf welding takes more time. The machine heats the whole area, so you have to wait longer. You need to wait for the plastic to heat, seal, and cool down. This makes rf welding slower, especially for big parts.

Here is a simple table to compare how long each method takes:

You can see that ultrasonic welding is much faster if you need speed.

Setup and Changeover

You also want to change jobs easily. Ultrasonic welding machines, like the ones from RPS-SONIC, let you switch horns and fixtures quickly. This means you can start new projects fast. Rf welding machines need different dies for each shape or size. Changing dies takes more time and work.

Note: If you need to make lots of different things, ultrasonic welding helps you save time with quick setup and fast welding.

Ultrasonic welding and rf welding are both useful. You should pick one based on your material, how you want it to look, and how fast you need to work.

Application Types

Small Parts vs Large Seals

You need to pick the right welding method for your project size. Ultrasonic welding is best for small parts and tight joints. It joins tiny plastic pieces, medical tools, or electronics. The welds are neat and look good.

Rf welding works better for big seals or flexible materials. You use rf welding to make long seams in tents, tarps, inflatable items, or medical bags. It handles large sheets of plastic and makes strong, airtight seals. This is good for products that must hold air or water.

Tip: Use ultrasonic welding for small, hard parts. Choose rf welding for big, bendy seams.

Industry Preferences

Different industries like different welding methods. Ultrasonic welding is common in cars, medical, and electronics factories. These jobs need careful and clean joints. The process helps meet strict quality rules.

Outdoor gear, packaging, and medical supply factories often use rf welding. They need strong, flexible seals for products that must stay airtight or watertight. Rf welding is used for inflatable items, blood bags, and waterproof covers.

Cost and Investment

Equipment and Operation

You need to think about equipment cost and daily use. Ultrasonic welding machines cost between $18,000 and $45,000. Most factories use a 20 kHz, 2.5-3.5 kW system, costing about $30,000. Prices are lower now, so machines are easier to buy.

Rf welding machines can cost more, especially for big jobs. You need special dies and presses for each product shape. This makes setup cost higher. Both methods need skilled workers, but ultrasonic welding lets you change tools faster and lose less time.

Note: Ultrasonic welding saves time and money with fast setup and quick work.

Maintenance

You need to plan for upkeep costs. Ultrasonic welding equipment costs $500 to $1,200 each year for maintenance. You spend less on repairs than other systems. Quick tool changes mean less lost time.

Rf welding machines may need more maintenance, especially for big or tricky products. You must check dies and presses often. Maintenance keeps your machines safe and working well.

Regular upkeep stops accidents and keeps your welding safe and smooth.

Safety and Environment

Operator Safety

You must keep yourself and your team safe when welding. Both ultrasonic welding and rf welding need regular checks. You need training to know the dangers. Always wear safety gear like ear protection and gloves.

Risks include hearing damage from loud noise, getting caught in moving parts, and vibration problems. Watch for bad air and fumes. Good airflow helps you breathe safely.

• Ear protection is needed for both methods.

• Keep hands away from moving parts.

• Regular checks help follow safety rules.

Safety tip: Train your team and check machines often. This lowers accident risks and keeps your workplace safe.

Environmental Impact

You can help the planet by using green welding methods. Ultrasonic welding and rf welding use less energy than old ways. You make less pollution and waste. Using eco-friendly materials and smart techniques lowers your impact.

These steps save resources and fight climate change. You cut greenhouse gases and protect nature.

• Green welding uses less energy.

• You make less waste and fewer emissions.

• Eco-friendly materials make your products better for the earth.

If you care about nature, ultrasonic welding and rf welding are cleaner and more efficient choices.

Pros and Cons of Each Method

Ultrasonic Welding Pros

Speed and Precision

Ultrasonic welding is very fast. It can finish a weld in less than one second. This lets you make lots of parts quickly. The process is very accurate. It controls the weld to just a few microns. Every weld is the same each time. You do not need to worry about heat hurting your parts. It uses less energy than older ways. This saves money and helps the planet. You can use ultrasonic welding in automatic factories. This makes your work easier and faster.

• Makes parts quickly in big batches

• Controls welds for small or delicate items

• Every weld is the same

• Uses less energy

• Easy to use in automatic lines

Clean, Adhesive-Free Welds

Ultrasonic welding makes clean welds every time. You do not need glue or extra stuff. This keeps your products safe and clean. There are no sticky leftovers. Clean welds help you follow strict rules for food and medical items. You only need the plastic material. This saves money because you do not buy glue. The process is good for the earth because it does not use harsh chemicals. You can change tools for different jobs. This gives you more choices for your projects.

• No glue or chemicals needed

• Welds are clean with no mess

• Saves money by not using extra materials

• Safe for things that touch food or skin

• Good for the environment

Ultrasonic Welding Cons

Material and Size Limits

Ultrasonic welding works best for small or medium parts. The weld size depends on the horn. Most welds are only a few centimeters wide. If you need to join big plastic pieces, this method may not work. It works best with similar plastics. If you use very different materials, you may need another way. For big parts, you can weld at many spots, but not all at once.

Tip: Always check your material and part size before you pick ultrasonic welding. This helps you avoid weak welds or slow production.

RF Welding Pros

Large Seals and Soft Materials

RF welding is good for big seals and soft materials. It makes strong seams that keep air and water out. You see this in medical bags and inflatable items. The process heats the material evenly. This gives you clean welds on thin or bendy plastics. RF welding is fast for big jobs. The seals last a long time, even in hard conditions.

Versatility with Complex Shapes

RF welding is flexible for many shapes and sizes. You can weld tricky patterns and thin materials easily. It works well for medical tools, packaging, car parts, and clothes. You can make strong welds on curved or detailed items. This helps you do many projects with one machine.

• Welds tricky shapes and thin materials

• Used for medical, packaging, car, and textile jobs

• Clean welds on simple and detailed parts

• Fits many project needs

Note: If you need big, flexible, or tricky seams, RF welding is a good choice. You get clean welds and strong results for many jobs.

RF Welding Cons

Material Restrictions

You need to know that RF welding does not work with every material. This method only works well with plastics that have polar molecules, such as PVC or PU. If you try to weld non-polar plastics like polyethylene or polypropylene, you will not get strong or reliable bonds. This means you must choose your materials carefully before starting your project.

Sometimes, you may want to use fabrics or films that are too thin for RF welding. For example, dry sacks often use very thin fabrics. These materials do not weld consistently with RF energy. You might have to change your design or pick a different material. This can affect how your product performs or how it looks. You may also find that some coatings or additives in plastics block the RF energy. This makes welding even harder.

Here is a table that shows the main drawbacks you should consider:

Note: Always check if your material is compatible with RF welding before you start. This helps you avoid weak welds and wasted time.

Equipment Size

You will notice that RF welding machines are often large and heavy. These machines take up a lot of space in your workshop or factory. If you need to move your equipment or work in a small area, this can be a problem. The size of the machine also means you may need more power and special installation.

RF welding works best for flat seams. If your project has complex shapes or curves, you may run into trouble. The machine struggles with these shapes and often needs custom dies. These dies can be expensive and take time to make. You might find that making a new die for each shape slows down your production.

• Large RF welding machines are not easy to move.

• You need special dies for each shape, which adds cost and time.

• Flat seams are easy, but complex shapes are difficult.

If you plan to make many different products, you should think about how much space and money you need for new dies and machine setups. RF welding gives strong, reliable seams for big, flat items, but it is less flexible for small or detailed parts.

Tip: If your project needs many shapes or you have limited space, consider if RF welding is the best fit. Always plan for the size and cost of the equipment before you decide.

Choosing the Right Welding Method

Key Project Questions

When you pick a welding method, ask yourself some key questions. These questions help you find the best way for your project.

Material Type

First, look at what material you want to weld. Some plastics work better with ultrasonic welding. Others need RF welding. For example, PVC or PU works well with RF welding. This gives you strong and airtight seams. If you use ABS, acrylic, or polycarbonate, ultrasonic welding is a good choice. Always check if your material fits the method you want to use.

Weld Strength and Appearance

Think about how strong you want the weld to be. Do you need a seam that keeps air or water in? RF welding makes very strong and leak-proof seals. If you want a clean look with no marks, ultrasonic welding is best. It gives you neat and smooth joints. This matters for things people see or use every day.

Production Volume

Ask yourself how many parts you need to make. If you need to make lots of items fast, ultrasonic welding is a smart pick. It works quickly and fits well in automatic lines. RF welding is better for bigger parts or long seams. But it can take more time for each weld.

Budget

You should also think about how much money you want to spend. Ultrasonic welding machines can cost less and are more flexible. RF welding machines often cost more, especially if you need special dies for each shape. Look at your project size and budget before you choose.

Here is a table to help you compare the main points:

When to Choose Ultrasonic Welding

Best-Fit Scenarios

Pick ultrasonic welding when you want fast, clean, and exact welds. This method is best for small or medium parts. If you need to join plastics like ABS, acrylic, or polycarbonate, ultrasonic welding makes strong bonds. It is also good for projects that need a neat look with no extra marks.

You can use ultrasonic welding for:

• Near field welding, when you want less visible marks and a wide processing window.

• Nylon assemblies, if you design them with energy directors to keep them strong.

• Dry-as-molded parts, so you do not get holes or weak spots.

This method works well in car, electronics, medical, and consumer goods industries.

RPS-SONIC Product Recommendations

RPS-SONIC has advanced ultrasonic welding tools for many jobs. You can use their portable tools for flexible work or their machines for bigger tasks. These products give you:

You can use RPS-SONIC ultrasonic welding for food packaging like salads, ready-meals, drink cartons, and milk seals. The equipment uses low energy only when needed. This saves money and helps the planet. You also get free technical help and custom solutions from the RPS-SONIC team.

When to Choose RF Welding

Best-Fit Scenarios

RF welding is best when you need strong, airtight, or watertight seals. Use this method for projects with flexible materials like PVC, PU, or other polar thermoplastics. RF welding works well for thick materials and big seams. It is the top choice for making seals that do not leak.

You can use RF welding for:

• Medical bags and blood bags that must not leak.

• Inflatable products, tents, and tarps that need long, flexible seams.

• Car parts that need strong and reliable seals.

If your project uses big sheets of flexible plastic and needs to hold air or water, RF welding gives you the best results.

Tip: Always match your material and project needs to the welding method. This helps you get strong, reliable, and cost-effective results.

Avoiding Common Mistakes

Choosing the right welding method can be tricky. You want strong, clean welds that last. Many people make mistakes when they pick a method or set up their equipment. You can avoid these problems if you know what to look for.

Material Compatibility

You must check if your materials match the welding method. If you use ultrasonic welding, you need plastics that melt at similar temperatures. Some plastics, like ABS and polycarbonate, work well together. Others, like polyethylene and polypropylene, need special care. If you try to weld materials that do not match, your weld will be weak or may fail.

You should also look at the thickness and shape of your parts. Ultrasonic welding works best for small or medium parts. If your parts are too big or too thick, the weld may not hold. RF welding is better for large, flexible materials like PVC or PU. Always check the material type before you start.

Here are some common mistakes you can avoid:

• Using materials that do not match the welding method.

• Trying to weld plastics with very different melting points.

• Ignoring the thickness or shape of your parts.

• Not checking if the material has fillers or coatings that block the weld.

Tip: Always test your materials before you start production. This helps you find the best settings and avoid weak welds.

Production Needs

You must plan your production process. If you rush or skip steps, you may get poor results. Cleanliness is very important. Dirt, paint, or oil can ruin your weld. Make sure your parts are clean before you weld them.

You need to use the right equipment for your materials. If your welding machine is too small, it will not make strong welds. If it is too big, you may waste energy and money. You should also check the size of the contact tip. If it is too small or too large, the weld bead will not form correctly.

Keep your welding speed steady. If you move too fast, the weld may not stick. If you go too slow, you may burn the material. Protect the weld area from wind. Wind can blow away shielding gas and cause weak welds.

Here is a list of mistakes to watch for:

• Not cleaning parts before welding.

• Using cheap gas that lowers weld quality.

• Setting the wrong polarity for the weld.

• Choosing the wrong contact tip size.

• Welding too fast or too slow.

• Not protecting the weld area from wind.

• Using a machine that is not sized for your material.

• Skipping regular maintenance on wire feeder parts.

• Not matching the filler material's strength.

• Leaving big gaps between panels.

Note: Careful setup and regular checks help you get strong, clean welds every time. You can save time and money by avoiding these mistakes.

Consulting Experts

RPS-SONIC Support and Services

You may feel unsure about which welding method fits your project. You can ask experts for help. RPS-SONIC offers support and services to guide you. The team checks your application details and equipment needs before making any recommendations.

You can get free technical advice from RPS-SONIC. The company helps you design a welding program that fits your materials and production goals. You can ask for custom solutions if your project needs something special. RPS-SONIC gives you a one-year warranty on ultrasonic welding equipment. You also get fast delivery and OEM services.

If you want to avoid mistakes, you can talk to RPS-SONIC. The team helps you choose the right ultrasonic welding machine or portable equipment. You can trust their experience in ultrasonic technology. They make sure you get the best results for your project.

Tip: Reach out to RPS-SONIC for expert advice. You can get help with material selection, equipment setup, and production planning. This makes your welding process easier and more reliable.

You now know ultrasonic welding is good for small, hard plastics. RF welding works better for big, bendy materials like PVC. Always pick the welding method that matches your project and materials. RPS-SONIC can help you choose the best ultrasonic solution. Their experts give you support when you need it. To begin, look at your material and how the pieces fit together. Pick the welding process that works for your job. Get your team and tools ready so work is safe and fast. You can ask RPS-SONIC for help and advice on what products to use.

FAQ

What materials are best suited for ultrasonic welding?

Ultrasonic welding works best with hard plastics like ABS, acrylic, and polycarbonate. These are called amorphous plastics. Some semi-crystalline plastics can be welded, but it is harder. Always check if your material will work before you start.

Can ultrasonic welding join large parts?

Ultrasonic welding is good for small or medium parts. The weld size depends on the horn used. For bigger parts, you might need RF welding or use more than one weld to make it strong.

Is RF welding suitable for all plastics?

No, RF welding only works with polar thermoplastics like PVC, PU, and some nylons. Plastics like polyethylene and polypropylene do not work well because they do not absorb RF energy.

How does RF welding affect the appearance of the final product?

RF welding makes strong seams that can leave a line or edge you can see. It gives a smooth finish on soft, thin materials. This is good for products where how it looks is important.

Which method is faster: ultrasonic or RF welding?

Ultrasonic welding is usually faster and can finish welds in seconds. RF welding takes longer, especially for big or thick parts, because it needs more time to heat and cool.

What safety precautions should I take during welding?

Always wear ear protection and gloves when welding. Make sure your workspace has good airflow. Check your machines often for damage. Training helps you stay safe and avoid accidents with both types of welding.

How much do ultrasonic and RF welding machines cost?

Ultrasonic welding machines cost about $18,000 to $45,000. RF welding machines can cost more, especially for big or special jobs. Think about your project size and budget before you choose.

Do I need professional help to select the best welding method?

Yes, talking to experts like RPS-SONIC helps you pick the right method. They look at your materials, project goals, and how many parts you need. Then they suggest the best ultrasonic or RF welding solution for you.
