Silent Casting of Conductive Arteries: How Ultrasonic Metal Welding Reshapes the Reliability of High-Voltage Connectors

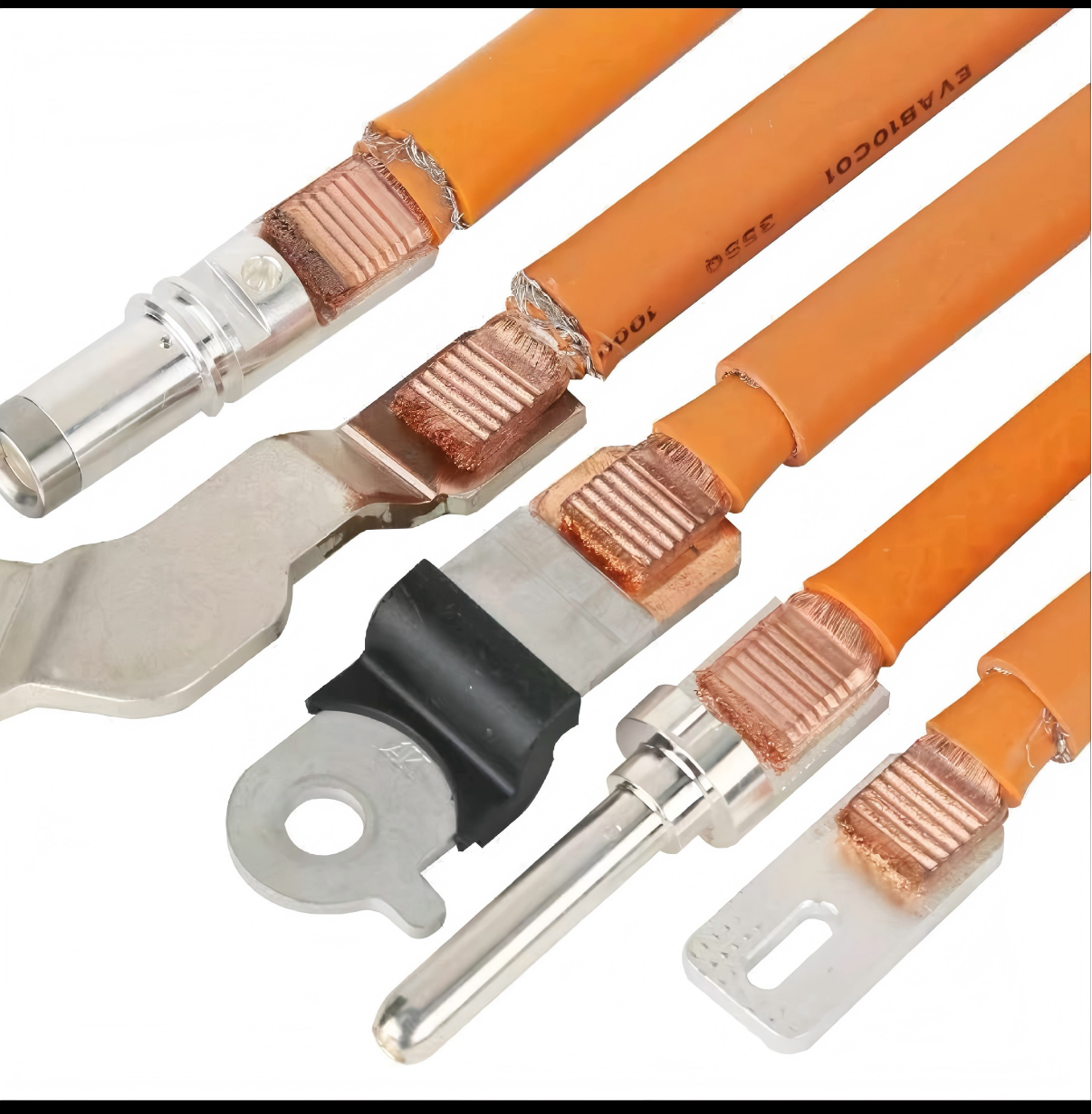

In the fleeting moments of new energy vehicles speeding by, and in the precise movements of industrial robots, an invisible force is quietly transforming the core technology of power transmission. When a battery cable with a cross-sectional area of 95mm², woven from 3000 ultra-fine copper wires, is perfectly integrated with the silver-plated contacts of a high-voltage connector, an industrial revolution concerning reliability, efficiency, and space utilization is born amidst the vibrations of ultrasonic welding.

The Precision Challenge of Ultra-Flexible Cable Harnesses Modern high-voltage cables are no longer simple copper core conductors. To cope with frequent bending and vibration environments, engineers have created flexible cables composed of thousands of ultra-fine copper wires with a diameter of only 0.2 mm. This design brings excellent flexibility but also presents unprecedented challenges to traditional connection processes: how to transform 3000 independent contact points into a uniform and reliable electrical interface?

Traditional soldering or crimping processes fall short when faced with such a complex cable harness structure. Solder cannot penetrate evenly into each fine wire, potentially leading to localized hot spots and premature failure; while mechanical crimping can damage the delicate copper wires, reducing the overall current-carrying capacity. It is precisely under these technological bottlenecks that ultrasonic metal welding demonstrates its unique advantages.

The Microscopic Miracle of Ultrasonic Welding

Ultrasonic metal welding is a solid-state joining technology that does not rely on external heat sources or molten metal. Instead, it uses high-frequency mechanical vibration (typically 20-40kHz) under pressure to induce plastic flow and atomic diffusion at the metal interface. When the welding tool (welding head) vibrates on the connector contacts at tens of thousands of times per second, the oxides between the cable and the contacts are broken down, and the pure metal surfaces interpenetrate at the atomic level, forming a metallurgical bond.

This process creates a miracle at the microscopic level: 3000 independent copper wires are no longer simply in physical contact, but form a uniform metallic community with the silver-plated contacts. The silver plating not only enhances surface conductivity, but its softer properties also promote material flow under ultrasonic action, ensuring complete fusion of the interface.

Engineering Art in Limited Space

The internal space of high-voltage connectors is extremely limited, requiring the welding process to be completed within a strictly controlled heat-affected zone. Traditional welding methods often suffer from unavoidable heat diffusion, which can damage adjacent insulation or alter metal properties. The brilliance of ultrasonic welding lies in its highly localized energy—heat is generated solely through interfacial friction, preventing significant conduction to surrounding materials.

A 22mm weld width becomes possible within this constraint. Through carefully designed weld head geometry and vibration modes, ultrasonic energy is precisely guided to the target area, creating a weld interface with uniform width and depth. This size is not arbitrary: it is precisely calculated to ensure sufficient current-carrying area while optimizing stress distribution, allowing the connection point to withstand the continuous vibrations of vehicle operation.

A Reliability Revolution Beyond Connections

Ultrasonic welding creates connections with multiple advantages. Electrically, the extremely low interfacial resistance ensures efficient power transmission, reducing energy loss and heat generation. Mechanically, the tensile strength of the welded area typically exceeds that of the cable itself, meaning failure is more likely to occur in the cable than at the connection point. More importantly, this connection requires no added materials, avoiding electrochemical corrosion between different metals. Combined with the anti-oxidation properties of the silver plating, this represents a qualitative leap in long-term reliability.

This reliability is particularly important in DC fast charging scenarios. The continuous current of up to 500A and frequent mating cycles place stringent demands on connectors. The uniform interface formed by ultrasonic welding eliminates localized hot spots, while its superior mechanical stability ensures consistent performance even after thousands of mating cycles.

A Panoramic View of Industrial Applications

Currently, this technology has expanded from internal connections in battery packs and charging ports in new energy vehicles to high-end fields such as industrial robot joint wiring and renewable energy storage systems. With the increasing demand for high-power-density connections in emerging fields such as electric aviation and large-scale energy storage power stations, ultrasonic welding technology is continuously evolving: adaptive control systems can adjust welding parameters in real time to compensate for material differences; vision-guided systems can achieve sub-millimeter positioning accuracy; and data analysis platforms predict connection quality by monitoring impedance changes during the welding process.

When we return our attention to the 95mm² cable welded to the high-voltage connector, we see not only a process node but also a microcosm of modern industry's relentless pursuit of reliability. Ultrasonic metal welding, with its silent vibrations, weaves a neural network for power transmission in the microscopic world, laying a solid foundation for an efficient and safe energy future. Within the limited physical space of a connector, this technology unlocks unlimited application potential, becoming a key link connecting today's needs with tomorrow's innovations.
