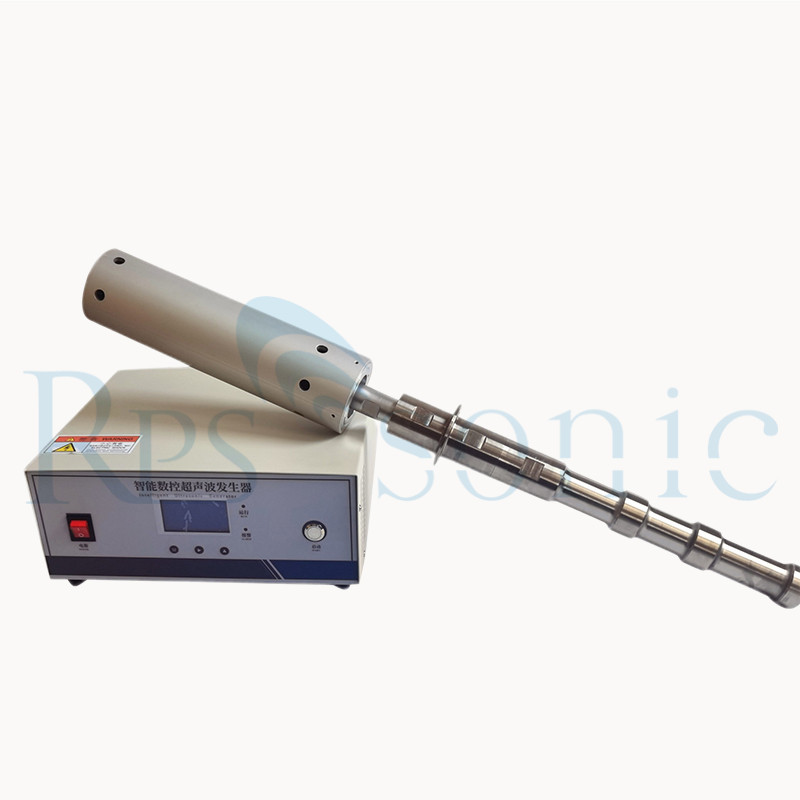

What is an Ultrasonic Homogenizer and How Does It Work

You use an ultrasonic homogenizer to mix things. It also breaks down and prepares samples. People use it in science and industry. This device works with ultrasonic waves over 20 kHz. These waves cause cavitation. Cavitation disrupts and homogenizes materials. You can find this homogenizer in labs. It helps with cell disruption and DNA extraction. It also reduces particle size. The ultrasonic process makes stable mixtures. It helps extract compounds. It can clean equipment too.

Key Takeaways

• Ultrasonic homogenizers use sound waves to mix and break samples. They are very important in labs and factories.

• Acoustic cavitation is the main process that helps ultrasonic homogenizers mix things well. This makes particles smaller and mixtures more stable.

• You can pick probe-type or bath-type ultrasonic homogenizers. Your choice depends on how much you need to mix and what you are mixing.

• You must clean the probe and container often. This helps your ultrasonic homogenizer work well and last longer.

• RPS-SONIC sells good ultrasonic homogenizers. They give a one-year warranty and great customer help to support you.

How Ultrasonic Homogenizers Work

Operating Principle

An ultrasonic homogenizer helps mix and break down samples. It sends high-frequency ultrasonic waves into a liquid. These waves are between 20,000 and 23,000 Hz. The device uses power from 500 to 3,500 watts. When you turn it on, it changes electrical energy into vibrations. A piezoelectric transducer does this job. The vibrations move through a probe and reach the sample.

• The ultrasonic waves go through the liquid in cycles.

• These cycles squeeze and stretch the liquid.

• Tiny bubbles form in the liquid.

• The bubbles get bigger and then pop very fast.

This is called acoustic cavitation. When bubbles pop, they make very high heat and pressure in small spots. These strong conditions create powerful shear forces. These forces help make particles smaller, mix things, and blend liquids. The ultrasonic homogenizer can break cells, mix liquids, and make mixtures stable. It is a strong tool for labs and factories.

Acoustic Cavitation

Acoustic cavitation is why the ultrasonic homogenizer works so well. The ultrasonic waves make pressure go up and down in the liquid. When the pressure is low, bubbles form and grow. When the pressure is high, the bubbles pop quickly.

Here is what happens during acoustic cavitation:

• Bubbles form and pop in just milliseconds.

• When they pop, the pressure can reach 1,000 atmospheres.

• The inside of the bubbles can get as hot as 4,000 to 10,000 Kelvin.

• The bubble surface can reach 1,000 to 1,500 Kelvin.

You can see that acoustic cavitation gives very strong mixing power. The ultrasonic homogenizer uses this to make particles smaller, mix things, and blend liquids. These strong local conditions help mix faster and better.

Shear Forces in Liquids

The ultrasonic homogenizer makes shear forces much stronger than regular machines. When bubbles pop, they send out shock waves and tiny jets. These forces break up particles, open cells, and mix liquids well.

• The ultrasonic homogenizer can make particles smaller than 100 nanometers.

• It mixes and blends better because it uses more energy.

• It is good for breaking tough samples and making fine mixtures.

You should know ultrasonic homogenizers can be very loud. They can make noise up to 70 to 90 decibels. You may need a cover for safety. The strong shear forces and high energy make this tool a top pick for labs and factories. You can use it to make particles smaller, mix things, and blend liquids. It is a very useful tool for many jobs.

Homogenizer Components

When you use an ultrasonic homogenizer, you need several parts. Each part has a special job. All the parts work together to make the homogenizer run well.

Generator and Transducer

The generator is the main part of the ultrasonic homogenizer. You plug it in to get power. It changes electrical power into high-frequency energy. This energy makes the homogenizer work fast, above 20 kHz. The transducer sits next to the generator. It takes the energy and turns it into vibrations. These vibrations are very quick and strong. Most transducers use piezoelectric materials. When electricity goes through them, they change shape and make ultrasonic waves.

RPS-SONIC builds generators and transducers that work really well. Their team uses smart designs to give you strong and steady ultrasonic energy. This helps your homogenizer work better and last longer.

Probe (Sonotrode)

The probe, also called the sonotrode, touches the liquid sample. It vibrates at the same ultrasonic frequency as the transducer. When the probe moves, it sends ultrasonic waves into the liquid. This makes cavitation happen. Cavitation breaks down particles and mixes the sample. Most probes are made from titanium. Titanium is strong and does not rust, so your probe can handle tough jobs and last a long time.

• The probe sends ultrasonic energy right into your sample.

• Cavitation from the probe breaks up cells and particles.

Sample Container

You put your sample in a special container. This container holds the liquid while the probe works. The container must be strong and able to handle the ultrasonic process. It keeps your sample safe and helps the homogenizer work well. Always use a clean container so you do not mix old and new samples.

Tip: Clean your probe and container after every use. This keeps your ultrasonic homogenizer working well and stops damage.

RPS-SONIC uses good materials for every part of their ultrasonic homogenizer. Their skill makes sure you get reliable, powerful, and long-lasting equipment for your lab or factory.

Types of Ultrasonic Homogenizers

You can pick from two main types of ultrasonic homogenizers. These are probe-type and bath-type. Each one is good for different jobs and sample sizes. It is important to know how each works and what makes them special.

Probe-Type Homogenizer

A probe-type ultrasonic homogenizer uses a metal probe. The probe touches your sample directly. It sends ultrasonic waves right into the liquid. This makes strong cavitation and mixes things well. The energy is used efficiently because little is lost. This type is good for breaking cells and mixing small batches.

• You can use batch mode or continuous mode.

• Batch mode lets you control a set amount, good for lab work.

• Continuous mode handles bigger amounts and works faster.

• Probe-type homogenizers give stronger effects and quick results.

• The temperature can go up fast when you use it. The probe may wear out if you use harsh chemicals.

Tip: Probe-type models are portable and work well for quick lab jobs.

Bath-Type Homogenizer

A bath-type ultrasonic homogenizer uses a water bath. You put your samples in tubes or bottles. The bath sends ultrasonic waves through the water and into your samples. This is good for bigger batches and keeps samples separate.

• Bath-type homogenizers can process many samples at once.

• Each sample stays in its own container, so they do not mix.

• The ultrasonic waves are weaker because they go through water first.

• You get less extraction than with probe-type models.

RPS-SONIC sells both probe-type and bath-type ultrasonic homogenizers. You can change speed, structure, and working volume to fit your needs. Their equipment works well for labs and factories. You can process small or large amounts.

Note: Pick your homogenizer based on sample size, speed, and contamination risk. RPS-SONIC can help you choose the best ultrasonic homogenizer for your job.

Applications and RPS-SONIC Solutions

Laboratory and Industrial Uses

You can use an ultrasonic homogenizer in many places. It works in labs and factories. This tool helps break open cells and get DNA. It also makes particles smaller. You can use it to mix things and get samples ready. The laboratory ultrasonic homogenizer works with many things. It can handle plants, chemicals, and biological samples. You can use it for liquids, nanoparticles, and food. The homogenizer makes mixtures that stay mixed. It also helps clean glassware.

In factories, you use the ultrasonic homogenizer for many jobs. It breaks open cell walls and mixes liquids. It also spreads solid bits in liquids. The ultrasonic processor helps make tiny mixtures. It is good for making nano-dispersions and fine blends.

Ultrasonic Sonochemistry by RPS-SONIC

Ultrasonic sonochemistry from RPS-SONIC can speed up reactions. This equipment uses ultrasonic waves in liquids. These waves make reactions go faster and give better results. You get more product and better mixing. The ultrasonic homogenizer helps chemicals react more. It also cleans surfaces so reactions work well. You can use it for extraction, making new chemicals, and cleaning up pollution. It also helps make biodiesel.

You can use ultrasonic sonochemistry for breaking cells and mixing things. It also helps stick things together. The ultrasonic homogenizer treats germs and breaks down bad chemicals. You get good results and fast work with RPS-SONIC’s technology.

Medical Industry Solutions

The ultrasonic homogenizer is useful in the medical field. You can use it for welding and making tiny drops. RPS-SONIC gives safe and clean ways to make medical products. Ultrasonic welding joins plastic parts without glue. This keeps things clean and lowers infection risk. It also helps make many products fast. Ultrasonic atomization puts coatings on blood tubes. It also helps get medicine from plants.

RPS-SONIC’s ultrasonic homogenizer works fast and safely. The technology helps make medical products in clean places. You can make things quickly and keep them safe.

You use an ultrasonic homogenizer to mix things fast. It also breaks down and prepares samples quickly. This tool sends ultrasonic waves into liquids. These waves make strong forces in the liquid. You get better product quality. Mixtures last longer and stay stable. Emulsions can stay mixed for months. The homogenizer works faster than old methods. It uses less energy too.

• You make protein properties better and samples more consistent.

• You see fewer damaged particles. Customers are happier with the results.

RPS-SONIC gives you reliable machines. You get a one-year warranty and good support after you buy.

FAQ

What is an ultrasonic homogenizer?

An ultrasonic homogenizer helps you mix and break samples. It sends ultrasonic waves into liquids. These waves make strong forces in the liquid. This helps you make mixtures that stay mixed. It also makes particles smaller.

How does an ultrasonic homogenizer work?

First, you turn on the homogenizer. The generator gives energy to the probe. The probe starts to vibrate very fast. This makes ultrasonic waves in your sample. The waves cause cavitation, which mixes and breaks particles.

What can you process with an ultrasonic homogenizer?

You can use it for liquids, plants, nanoparticles, and biological samples. The ultrasonic waves help you get compounds out of samples. They also break cells and make smooth mixtures. You can clean glassware with ultrasonic energy too.

Is an ultrasonic homogenizer safe to use?

You need to follow safety rules. The homogenizer is loud and makes strong waves. You should use a cover and wear ear protection. Always clean the probe and container after using it. This keeps your ultrasonic homogenizer working well.

How do you choose the right ultrasonic homogenizer?

Think about your sample size and what you need to do. Probe-type homogenizers are good for small amounts. Bath-type homogenizers can handle many samples at once. RPS-SONIC can help you pick the best one for your lab or factory.

Tip: If you are not sure, ask RPS-SONIC for help picking the right ultrasonic homogenizer
