What Is Ultrasonic Soldering Machine

what is ultrasonic soldering machine

High-Level Definition

An ultrasonic soldering machine is a specialized tool that uses high-frequency sound vibrations (ultrasonics) to solder materials, particularly those that are normally difficult or impossible to solder with conventional methods. Its key advantage is that it does not require chemical flux.

The Core Principle: How It Works

The magic lies in a component called the ultrasonic horn (or sonotrode), which vibrates at a very high frequency (typically 20 kHz to 40 kHz or more).

Here's the step-by-step process:

Heating: The soldering tip is heated to the melting point of the solder, just like a conventional soldering iron.

Cavitation: When the vibrating horn is applied to the molten solder pool, it creates microscopic bubbles in the liquid solder that rapidly form and collapse. This phenomenon is called acoustic cavitation.

Abrasion and Cleaning: The intense energy from these collapsing bubbles does two critical things:

It blasts away oxides and contaminants from the surface of the metal you're trying to solder.

It breaks through the oxide layer that forms on the surface of the molten solder itself.

Bonding: With the oxide barriers instantly removed, the clean, molten solder can make direct atomic contact with the clean base metal, creating a strong, reliable metallurgical bond.

The key takeaway: The ultrasonic energy mechanically cleans the surfaces, replacing the chemical cleaning action of traditional flux.

Key Components

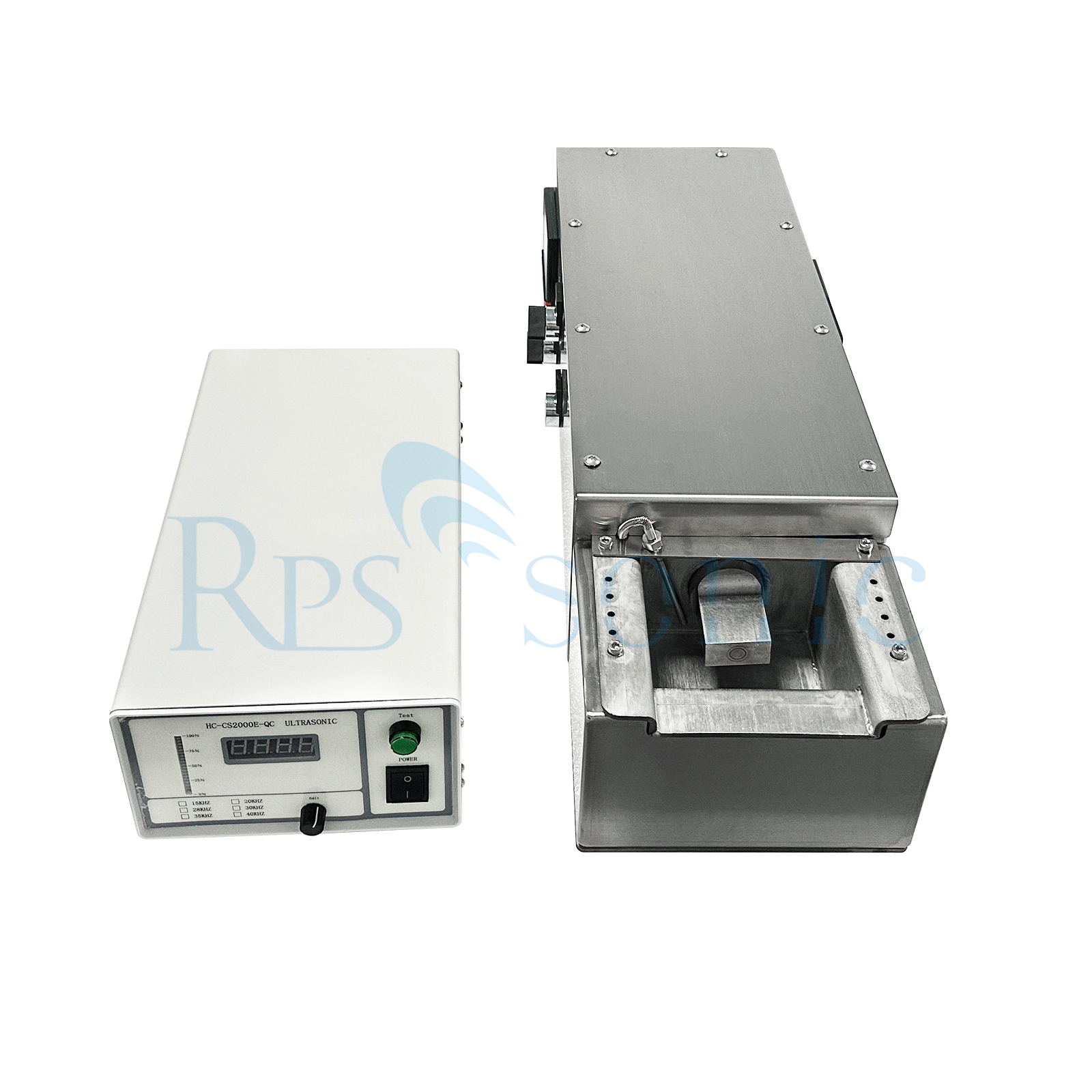

A typical ultrasonic soldering system consists of:

Generator: Creates the high-frequency electrical signal.

Transducer: Converts the electrical signal into mechanical vibrations.

Horn (Sonotrode): Amplifies the vibrations and transmits them to the solder and workpiece. This is the part that gets hot and touches the materials.

Temperature Controller: Precisely regulates the heat of the horn.

What is it Used For? (Primary Applications)

This technology is indispensable for joining a specific class of materials:

Aluminum and its Alloys: Aluminum instantly forms a tough, refractory oxide layer (Al₂O₃) when exposed to air. This layer prevents conventional solder from wetting the surface. Ultrasonic soldering is the most common method for reliably soldering aluminum without corrosive fluxes.

Other "Difficult" Metals: It is also highly effective for:

Stainless Steel

Glass

Ceramics

Titanium

Copper (in some specialized cases)

Dissimilar Materials: It allows you to create strong joints between different materials, such as aluminum to copper, which is common in heat exchangers and the power electronics industry.

Flux-Free Applications: In sensitive electronics or medical devices, even the slightest residue from flux can cause corrosion or short circuits. Ultrasonic soldering provides a perfectly clean joint.

---

Advantages vs. Traditional Soldering

Feature	Ultrasonic Soldering	Traditional Soldering
Flux	Not required. Mechanical oxide removal.	Required. Chemical oxide removal.
Post-Cleaning	Not needed. No corrosive flux residues.	Often needed. Flux residues can be corrosive and must be cleaned.
Materials	Excellent for aluminum, stainless steel, ceramics.	Limited mostly to copper, brass, and tin-plated surfaces.
Joint Quality	Very strong, oxide-free, metallurgical bond.	Strong, but potential for flux entrapment or "flux voids."
Environmental	Cleaner process, no flux fumes.	Flux fumes can be harmful and require ventilation.
Cost	Higher initial investment for the machine.	Lower initial cost for equipment.

Conclusion

In summary, an ultrasonic soldering machine is a flux-less soldering system that uses high-frequency vibrations to scrub away oxide layers, enabling the soldering of materials like aluminum and stainless steel that are notoriously resistant to conventional soldering techniques. It is a specialized, powerful tool for advanced manufacturing, repair, and R&D.
