Ultrasonic Vibrating Sieve: A Revolutionary Technology for Metal Powder Screening

In high-end manufacturing industries such as powder metallurgy, additive manufacturing (3D printing), and electronic materials, the sieving and grading of metal powders is a crucial step in determining the quality of the final product. However, when the powder fineness reaches 200 mesh or even 400 mesh and above, traditional vibrating screening technology faces severe challenges: materials agglomerate due to surface tension and electrostatic adsorption, and fine powder easily clogs the screen, leading to a sharp decline in screening efficiency and even requiring frequent shutdowns for cleaning.

The emergence of ultrasonic vibrating screening technology provides a fundamental solution to this problem. This technology superimposes high-frequency ultrasonic vibrations onto the screen of a traditional vibrating screen, keeping the material on the screen surface in a suspended state, effectively suppressing adhesion, friction, and clogging. Especially for high-value-added materials with high screening difficulty, such as metal powders, ultrasonic screening has become an indispensable core process equipment.

I. Working Principle: Synergy of Vibration and Ultrasonic Waves

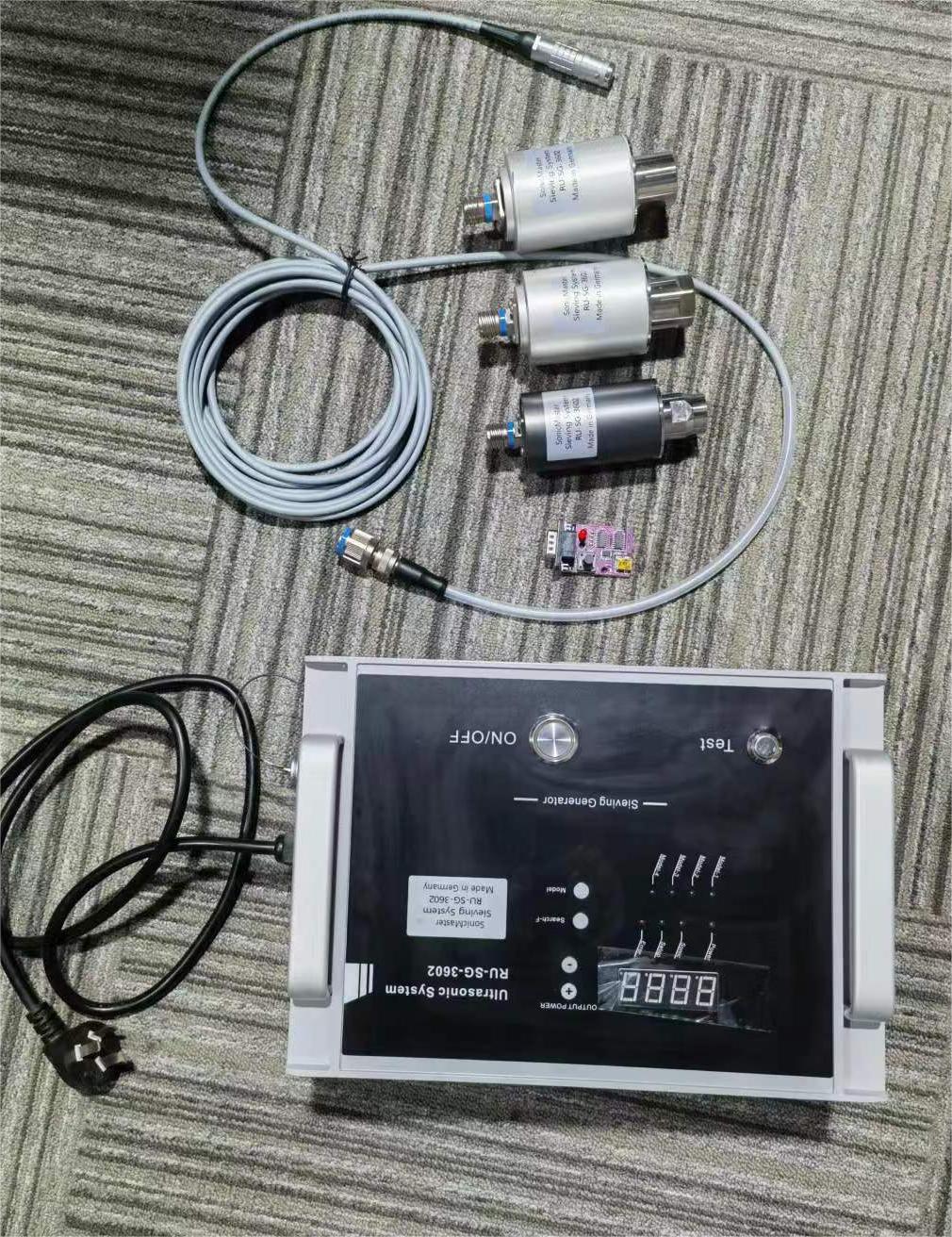

The ultrasonic vibrating screening system mainly consists of three parts: an ultrasonic power supply (generator), a transducer, and a resonant ring.

Its workflow is as follows:

Step 1: Power Conversion. The ultrasonic power supply converts 220V, 50Hz (or 110V, 60Hz) industrial frequency energy into high-frequency energy, typically ranging from 18kHz to 38kHz.

The second step: Mechanical vibration generation. High-frequency energy is input into the ultrasonic transducer, which converts it into a sinusoidal longitudinal oscillation wave (i.e., ultrasound) of the same frequency.

The third step: Resonant transmission. Ultrasonic waves are transmitted to a resonant ring, generating resonance, which then transmits the vibration evenly across the entire screen surface.

The fourth step: Composite screening. The material on the screen undergoes traditional low-frequency three-dimensional vibration while simultaneously experiencing high-frequency ultrasonic vibration. After receiving tremendous ultrasonic acceleration, the ultrafine powders are fluidized on the screen surface, thus suppressing clogging factors such as adhesion, friction, settling, and wedging.

This composite motion mode of "low-frequency large amplitude + high-frequency small amplitude" is the fundamental reason for the superior performance of ultrasonic screening.

II: Core Technological Advantages Completely Solves Screen Clogging The most challenging problem in metal powder screening is mesh clogging. After ultrasonic energy is transmitted to the screen, it breaks the inherent surface tension of the stainless steel wire mesh, making the wires virtually "frictionless and without surface tension," thus preventing particles from adhering to the mesh openings. Simultaneously, the ultrasound effectively neutralizes static electricity between powder particles, breaking up agglomerates. The system has a fully automatic self-cleaning function, maintaining unobstructed mesh openings without manual intervention.

Significantly Improved Screening Efficiency and Accuracy

Compared to conventional screening machines, ultrasonic vibrating screens can improve screening accuracy by over 90% and increase output by 2 to 5 times. In extreme cases, output can be increased by up to 10 times. For micron-sized materials with screens smaller than 100μm, the screen penetration rate is significantly improved. The pass rate for fine powder screening can exceed 99.5%.

Extended Screen Lifespan

In traditional screening, frequent mechanical cleaning and bouncing ball impacts accelerate screen wear. Ultrasonic screening eliminates the need for anti-clogging devices such as bouncing balls, reducing the need for frequent screen disassembly and mechanical cleaning, significantly extending screen lifespan.

Protecting Material Properties

The ultrasonic screening process is gentle, causing minimal damage to powder particles. Taking metal 3D printing powder as an example, ultrasonic energy acts by "loosening satellite powder" rather than through mechanical collision, maximizing the protection of particle sphericity. Simultaneously, the fully enclosed design avoids dust contamination, ensuring material purity.

III: Typical Applications in Metal Powder Processing

Powder Metallurgy and Metal Powder Classification

Ultrasonic vibrating screens are suitable for fine sieving from 40 mesh to 635 mesh (approximately 20 μm), and are particularly adept at handling ultrafine powders above 300 mesh. They can handle a wide range of metal powders, including: tungsten powder, molybdenum powder, cobalt powder, nickel powder, copper powder, iron powder, titanium powder, stainless steel powder, alloy powder, silver powder, tungsten carbide powder, etc. Furthermore, they are also suitable for high-value-added fine powders such as electromagnetic materials, lithium battery positive and negative electrode materials, and laser powders.

Metal 3D Printing Powder Sieving

In the field of metal additive manufacturing, sieving is a crucial step in determining the quality of powder materials. Ultrasonic vibrating sieving machines have become standard equipment for 3D printing powder processing:

Precise grading: Easily achieves precise grading within commonly used 3D printing particle size ranges such as 15-53μm and 53-105μm.

Protecting sphericity: Ultrasonic processing can reduce satellite powder content in powders by more than 95%.

Inert gas protection: For reactive metal powders such as titanium alloys and aluminum alloys, the equipment can operate in a closed inert gas atmosphere to prevent micro-powder oxidation.

Wide compatibility: Covers various metal powder systems such as titanium alloys, aluminum alloys, and iron powder.

Solving the sieving challenges of special materials: Metal powders often have characteristics such as strong adsorption, easy agglomeration, high static electricity, high density, and low specific gravity, which are the "Achilles' heel" of traditional sieving. Ultrasonic sieving, through high-frequency vibration, keeps the material in a suspended state, fundamentally solving these problems. According to literature, Kason Corporation in the United States achieved significant results in sieving 500-mesh (approximately 31μm) ultrafine powders using an ultrasonic generator system as early as 2001.

Key Selection Considerations

Transducer Installation: External and internal options are available, depending on the sieving environment (e.g., explosion-proof requirements).

Explosion-proof Requirements: For flammable and explosive metal powders such as aluminum and titanium powders, explosion-proof ultrasonic vibrating screens should be selected.

Automation Level: Modern systems support continuous and pulse operation modes and can be integrated into fully automated production lines.

Multi-layer Sieving: Single-layer or multi-layer screening is possible; one intelligent ultrasonic generator can drive multiple transducers simultaneously.

Conclusion: Ultrasonic vibrating screening technology, by superimposing high-frequency ultrasonic vibrations onto traditional vibrating screens, fundamentally solves the long-standing industry problems of mesh clogging, low efficiency, and insufficient precision in metal powder sieving. Its comprehensive advantages of "self-cleaning and anti-clogging, high efficiency and precision, and material protection" make it play an irreplaceable role in high-end manufacturing fields such as powder metallurgy, metal 3D printing, and electronic materials.

With the booming development of industries such as additive manufacturing, new energy, and powder metallurgy, the requirements for particle size distribution, purity, and sphericity of metal powders are becoming increasingly stringent, and the application prospects of ultrasonic vibrating sieving technology will be even broader. For metal powder processing enterprises that pursue product quality and process efficiency, ultrasonic vibrating sieving machines are undoubtedly a key process equipment worthy of focused attention and investment.
