What is ultrasonic transducer
Ultrasonic transducers are piezoelectric ceramics that resonate at ultrasonic frequencies and convert electrical signals into mechanical vibrations by the piezoelectric effect of the material. When the transducer is used as a transmitter, the electrical oscillating signal sent from the excitation source will cause a change in the electric or magnetic field in the electrical energy storage element of the transducer, which changes the mechanical vibration system of the transducer through some effect. A driving force is generated to cause it to vibrate, thereby propelling the medium in contact with the mechanical vibration system of the transducer to vibrate and radiate sound waves into the medium.
The ultrasonic Oscillator is also called the ultrasonic vibrator. The whole of the industry is connected to the horn and the horn is called a vibrator. The ultrasonic vibrator is a device that converts electrical energy and mechanical energy (acoustic vibration) by piezoelectric effect of piezoelectric ceramics, and amplifies the front and rear radiation cover blocks by acoustic impedance matching.
Parameter

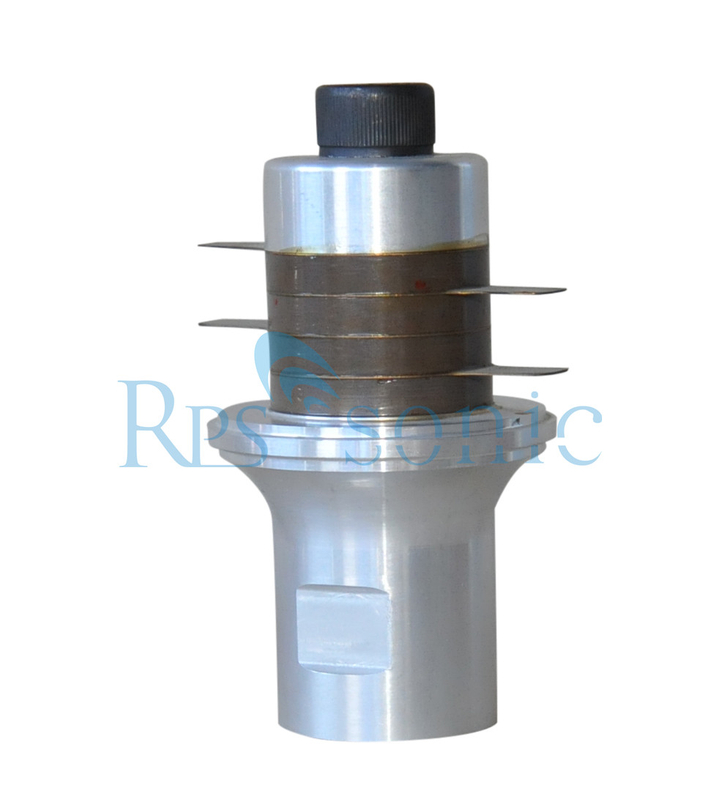

Ultrasonic Transducer 30Khz for Ultrasonic Cutting Probe
Item No. | Connect screw (Size) | Capacitance | Input power (W) | Max. Amplitude (um) | ||
Yellow | Grey | Black | ||||
3030-4Z | M10 | / | 6200-6900 | / | 700 | 4 |
3030-4D | M8 | / | 6200-6900 | / | 800 | 5 |
30Khz transducer widely used in ultrasonic cutting and sealing machine.Piezoelectric transducer is the electric charge that accumulates in certain solid materials in response to applied mechanical stress. It is key point of all ultrasonic equipment.The transducer decide the property of the machine.We can supply transducer, also transducer with house and booster.
Advantage
1. The piezoelectric ceramic chip adopts imported parts, and can give a strong and stable output.
2. High efficiency, high mechanical quality factor, obtaining high electric-acoustic conversion efficiency work at the resonance frequency points.
3. Large amplitude: optimization design by computer , vibration speed ratio is high .
4. Large power,Under the action of prestressed screw, the energy of the piezoelectric ceramic to get maximum play;
5. Good heat resistance, small harmonic impedance, low calorific value, using temperature range is wide.
Service and shipment
l Warranty one year for transducer.
l You can contact us for technical inquiry any time.
l We supply OEM service for oversea customer, also will keep Confidentiality for our customers.
l We supply customized products service for small quantity also.
l Shipment by FED-EX /DHL
What is ultrasonic transducer
Ultrasonic transducers are piezoelectric ceramics that resonate at ultrasonic frequencies and convert electrical signals into mechanical vibrations by the piezoelectric effect of the material. When the transducer is used as a transmitter, the electrical oscillating signal sent from the excitation source will cause a change in the electric or magnetic field in the electrical energy storage element of the transducer, which changes the mechanical vibration system of the transducer through some effect. A driving force is generated to cause it to vibrate, thereby propelling the medium in contact with the mechanical vibration system of the transducer to vibrate and radiate sound waves into the medium.
The ultrasonic Oscillator is also called the ultrasonic vibrator. The whole of the industry is connected to the horn and the horn is called a vibrator. The ultrasonic vibrator is a device that converts electrical energy and mechanical energy (acoustic vibration) by piezoelectric effect of piezoelectric ceramics, and amplifies the front and rear radiation cover blocks by acoustic impedance matching.
Parameter
Ultrasonic Transducer 30Khz for Ultrasonic Cutting Probe
Item No. | Connect screw (Size) | Capacitance | Input power (W) | Max. Amplitude (um) | ||
Yellow | Grey | Black | ||||
3030-4Z | M10 | / | 6200-6900 | / | 700 | 4 |
3030-4D | M8 | / | 6200-6900 | / | 800 | 5 |
30Khz transducer widely used in ultrasonic cutting and sealing machine.Piezoelectric transducer is the electric charge that accumulates in certain solid materials in response to applied mechanical stress. It is key point of all ultrasonic equipment.The transducer decide the property of the machine.We can supply transducer, also transducer with house and booster.
Advantage
1. The piezoelectric ceramic chip adopts imported parts, and can give a strong and stable output.
2. High efficiency, high mechanical quality factor, obtaining high electric-acoustic conversion efficiency work at the resonance frequency points.
3. Large amplitude: optimization design by computer , vibration speed ratio is high .
4. Large power,Under the action of prestressed screw, the energy of the piezoelectric ceramic to get maximum play;
5. Good heat resistance, small harmonic impedance, low calorific value, using temperature range is wide.
Service and shipment
l Warranty one year for transducer.
l You can contact us for technical inquiry any time.
l We supply OEM service for oversea customer, also will keep Confidentiality for our customers.
l We supply customized products service for small quantity also.
l Shipment by FED-EX /DHL
FAQ:
1. What’s the warranty of your transducer and equipment.
Our warranty is one year for both transducer and equipment, but we can supply you Components free even out of warranty.
2. What’s frequency transducer you supply?
We can supply transducer from 15Khz to 70Khz depending on your requirements or application.
3. What’s the using life of your transducer?
Under correct working environment, our transducer can work 5~10 years
4. What’s the using life of your generator?
Under correct working environment, our generator can work 8~10 years
5. Does your products exported before?
Yes, our transducer exported to USA,south America, EUROPE, Middle East, and Russia for many years.
6. Do you supply sample for test?
Yes, you can order on sample from our company first , we will return you the sample cost when you order in the future.
7. Do you supply OEM work?
Yes, welcome to ask for OEM cooperation , we have OEM produced for USA and German customer for many years, also hope to get more OEM order to enlarge our business.
8. how to customize transducer ?
For two ways for customize transducer, first way, you supply me sample , I will customize depending on your sample. Second, you give us all parameter and drawing , we can customize depending on your information.
9. Can you generator connect to PC, PLC or internet .
Yes, we have different version generator, it can connect to PC. PLC, even internet.Also the price different.
10. What we can get if the transducer/equipment broken during the warranty?
All our transducer and generator tested at least 48 hours before shipment , so we have confidence to our equipment. Of course, We will send you new transducer/ equipment if it broken in the warranty. At the same time, we need to find the problem , why it broken so fast.
FAQ:
1. What’s the warranty of your transducer and equipment.
Our warranty is one year for both transducer and equipment, but we can supply you Components free even out of warranty.
2. What’s frequency transducer you supply?
We can supply transducer from 15Khz to 70Khz depending on your requirements or application.
3. What’s the using life of your transducer?
Under correct working environment, our transducer can work 5~10 years
4. What’s the using life of your generator?
Under correct working environment, our generator can work 8~10 years
5. Does your products exported before?
Yes, our transducer exported to USA,south America, EUROPE, Middle East, and Russia for many years.
6. Do you supply sample for test?
Yes, you can order on sample from our company first , we will return you the sample cost when you order in the future.
7. Do you supply OEM work?
Yes, welcome to ask for OEM cooperation , we have OEM produced for USA and German customer for many years, also hope to get more OEM order to enlarge our business.
8. how to customize transducer ?
For two ways for customize transducer, first way, you supply me sample , I will customize depending on your sample. Second, you give us all parameter and drawing , we can customize depending on your information.
9. Can you generator connect to PC, PLC or internet .
Yes, we have different version generator, it can connect to PC. PLC, even internet.Also the price different.
10. What we can get if the transducer/equipment broken during the warranty?
All our transducer and generator tested at least 48 hours before shipment , so we have confidence to our equipment. Of course, We will send you new transducer/ equipment if it broken in the warranty. At the same time, we need to find the problem , why it broken so fast.
The columnar type NTK TYPE (stabilized power and high reliablity widely application) | |||||||||||
Item No. | Connect screw (Size) | Ceramic diameter (mm) | Quantity of Ceramic (pc) | Resonance frequency (khz) | Resistance (Ω) | Capacitance | Input power (W) | Max. Amplitude (um) | |||
Yellow | Grey | Black | |||||||||
7015-4Z | M20 X 1.5 | 70 | 4 | 15 | 15 | 12500-14000 | / | 17000-19000 | 2600 | 10 | |
6015-4Z | M20 X 1.5 or M16 X 1 | 60 | 4 | 15 | 15 | 8000-10000 | 10000-12000 | 12500-13500 | 2200 | 10 | |
6015-6Z | M20 X 1.5 | 60 | 6 | 15 | 15 | 14000-16000 | / | 19500-21000 | 2600 | 10 | |
5015-4Z | M18 X 1.5 | 50 | 4 | 15 | 15 | 12000-13000 | 13000-14300 | 15000-17000 | 1500 | 8 | |
4015-4Z | M16 X 1 | 40 | 4 | 15 | 15 | 10000-11000 | 10500-11500 | 700 | 8 | ||
5520-4Z | M18 X 1 | 55 | 4 | 20 | 15 | 10000-11000 | 10500-11500 | 14300-20000 | 2000 | 8 | |
5020-6Z | M18 X 1.5 | 50 | 6 | 20 | 15 | 18500-20000 | / | 22500-25000 | 2000 | 8 | |
5020-4Z | M18 X 1.5 | 50 | 4 | 20 | 15 | 11000-13000 | 13000-15000 | 15000-17000 | 1500 | 8 | |
5020-2Z | M18 X 1.5 | 50 | 2 | 20 | 20 | 6000-6500 | 6500-7000 | 8000-9000 | 800 | 6 | |
4020-4Z | 1/2-20UNF | 40 | 4 | 20 | 15 | 9000-10000 | 9500-11000 | / | 900 | 6 | |
4020-2Z | 1/2-20UNF | 40 | 2 | 20 | 25 | / | 4800-5500 | / | 500 | 5 | |
5025-2Z | M12 X 1 | 50 | 2 | 25 | 25 | 5000-5600 | / | 7000-8000 | 500 | 4 | |
3828-2Z | 1/2-20UNF | 38 | 2 | 28 | 30 | 3800-4300 | / | / | 500 | 3 | |
3828-4Z | 1/2-20UNF | 38 | 4 | 28 | 30 | 7600-8500 | / | 10500-12000 | 800 | 4 | |
3028-2Z | 3/8-24UNF | 30 | 2 | 28 | 30 | 2700-3100 | 3400-3800 | / | 400 | 3 | |
2528-4Z | M8 X 1 | 25 | 4 | 28 | 30 | 3900-4300 | / | / | 400 | 4 | |
2528-2Z | M8 X 1 or 3/8-24UNF | 25 | 2 | 28 | 35 | 1950-2200 | 2200-2500 | / | 300 | 3 | |
3030-4Z | M10 | 30 | 4 | 30 | 30 | / | 6200-6900 | / | 700 | 4 | |
3035-2Z | 3/8-24UNF | 30 | 2 | 35 | 40 | 2700-3100 | / | / | 500 | 2 | |
3035-4Z | M10 X 1 | 30 | 4 | 35 | 30 | 5000-6200 | / | / | 800 | 3 | |
2535-2Z | M8 X 1 | 25 | 2 | 35 | 40 | 1900-2200 | / | / | 400 | 2 | |
2540-2Z | 3/8-24UNF | 25 | 2 | 40 | 40 | / | 2000-2300 | / | 500 | 2 | |
3040-4Z | M10 | 30 | 4 | 40 | 30 | 5500-6200 | / | / | 1000 | 2 | |
3050-4Z | M8 | 30 | 4 | 50 | 30 | 5500-6200 | / | / | 600 | 2 | |
1560-2Z | M6 X 0.75 | 15 | 2 | 60 | 60 | / | / | 700-800 | 100 | 1 | |
1070-2Z | M4 | 10 | 2 | 70 | 200 | / | / | 350-400 | 100 | 1 | |
The columnar type NTK TYPE (stabilized power and high reliablity widely application) | |||||||||||
Item No. | Connect screw (Size) | Ceramic diameter (mm) | Quantity of Ceramic (pc) | Resonance frequency (khz) | Resistance (Ω) | Capacitance | Input power (W) | Max. Amplitude (um) | |||
Yellow | Grey | Black | |||||||||
7015-4Z | M20 X 1.5 | 70 | 4 | 15 | 15 | 12500-14000 | / | 17000-19000 | 2600 | 10 | |
6015-4Z | M20 X 1.5 or M16 X 1 | 60 | 4 | 15 | 15 | 8000-10000 | 10000-12000 | 12500-13500 | 2200 | 10 | |
6015-6Z | M20 X 1.5 | 60 | 6 | 15 | 15 | 14000-16000 | / | 19500-21000 | 2600 | 10 | |
5015-4Z | M18 X 1.5 | 50 | 4 | 15 | 15 | 12000-13000 | 13000-14300 | 15000-17000 | 1500 | 8 | |
4015-4Z | M16 X 1 | 40 | 4 | 15 | 15 | 10000-11000 | 10500-11500 | 700 | 8 | ||
5520-4Z | M18 X 1 | 55 | 4 | 20 | 15 | 10000-11000 | 10500-11500 | 14300-20000 | 2000 | 8 | |
5020-6Z | M18 X 1.5 | 50 | 6 | 20 | 15 | 18500-20000 | / | 22500-25000 | 2000 | 8 | |
5020-4Z | M18 X 1.5 | 50 | 4 | 20 | 15 | 11000-13000 | 13000-15000 | 15000-17000 | 1500 | 8 | |
5020-2Z | M18 X 1.5 | 50 | 2 | 20 | 20 | 6000-6500 | 6500-7000 | 8000-9000 | 800 | 6 | |
4020-4Z | 1/2-20UNF | 40 | 4 | 20 | 15 | 9000-10000 | 9500-11000 | / | 900 | 6 | |
4020-2Z | 1/2-20UNF | 40 | 2 | 20 | 25 | / | 4800-5500 | / | 500 | 5 | |
5025-2Z | M12 X 1 | 50 | 2 | 25 | 25 | 5000-5600 | / | 7000-8000 | 500 | 4 | |
3828-2Z | 1/2-20UNF | 38 | 2 | 28 | 30 | 3800-4300 | / | / | 500 | 3 | |
3828-4Z | 1/2-20UNF | 38 | 4 | 28 | 30 | 7600-8500 | / | 10500-12000 | 800 | 4 | |
3028-2Z | 3/8-24UNF | 30 | 2 | 28 | 30 | 2700-3100 | 3400-3800 | / | 400 | 3 | |
2528-4Z | M8 X 1 | 25 | 4 | 28 | 30 | 3900-4300 | / | / | 400 | 4 | |
2528-2Z | M8 X 1 or 3/8-24UNF | 25 | 2 | 28 | 35 | 1950-2200 | 2200-2500 | / | 300 | 3 | |
3030-4Z | M10 | 30 | 4 | 30 | 30 | / | 6200-6900 | / | 700 | 4 | |
3035-2Z | 3/8-24UNF | 30 | 2 | 35 | 40 | 2700-3100 | / | / | 500 | 2 | |
3035-4Z | M10 X 1 | 30 | 4 | 35 | 30 | 5000-6200 | / | / | 800 | 3 | |
2535-2Z | M8 X 1 | 25 | 2 | 35 | 40 | 1900-2200 | / | / | 400 | 2 | |
2540-2Z | 3/8-24UNF | 25 | 2 | 40 | 40 | / | 2000-2300 | / | 500 | 2 | |
3040-4Z | M10 | 30 | 4 | 40 | 30 | 5500-6200 | / | / | 1000 | 2 | |
3050-4Z | M8 | 30 | 4 | 50 | 30 | 5500-6200 | / | / | 600 | 2 | |
1560-2Z | M6 X 0.75 | 15 | 2 | 60 | 60 | / | / | 700-800 | 100 | 1 | |
1070-2Z | M4 | 10 | 2 | 70 | 200 | / | / | 350-400 | 100 | 1 | |
