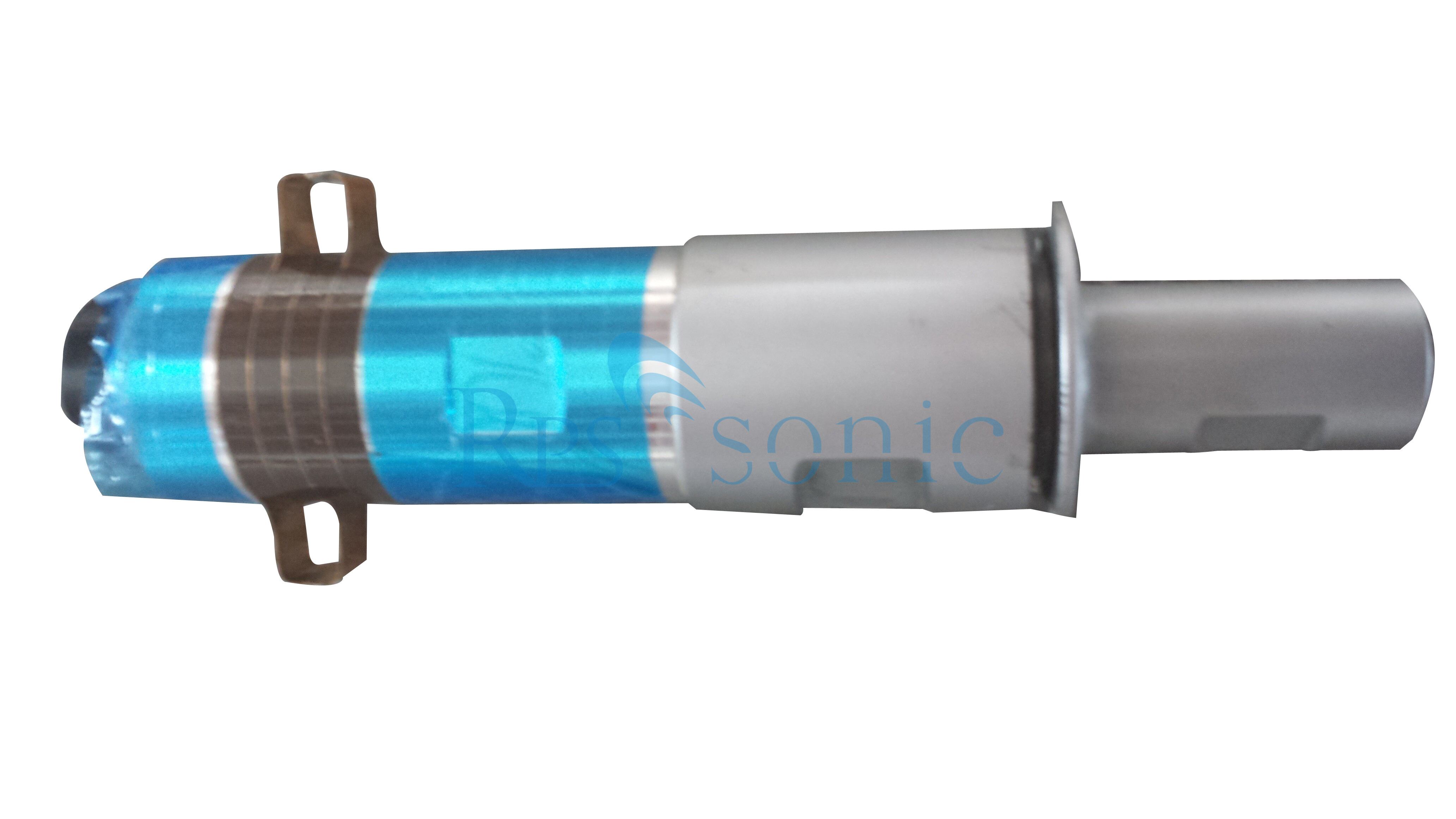

Pzt6 20kHz Ultrasonic Welding Piezoelectric Transducer for High Power Welding

Ultrasonic Transducer for Welding, Drilling and Polishing High-power ultrasonic drilling machine, welding machine, polishing machine vibrator have small machinery loss, high efficiency electricity and sound transfer, big swing and less heat.
Frequency:
Capacity:
Power:
Condition:
Availability:
Quantity:
  • RPS-5020B

  • Rps-sonic

  • RPS-5020B

Pzt6 20kHz Ultrasonic Welding Piezoelectric Transducer for High Power Welding

What is ultrasonic transducer

Ultrasonic transducers are piezoelectric ceramics that resonate at ultrasonic frequencies and convert electrical signals into mechanical vibrations by the piezoelectric effect of the material. When the transducer is used as a transmitter, the electrical oscillating signal sent from the excitation source will cause a change in the electric or magnetic field in the electrical energy storage element of the transducer, which changes the mechanical vibration system of the transducer through some effect. A driving force is generated to cause it to vibrate, thereby propelling the medium in contact with the mechanical vibration system of the transducer to vibrate and radiate sound waves into the medium.



Branson ultrasonic transducer

The ultrasonic Oscillator is also called the ultrasonic vibrator. The whole of the industry is connected to the horn and the horn is called a vibrator. The ultrasonic vibrator is a device that converts electrical energy and mechanical energy (acoustic vibration) by piezoelectric effect of piezoelectric ceramics, and amplifies the front and rear radiation cover blocks by acoustic impedance matching.



Parameter

Pzt6 20kHz Ultrasonic Welding Piezoelectric Transducer for High Power Welding

Item No. Connect screw (Size) Capacitance Input power (W) Max. Amplitude (um)


Yellow Grey Black

5520-4Z M18 X 1 10000-11000 10500-11500 14300-20000 2000 8
5020-6Z M18 X 1.5 18500-20000 / 22500-25000 2000 8
5020-4Z M18 X 1.5 11000-13000 13000-15000 15000-17000 1500 8
5020-2Z M18 X 1.5 6000-6500 6500-7000 8000-9000 800 6
4020-4Z 1/2-20UNF 9000-10000 9500-11000 / 900 6
4020-2Z 1/2-20UNF / 4800-5500 / 500 5
5020-4DS 1/2-20UNF 11000-12000 12000-13500 / 1300 8
5020-4D 1/2-20UNF 11000-12000 12300-13500 13600-14600 1500 8
5020-6D 1/2-20UNF 20000-22000 / 25500-26500 2000 10
4020-6D 1/2-20UNF 13500-15000 / / 1500 10
4020-4D 1/2-20UNF 8500-10500 10000-11000 10500-11500 900 8
3020-6D 3/8-24UNF 8000-9000 / / 600 9


 ultrasonic welding converter




Advantage

    1. The piezoelectric ceramic chip adopts imported parts, and can give a strong and stable output.
    2. High efficiency, high mechanical quality factor, obtaining high electric-acoustic conversion efficiency work at the resonance     frequency points.
    3. Large amplitude: optimization design by computer , vibration speed ratio is high .
    4. Large power,Under the action of prestressed screw, the energy of the piezoelectric ceramic to get maximum play;
    5. Good heat resistance, small harmonic impedance, low calorific value, using temperature range is wide.


Service and shipment

l Warranty one year for transducer.

l You can contact us for technical inquiry any time.

l We supply OEM service for oversea customer, also will keep Confidentiality for our customers.

l We supply customized products service for small quantity also.

l Shipment by FED-EX /DHL











 换能器2






FAQ:

1. What’s the warranty of your transducer and equipment.

Our warranty is one year for both transducer and equipment, but we can supply you Components free even out of warranty.



2. What’s frequency transducer you supply?

We can supply transducer from 15Khz to 70Khz depending on your requirements or application.



3. What’s the using life of your transducer?

Under correct working environment, our transducer can work 5~10 years



4. What’s the using life of your generator?

Under correct working environment, our generator can work 8~10 years



5. Does your products exported before?

Yes, our transducer exported to USA,south America, EUROPE, Middle East, and Russia for many years.



6. Do you supply sample for test?

Yes, you can order on sample from our company first , we will return you the sample cost when you order in the future.



7. Do you supply OEM work?

Yes, welcome to ask for OEM cooperation , we have OEM produced for USA and German customer for many years, also hope to get more OEM order to enlarge our business.



8. how to customize transducer ?

For two ways for customize transducer, first way, you supply me sample , I will customize depending on your sample. Second, you give us all parameter and drawing , we can customize depending on your information.



9. Can you generator connect to PC, PLC or internet .

Yes, we have different version generator, it can connect to PC. PLC, even internet.Also the price different.



10. What we can get if the transducer/equipment broken during the warranty?

All our transducer and generator tested at least 48 hours before shipment , so we have confidence to our equipment. Of course, We will send you new transducer/ equipment if it broken in the warranty. At the same time, we need to find the problem , why it broken so fast.





The upside-down trumpet type BRANSON TYPE (Larger amplitude and bigger output power, high-sound intensity and high-power density application)

Item No.

Connect screw (Size)

Ceramic diameter (mm)

Quantity of Ceramic (pc)

Resonance frequency (khz)

Resistance (Ω)

Capacitance

Input power (W)

Max. Amplitude (um)







Yellow

Grey

Black



7015-4D

M20 X 1.5

70

4

15

15

12500-14000

/

17000-19000

2600

11

6015-4D

M18 X 1.5

60

4

15

15

9000-10000

10000-11000

/

2200

11

6015-6D

1/2-20UNF

60

6

15

15

19000-20500

/

23000-25000

2600

11

5015-6D

1/2-20UNF

50

6

15

15

17000-19000

/

23000-25000

2000

11

5020-4DS

1/2-20UNF

50

4

20

15

11000-12000

12000-13500

/

1300

8

5020-4D

1/2-20UNF

50

4

20

15

11000-12000

12000-13500

14500-16000

1500

8

5020-6D

1/2-20UNF

50

6

20

15

19000-21000

/

22500-25000

2000

10

4020-6D

1/2-20UNF

40

6

20

15

13500-15000

/

/

1500

10

4020-4D

1/2-20UNF

40

4

20

15

8500-9300/9500-10500

10000-11000

10500-11500

900

8

3020-6D

3/8-24UNF

30

6

20

15

8000-9000

/

/

600

9

3030-4D

M8 or M8 X 1

30

4

30

20

/

6200-6900

/

800

5

3535-2D

M8 X 1

35

2

35

25

/

/

4500-5000

600

9

3535-4D

M8 X 1

35

4

35

20

6600-7400

/

9000-10000

1000

4

3035-4D

1/2-20UNF

30

4

35

20

5500-6200

/

9200-10200

800

4

2535-4D

M8

25

4

35

25

3900-4300

/

/

500

4

3040-2D

M8

30

2

40

30

/

3400-3800

/

500

2

2540-4D

M8

25

4

40

30

4500-5300

/

/

500

3

2040-2D

M8

20

2

40

40

1100-1300

1150-1350

/

300

2
