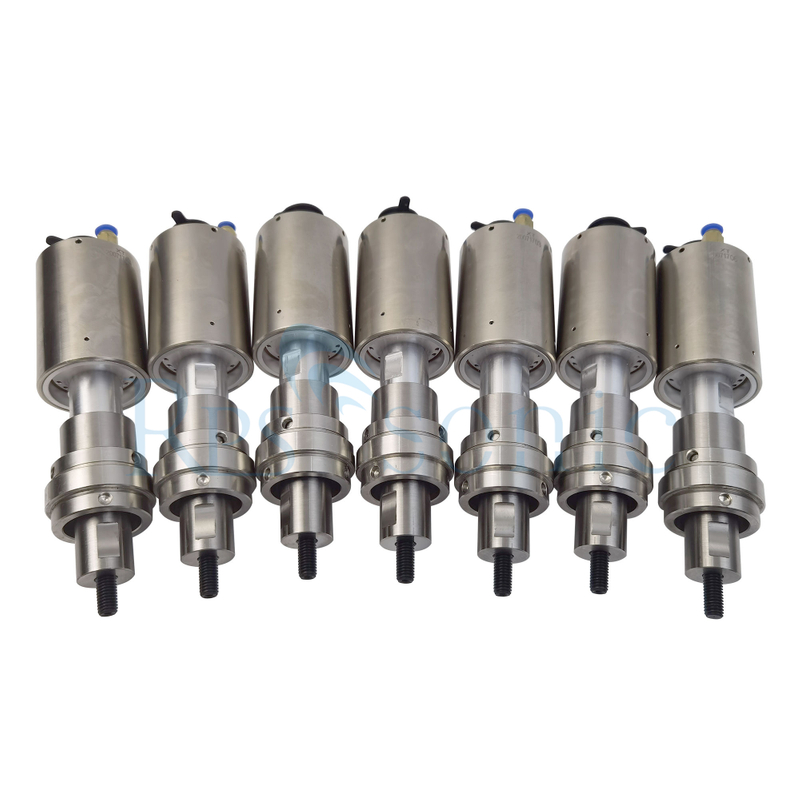

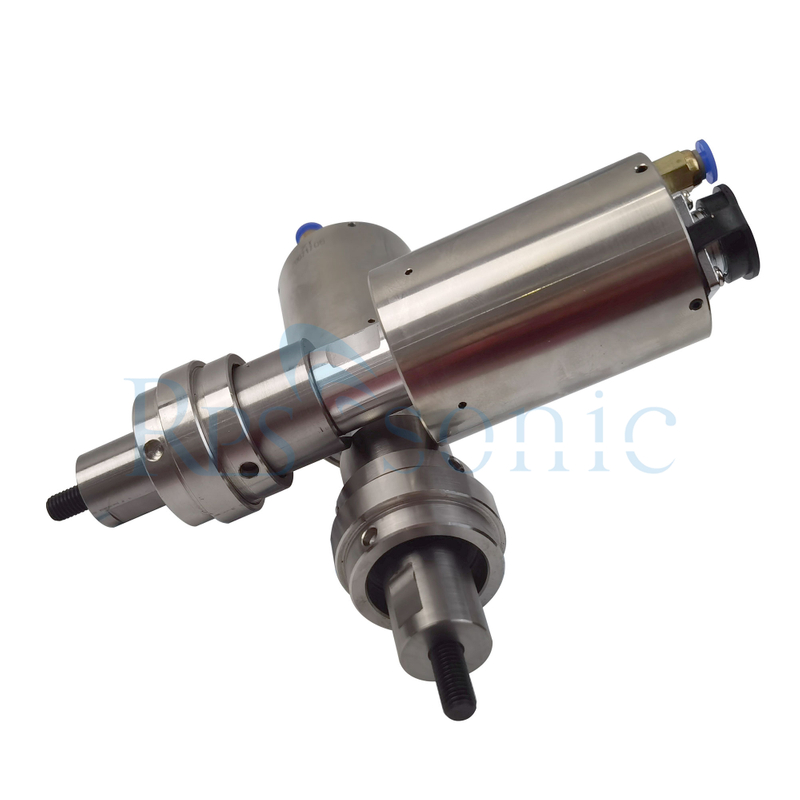

35kHZ Ultrasonic Welding Transducer with Titanium Booster with Closed Housing

35Khz ultrasonic transducer with hoursing for ultrasonic sewing and sealing
Frequency:
Power:
weight :
Availability:
Quantity:
  • 3535-4D

  • Rps-sonic

  • 3535-4D

35kHZ Ultrasonic Welding Transducer with Titanium Booster with Closed Housing


What is ultrasonic transducer?

    Ultrasonic transducers are piezoelectric ceramics that resonate at ultrasonic frequencies and convert electrical signals into mechanical vibrations by the piezoelectric effect of the material. When the transducer is used as a transmitter, the electrical oscillating signal sent from the excitation source will cause a change in the electric or magnetic field in the electrical energy storage element of the transducer, which changes the mechanical vibration system of the transducer through some effort. A driving force is generated to cause it to vibrate, thereby propelling themedium in contact with the mechanical vibration system of the transducer to vibrate and radiate sound waves into the medium.


What's the relationship bewteen Frequencies and Amplitudes?

When an AC voltage is applied, piezo elements begin to oscillate. The extremely fast response in the microsecond range and below allow for ultrasound generation with frequencies of up to 20 MHz.


Ultrasonic applications can be classified in sensor applications and power ultrasound where the energy densities are higher and frequencies range from 20 to 800 kHz.


Power ultrasound can be used in medical applications, e.g. to crush kidney stones and for removing dental plaque, and industrial processes, such as cleaning and welding or bonding.


QQ图片20190918090054





Parameter


Frequency

35 khz

Output power

1200 watt

Joint bolt

M8*1.25

Ceramic disc Diameter

25 mm

Quantity of Ceramic discs

4 pcs

Capacitance

4nF

Amplitude

10um

Application

welding machine



4.Advantages:

1. Heat resistance: It is made of high quality materials, has good heat resistance, low resonance impedance and low heat generation.

2. Strong structure: It is fastened with high quality standard steel bolts and has high reliability.

3. Electrical parameters: unique production process, digital equipment processing and assembly, high parameter performance and good consistency.

35Khz ultrasonic welding transducer09_副本

Service and shipment

▏Warranty one year for transducer.

▏You can cantact us for technical inquiry any time.

▏We supply OEM service for oversea customer, also will keep Confidentiality for our customers.

▏Shipment by FED-EX/DHL







 The columnar type NTK TYPE (stabilized power and high reliablity widely application)

Item No.

Connect screw (Size)

Ceramic diameter (mm)

Quantity of Ceramic (pc)

Resonance frequency (khz)

Resistance (Ω)

Capacitance

Input power (W)

Max. Amplitude (um)







Yellow

Grey

Black



7015-4Z

M20 X 1.5

70

4

15

15

12500-14000

/

17000-19000

2600

10

6015-4Z

M20 X 1.5 or M16 X 1

60

4

15

15

8000-10000

10000-12000

12500-13500

2200

10

6015-6Z

M20 X 1.5

60

6

15

15

14000-16000

/

19500-21000

2600

10

5015-4Z

M18 X 1.5

50

4

15

15

12000-13000

13000-14300

15000-17000

1500

8

4015-4Z

M16 X 1

40

4

15

15

10000-11000

10500-11500


700

8

5520-4Z

M18 X 1

55

4

20

15

10000-11000

10500-11500

14300-20000

2000

8

5020-6Z

M18 X 1.5

50

6

20

15

18500-20000

/

22500-25000

2000

8

5020-4Z

M18 X 1.5

50

4

20

15

11000-13000

13000-15000

15000-17000

1500

8

5020-2Z

M18 X 1.5

50

2

20

20

6000-6500

6500-7000

8000-9000

800

6

4020-4Z

1/2-20UNF

40

4

20

15

9000-10000

9500-11000

/

900

6

4020-2Z

1/2-20UNF

40

2

20

25

/

4800-5500

/

500

5

5025-2Z

M12 X 1

50

2

25

25

5000-5600

/

7000-8000

500

4

3828-2Z

1/2-20UNF

38

2

28

30

3800-4300

/

/

500

3

3828-4Z

1/2-20UNF

38

4

28

30

7600-8500

/

10500-12000

800

4

3028-2Z

3/8-24UNF

30

2

28

30

2700-3100

3400-3800

/

400

3

2528-4Z

M8 X 1

25

4

28

30

3900-4300

/

/

400

4

2528-2Z

M8 X 1 or 3/8-24UNF

25

2

28

35

1950-2200

2200-2500

/

300

3

3030-4Z

M10

30

4

30

30

/

6200-6900

/

700

4

3035-2Z

3/8-24UNF

30

2

35

40

2700-3100

/

/

500

2

3035-4Z

M10 X 1

30

4

35

30

5000-6200

/

/

800

3

2535-2Z

M8 X 1

25

2

35

40

1900-2200

/

/

400

2

2540-2Z

3/8-24UNF

25

2

40

40

/

2000-2300

/

500

2

3040-4Z

M10

30

4

40

30

5500-6200

/

/

1000

2

3050-4Z

M8

30

4

50

30

5500-6200

/

/

600

2

1560-2Z

M6 X 0.75

15

2

60

60

/

/

700-800

100

1

1070-2Z

M4

10

2

70

200

/

/

350-400

100

1













1. What’s the warranty of your generator

Our warranty is one year , but we can supply you Components free even out of warranty.


 2. What’s frequency generator you supply?

We can supply generatorr from 15Khz to 70Khz depending on your requirements or application.


 3. What’s the using life of your generator?

Under correct working environment, our generator can work 8~10 years


 4. Does your products exported before?

Yes, our Generator exported to USA,south America, EUROPE, Middle East, and Russia for many years.


 5. Do you supply OEM work?

Yes, welcome to ask for OEM cooperation , we have OEM produced for USA and German customer for many years, also hope to get more OEM order to enlarge our business.


 6. How to customize generator ?

You can buy the PCB board only, and you cuztomize the out box in your local place.


 7. Can you generator connect to PC, PLC or internet .

Yes, we have different version generator, it can connect to PC. PLC, even internet.Also the price different.


 8. What we can get if the transducer/equipment broken during the warranty?

All our transducer and generator tested at least 48 hours before shipment , so we have confidence to our equipment. Of course, We will send you new transducer/ equipment if it broken in the warranty. At the same time, we need to find the problem , why it broken so fast.
